Double layer roof sheet roll forming machine

Step-by-step forming, good forming effective, no deform; A full set of Mitsubishi Electric appliances, stable performance and low failure rate; One machine can produce two types, saving space and labor; Testing machines before shipping, Ship machine after customer’s confirmation of samples.
inquire now

Product Detail

Material	1. Thickness: 0.3--0.8mm 2. Material:PPGI
Power supply	380V, 50Hz, 3 phase
Capacity of power	Main power:7.5 kw
Speed	Forming speed: 30m/min
Total weight	Approx. 10tons-12 tons
Dimension	Approx.(LWH) 9.3m1.7m1.6m
Stands of rollers	IBR 18-20 rollers, corrugated 18-20 rollers
Cut style	Hydraulic cut

5T manual decoiler

1: Max width of raw material :as customer’s requirements

2: Capacity: 5000kgs

3: Inner diameter of coil: 450-600mm

Roll forming machine

1. Material thickness range:0.3-0.8mm

2. Main motor power:7.5 kw

3. Hydraulic station: 3.7 kw

4. Speed: 30m/min

5. Quantity of rollers:18 -20 rollers

6. Material of rollers: 45# with chromed

7. Shaft Material and diameter: ￠75 mm, material is 45# forge steel

8. The body of machine: 350H，16mm panel.

9.Tolerance: 10m+-1.5mm

10. Way Of Drive: Chain

11. Control system: PLC

12.Material of cutter blade: Cr12 mould steel with quenched treatment 58-62℃

13. Voltage: 380V/3Phase/50HZ

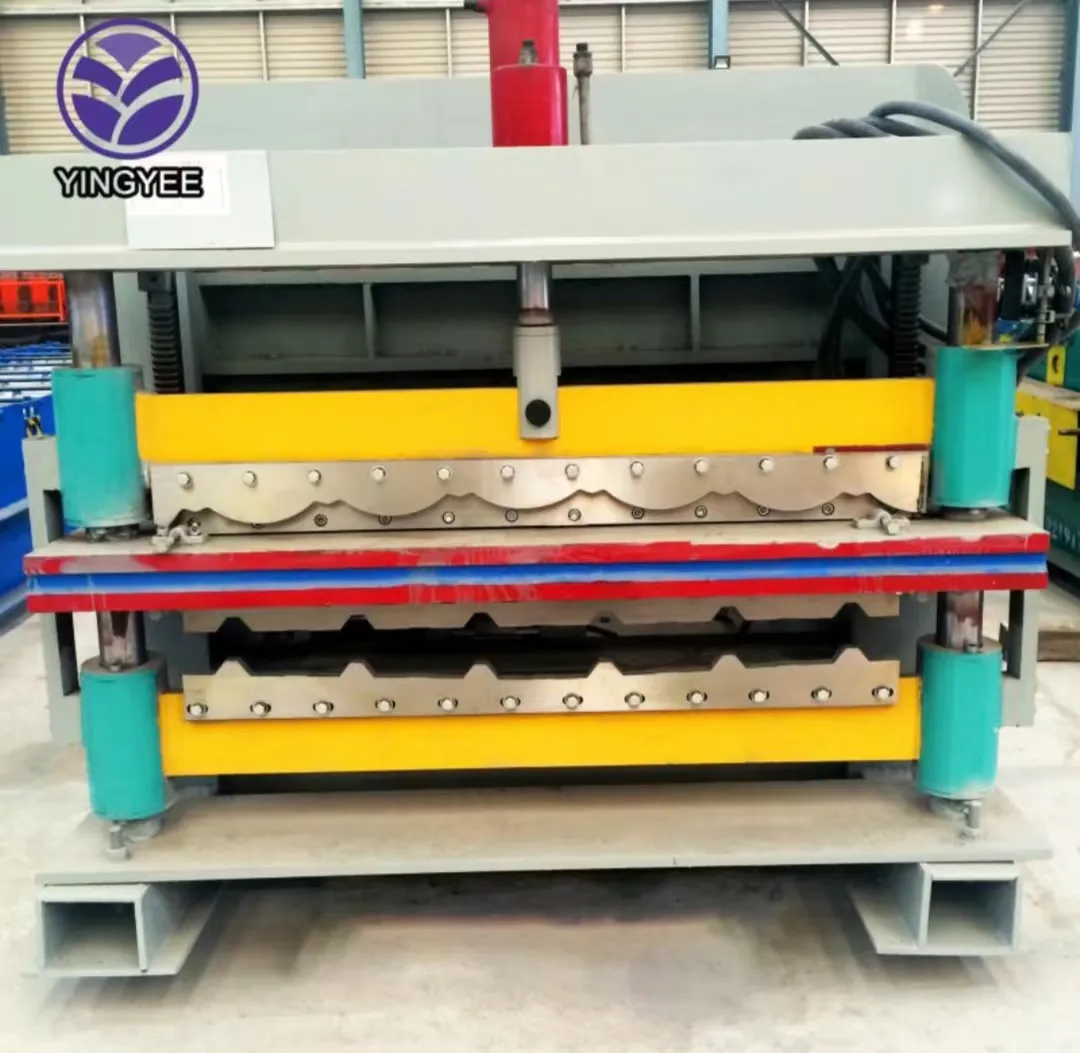

Cutting (hydraulic guide)	1. Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start. 2.Material of blade: Cr12 mould steel with quenched treatment58-62℃ 3.Length measuring: Automatic length measuring 4.Tolerance of length: 10+/- 1.5mm
PLC control system	1.Voltage, Frequency, Phase: 380V, 50 Hz, 3Phase 2.Automatic length measurement: 3.Automatic quantity measurement 4.Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved 5.Length inaccuracy can be amended easily 6.Control panel: Button-type switch and touch screen 7.Unit of length: millimeter (switched on the control panel)
Weight	About 10tons-12 tons
Dimension	Arrox：9.3m1.7m1.6m
