1. Equipment specifications and main technical parameters
1.1 Production line specifications 0.4-3.0×1250mm
1.2 Uncoiling width range 500-1500mm
1.3 Material thickness 0.4-3.0mm
1.4 Frame material Q235
1.5 Maximum roll weight 10T
1.6 Inner diameter of steel coil 508-610mm
1.7 Outer diameter of steel coil ≤1700mm
1.8 Production line speed 55-58m/min
1.9 Cutting frequency 25-28 sheets (1000×2000mm shall prevail)
1.10 Cutting length range 500-6000mm
1.11 Sizing accuracy ±0.5/mm
1.12 Diagonal accuracy ±0.5/mm
1.13 Total power ≈85kw (normal working power 75kw)
1.14 Unwinding direction facing the console from left to right
1.15 Unit area ≈25m×6.0m (used as standard)
1.16 power supply 380v/50hz/3 phase(or customized)
2. Equipmentcomponent
10 ton Hydraulic single-arm uncoiler, hydraulic feeding trolley, support arm |
1 |

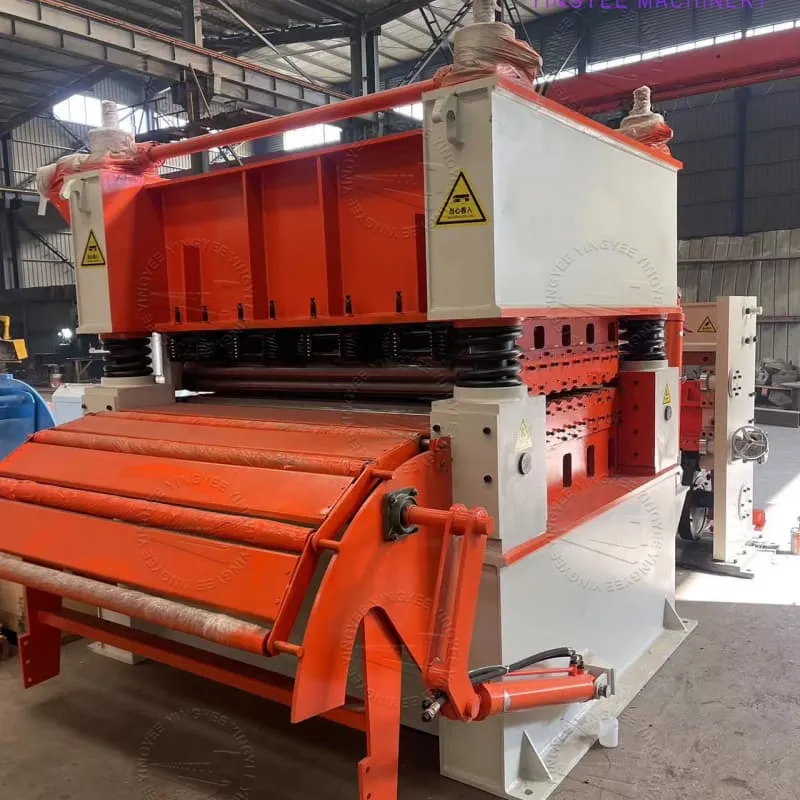

15-axis four-Layer precision leveling machine |
1 |
Rectify device |
1 |
Nine-roller servo-straighten machine |
1 |
High-speed pneumatic shearing machine |
1 |
Two-section structure conveyor belt |
1 |

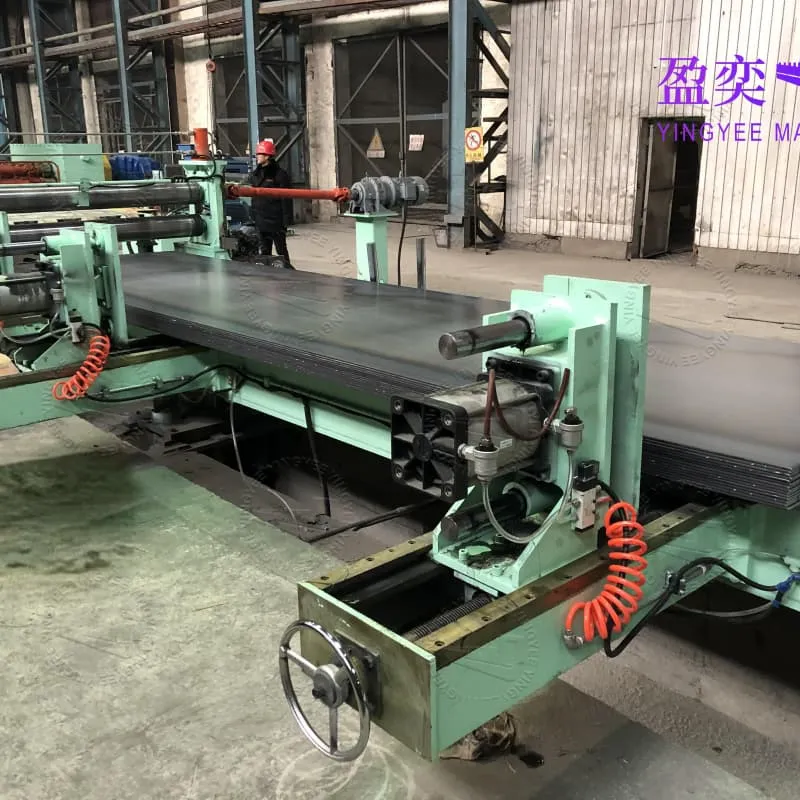

Automatic hydraulic stacker and lifting machine |
1 |
Outting sheet platform 6000mm |
1 |
Electronic control system |
1 |
Hydraulic oil station |
1 |
Fan |
1 |
