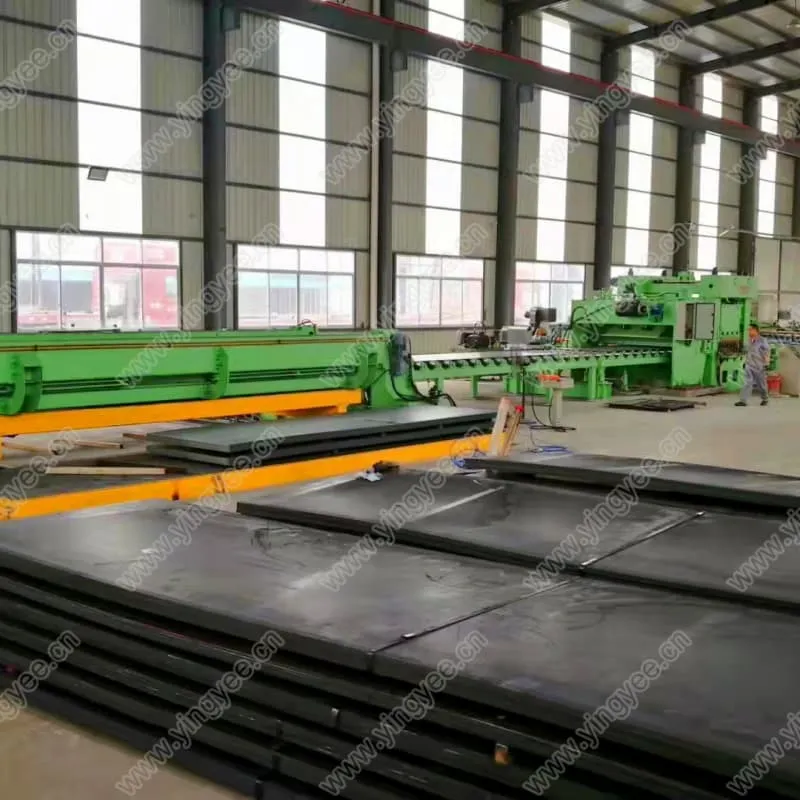

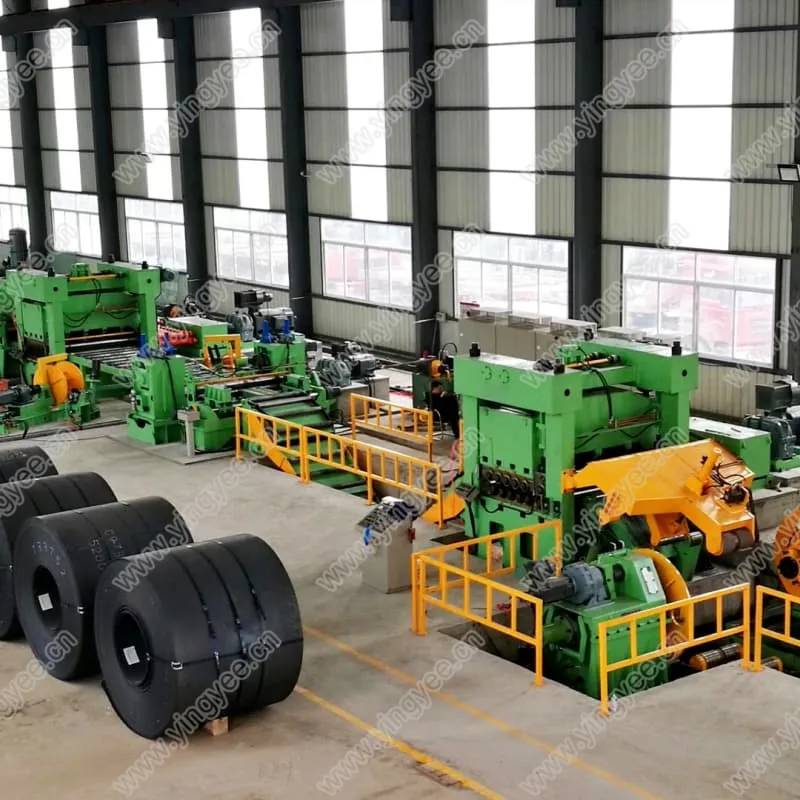

Cut to length line for metal coils with high accuracy. The length of the whole line is about 25m, and a buffer pit is needed.
This production line can produce galvanized, hot-rolled, and stainless steel open plates with a thickness of 0.3mm-3mm and a maximum width of 1500, with the shortest plate length being 500mm. The longest conveyor belt length can be customized.
According to different thicknesses, you can choose 15-roller/double-layer, four-layer, and six-layer leveling machines, and the leveling effect is better.
Brand-name electrical appliances such as Mitsubishi, Yaskawa, etc., are of reliable quality and good after-sales.
10 ton Hydraulic decoiler, hydraulic feeding trolley |
1 |
15-axis four-Layer precision leveling machine |
1 |
Rectify device |
1 |

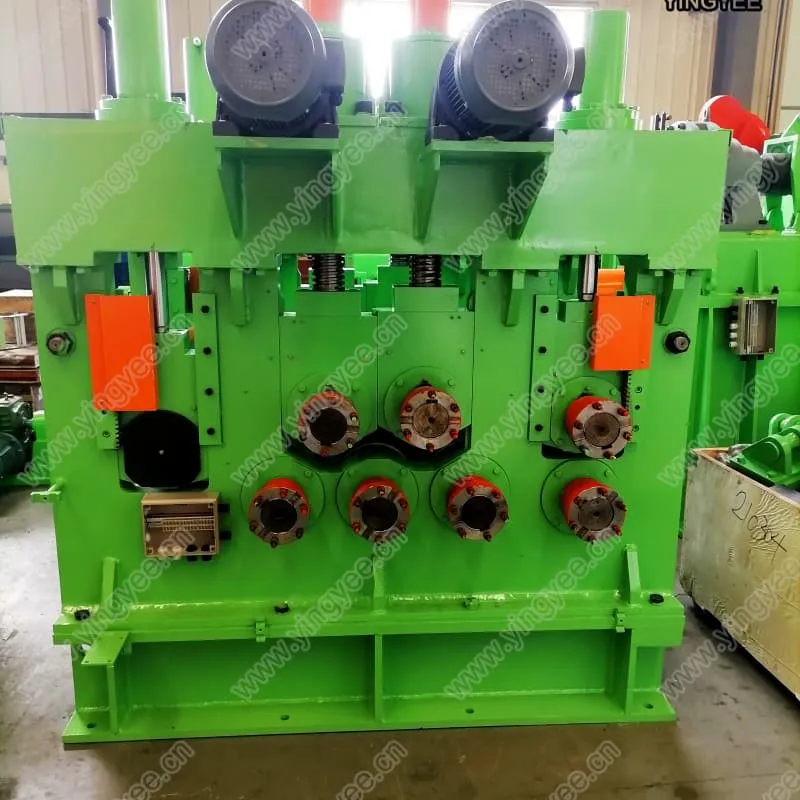

Nine-roller servo-straighten machine |
1 |
High-speed pneumatic shearing machine |
1 |
Two-section structure conveyor belt |
1 |
Automatic hydraulic stacker and lifting machine |
1 |
Outting sheet platform |
1 |
Electronic control system |
1 |
Hydraulic oil station |
1 |
Fan |
1 |
