Product Description
Working process: Decoiler – Feeding guide – Straighteing – Main roll forming machine – PLC control system – Servo tracking cutting – Receiving table Technical parameters:
Raw material | PPGI, GI, Aluminum coils |
Material thickness range | 0.3-1mm |
Forming speed | 40-45m/min(without punching) |
Rollers | 10 rows |
Material of forming rollers | Cr12 |
Shaft diameter and material | 40mm, material is 40#steel |
Controlling system | PLC |
Cutting mode | Servo tracking cutting |
Material of cutting blade | Cr12 |
Voltage | 380V/3Phase/50Hz or at your requirement |
Main motor power | 5.5KW |
Hydraulic station power | 3KW |
Way of driven | Gear |

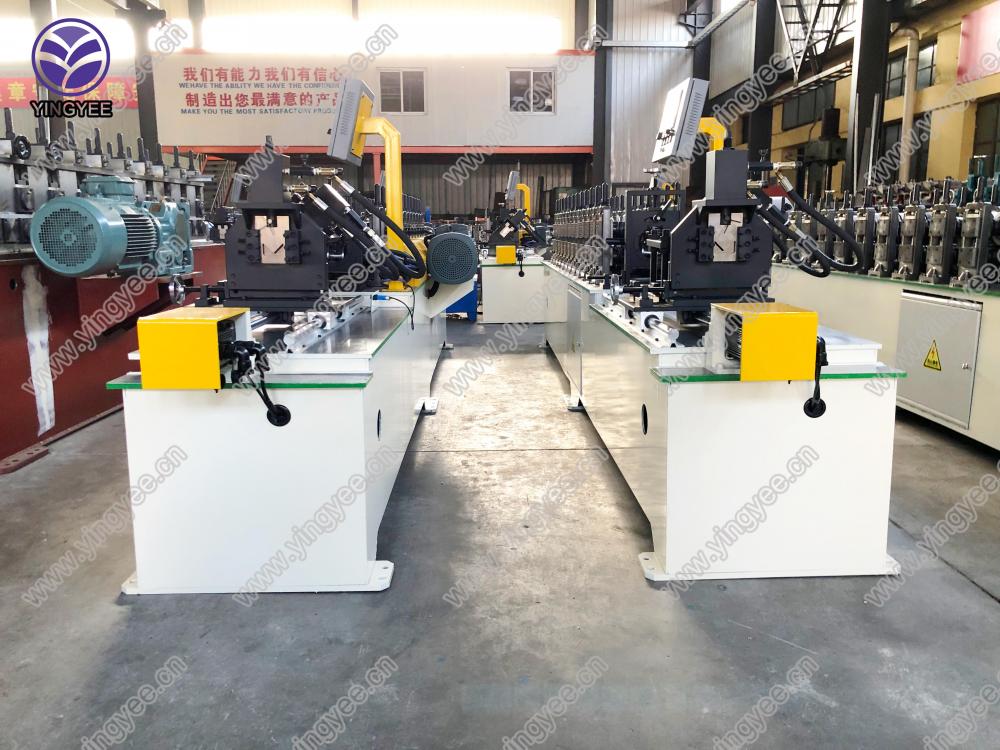

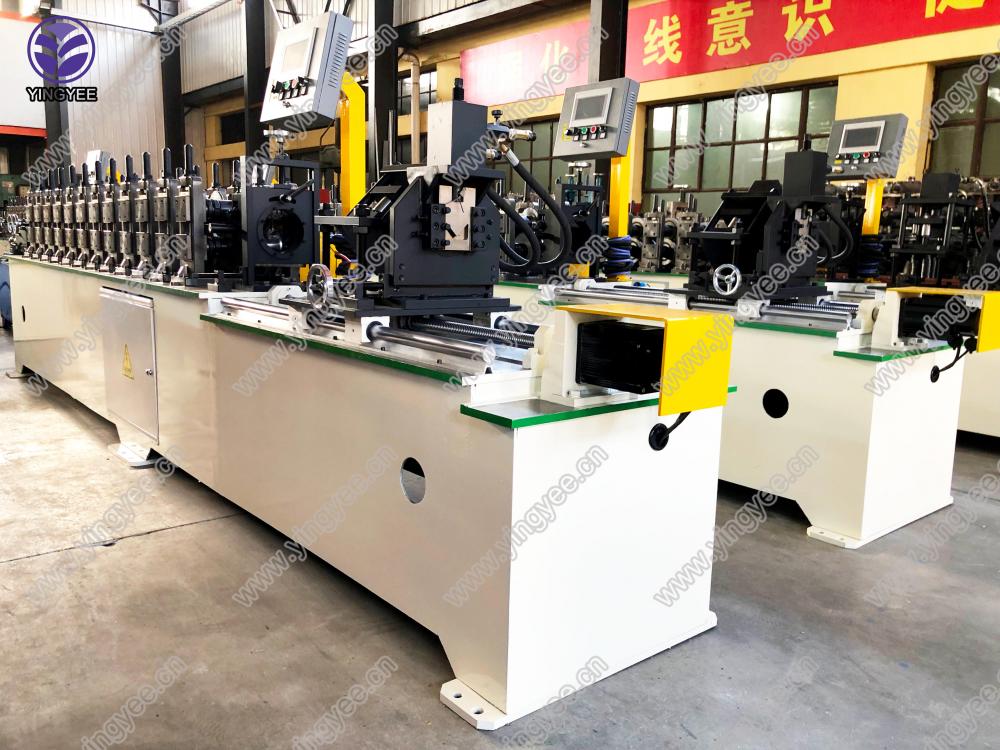

Pictures of machine:
