Roller shutter door with small hole machine

Roller shutter door with small hole roll forming machine with mature technology, high accuracy work.

roll forming line
roll forming line machine
roll forming machine price
roll forming process
types of roll forming machine
inquire now

Product Detail

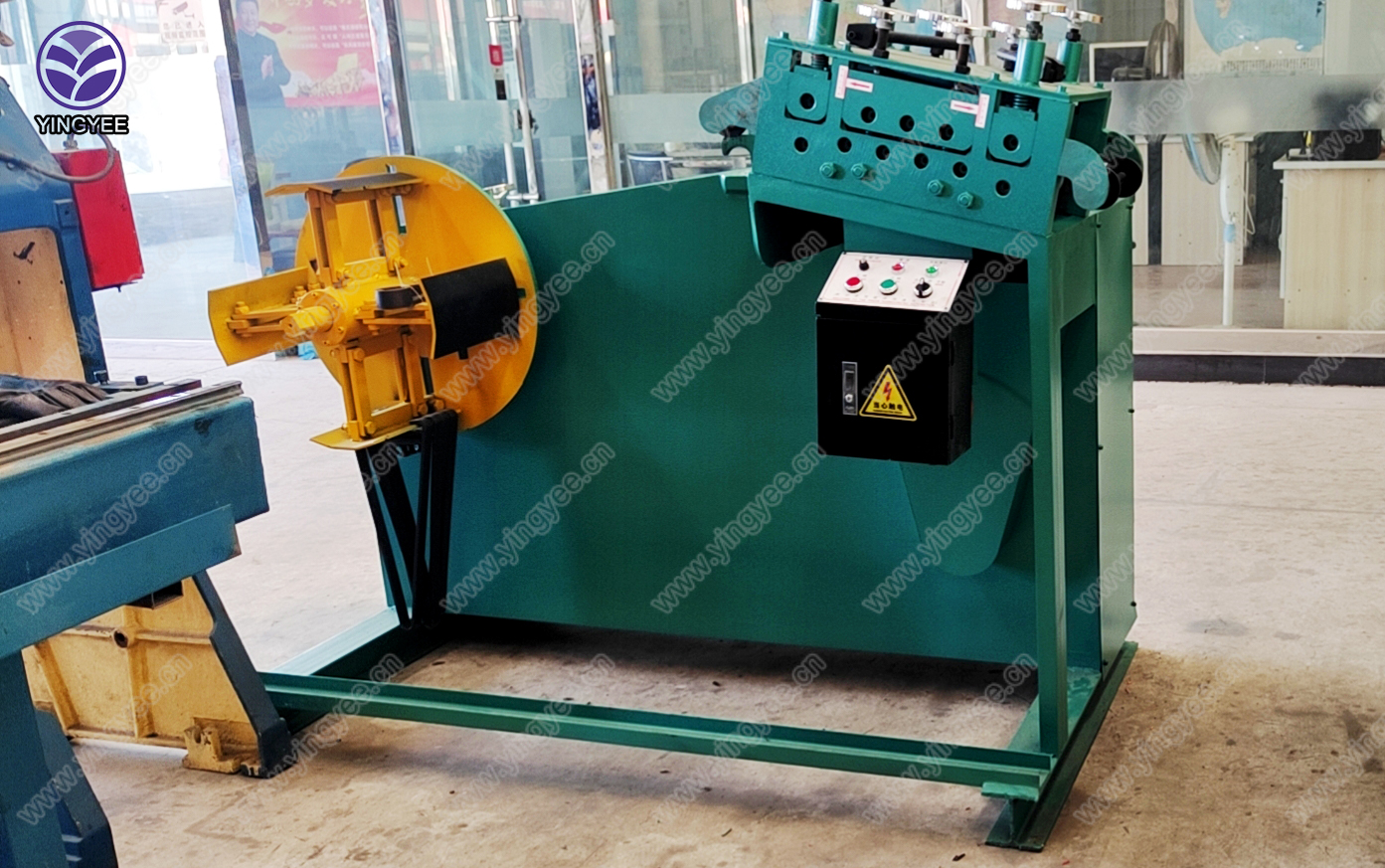

For this machine, it begins with a 3 tons manual decoiler with leveling part, then it's the punching machine with servo feeder, the servo feeder's function is to make sure the materials consistent length, accurate punchng position and space.

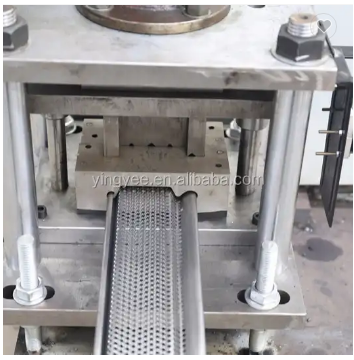

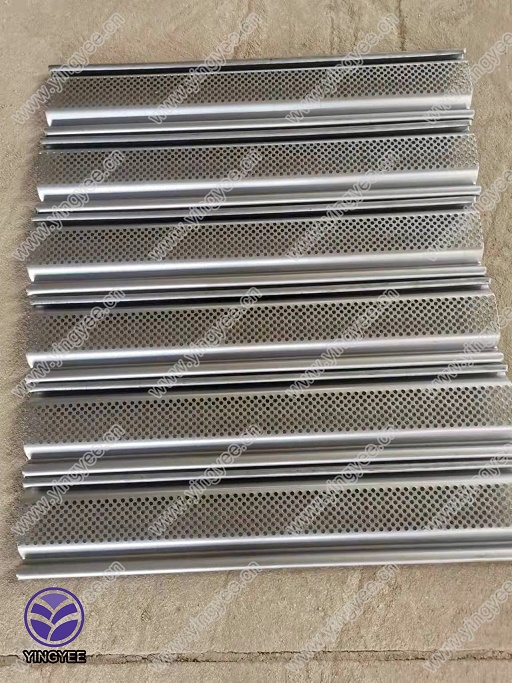

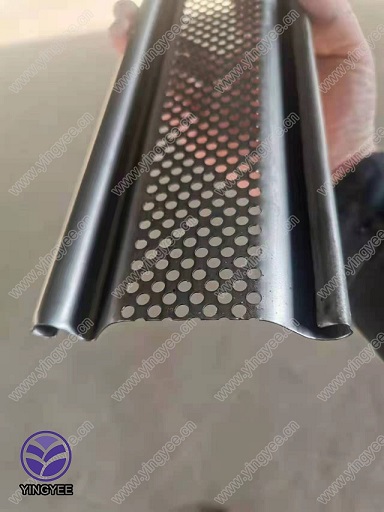

final product with holes

Basic specification of roller shutter door machine

No.	Items	Spec:
1	Material	1.Thickness:max 1.0 mm 2.Material: galvanized steel strips
2	Power supply	380V, 50Hz, 3 phase
3	Capacity of power	Main power: 7.5 kw
4	Speed	Forming speed: 20 m/min
5	Stands of rollers	About 12 rollers
6	Cut style	Hydraulic cutting system

Name

Description

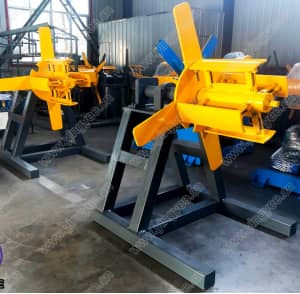

3 tons manual decoiler

Inner dia: Ø440mm– Ø560mm

Max input feeding: 600mm

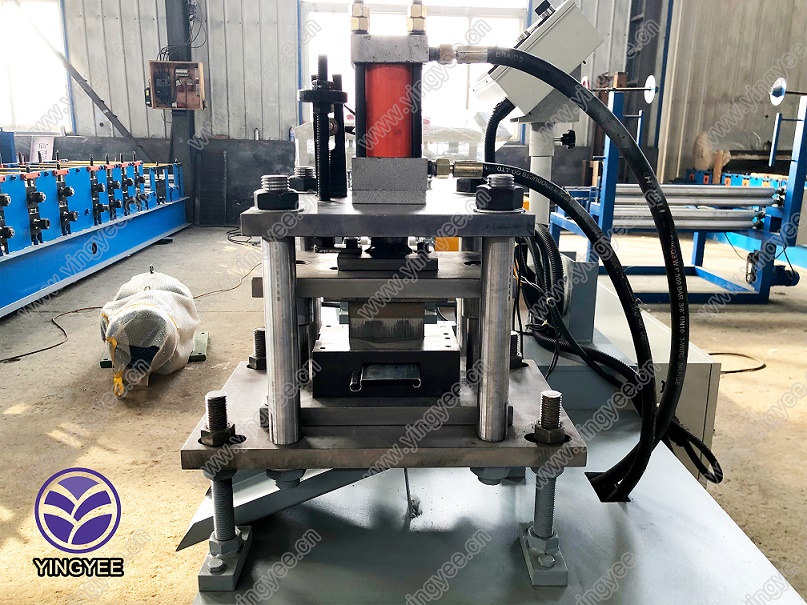

25T Punching machine with servo feeder

Punch 70 times per minute

Feeding length 64mm each time

Include one set of mould

Material Feeding and Guiding

Guiding system consists of several rollers, and the width between them could control by the manual rollers.

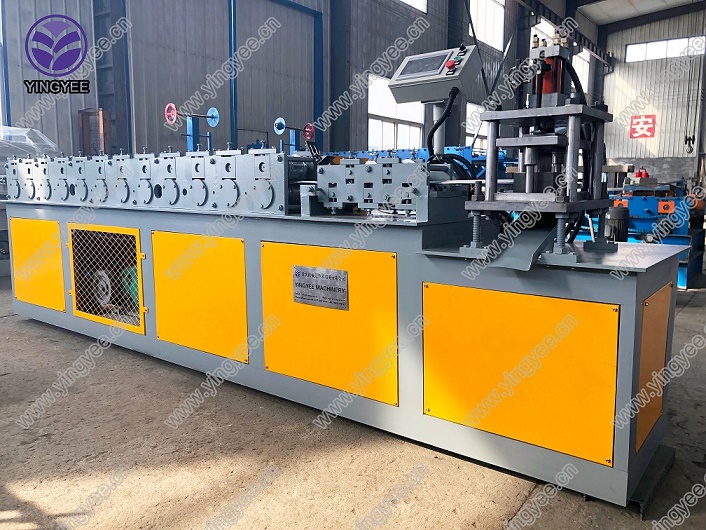

Forming part

1.Matching material: Galvanized steel

2.Material thickness range: max 1.0 mm

3.Main motor power: 7.5kw

4.Forming speed: 20 m /min

5.Quantity of stands: about 12 rollers

6.Shaft Material and diameter:￠50mm, 45# steel .

7.Tolerance: 3mm+/-1.0mm

8.Way of drive: 1.0 inch single chain driving

9.Controlling system: PLC system

10.Material of forming rollers: 45# steel ,heat treatment and chromed

11.Material of cutter blade: Cr 12 mould steel with quenched treatment HRC58-62

12.Voltage: 380V/ 3phase/ 50 Hz

Hydraulic system

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment ：The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Power of the oil pump:3kw Hydraulic oil :40#

PLC control

Automatic length measurement Automatic quantity measurement

Computer used to control length & quantity. Machine

will automatically cut to length and stop when required quantity is achieved

Hydraulic Cutting

1.Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.

2.Material of blade: CR12with heat treatment

3.Length measuring: Automatic length measuring

Related Products
Electric Rail Roll Forming Machine DIN Rail roll forming machine

Automatic production of Electric DIN Rail, use galvanized strip to produce.

Full automatic storage box beam roll forming machine

Automatic size changing

Automatic folding

automatic transfer and combining

Line speed: 20m/min

Only need one worker to operate.

Automatic size changing storage beam roll forming machine with auto folding and combine system

One machine can do different size of beam, save space, save worker, save money, full automatic.

Automatic stack roof drip edge roll forming machine high speed

Drip eaves refer to a type of building structure in the construction of a house that is designed
