Processes and components:
3 ton manual de-coiler x1 set
Feeding guide system x1 set

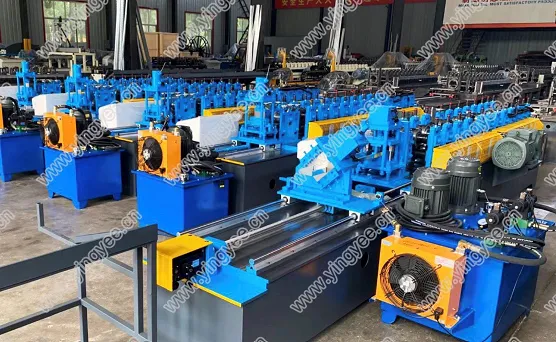

Main roll forming machine x1 sets
Hydraulic cutting and punching x1 sets
Hydraulic station x1 set
PLC Control system x1 set
Run-out table x1 set
Parameters and specification:
Capacity: 3 tons
Diameter range: 300-450mm
Way of de-coiling: passive
Input width adjustable,Guiding system consists of several rollers, and the width between them could control by the manual rollers.
(1)Matching material: Galvanized or aluminum
(2)Material thickness range: 0.6-1.0mm
(3)Forming speed: 0-40m/min, no stop cutting
(4)Main power: 5.5KW,with reducer
(5)Quantity of roller:10-13 rollers
(6)Shaft Material and diameter: ¢50 mm, material is 40# steel
(7)The way of driving:Chain driven
(8)Controlling system: PLC,The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
(9)Voltage: 380V/ 3phase/ 50 Hz
(10) Servo motor: shanghai Zoncn
(11)Material of forming rollers:40#steel coated with chromed
(12)Cutting :Material of cutter blade: Cr 12 mould steel with quenched treatment,HRC 58-62℃,
Tolerance of length: +/- 1.5mm
Length measuring: Automatic length measuring
Control: by setting on the PLC system
