Name: High-Quality Roller Shutter Machines for Sale | Reliable Metal Roller Shutter Machine Suppliers in China
Brand: Automatic Purlin & Roof Sheet Roll Forming Machine Manufacturer
Availability: InStock
Rating: 4.5 (89 reviews)

ကောင်းမွန်သော PU roller ရှပ်တာတံခါးလိပ်ဖွဲ့စည်းခြင်းစက်

PU roller shutter door roll စက်ဖွဲ့စည်းရာတွင် ရင့်ကျက်သောနည်းပညာနှင့် စျေးနှုန်းကောင်းမွန်ပါသည်။

သတ္တုကြိတ်စက် ရှပ်တာစက် ပေးသွင်းသူများ
roller shutter door roll forming machine in china
roller shutter machine for sale
ယခုမေးမြန်းပါ။

ထုတ်ကုန်အသေးစိတ်

ဤစက်၏စီးဆင်းမှုသည်ဤသို့ဖြစ်သည်

Put the steel coil on the un-coiler—→Guiding—→Warm box(heathen the material)—→ Roll-forming Machine—→Injection machine —→ roll forming machine—→Warm box(help expanding) —→Adjusting device —→ Punching device----Flying saw cutting—→Run out table

ပစ္စည်း	1. Thickness: 0.4-0.8mm; 2. Effective width：55mm
Power supply	380V, 50Hz, 3 phase(Or customized)
အရှိန်	လိုင်းအမြန်နှုန်း- 8-12m/min
အတိုင်းအတာ	အနီးစပ်ဆုံး (LWH) 30360mm*2010mm
ကြိတ်စက်များ	38 rollers
ညှပ်စတိုင်	ဖြတ်တောက်ပြီး ပျံနေတာ

အလှဆင်ကိရိယာ	3 တန် manual decoiler
လမ်းပြခြင်း။	စက်ထဲသို့ ပစ္စည်းကို အစာကျွေးရန်
အနွေးသေတ္တာ	l Lamp heaten material l Two heaten boxes: before and after injection foam
လိပ်များခြင်းအပိုင်း	l Roller material: GCr15 advanced steel, precision-machined, high frequency quenching HRC58-62 l Shaft Diameter: 65mm l Forming stations: 38 stations l Driven: gear box transmission l Cutting: Pneumatic following cutting l Working speed: 8 ~ 12m/min (ဆေးထိုးခြင်းနှင့်ဖြတ်တောက်ခြင်း)
ဆေးထိုးစက်	အမြှုပ်ထိုးသွင်းဘို့
၎aw ဖြတ်တောက်ခြင်း။	l Cutting method: the host automatically stops, then the scissors cut to a fixed length, after the cutting is completed, the host automatically runs and continues production l Shearing material: GCR12, heat treatment and quenching HRC58-62℃ l Cutting length monitoring: automatic cut to length l Cutting length error: +-1.5mm
PLC	l Control cabinet: Panasonic brand l Voltage: 380V 50HZ 3PH l Automatically controlled length cutting l Automatically count production l The computer controls the length and quantity, and the control equipment automatically stops cutting to ensure the set production quantity l Accurately modify the length error l Control method: touch screen and buttons coexist l Length unit: mm (length dimension on touch screen)

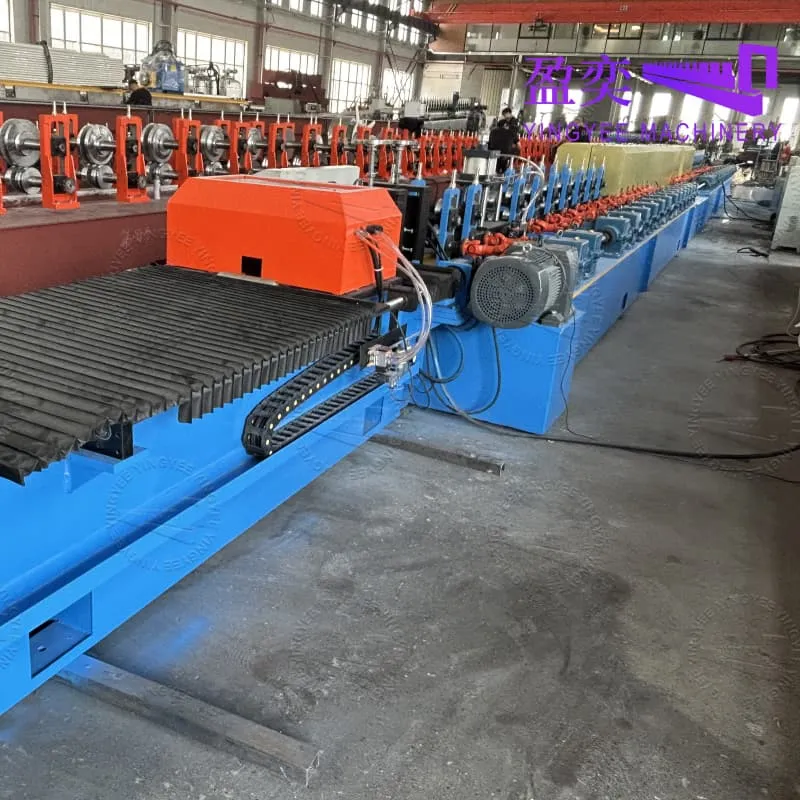

Roller shutter door machine
