ម៉ាស៊ីនបង្កើត PU Roller Shutter ល្អ។

ម៉ាស៊ីនបង្កើតទ្វាររមូរ PU មានបច្ចេកវិទ្យាចាស់ទុំ និងតម្លៃសមរម្យ។

អ្នកផ្គត់ផ្គង់ម៉ាស៊ីនក្រឡុកដែក
roller shutter door roll forming machine in china
roller shutter machine for sale
សាកសួរឥឡូវនេះ

ព័ត៌មានលម្អិតអំពីផលិតផល

លំហូរនៃម៉ាស៊ីននេះគឺ:

Put the steel coil on the un-coiler—→Guiding—→Warm box(heathen the material)—→ Roll-forming Machine—→Injection machine —→ roll forming machine—→Warm box(help expanding) —→Adjusting device —→ Punching device----Flying saw cutting—→Run out table

សម្ភារៈ	1. Thickness: 0.4-0.8mm; 2. Effective width：55mm
Power supply	380V, 50Hz, 3 phase(Or customized)
ល្បឿន	ល្បឿនបន្ទាត់: 8-12m / នាទី។
វិមាត្រ	ប្រហែល (LWH) 30360mm*2010mm
ជំហររបស់ rollers	38 rollers
Cut style	កាត់ឃើញហោះ

គ្រឿងតុបតែង	3 tons manual decoiler
ការណែនាំ	សម្រាប់ការផ្តល់អាហារដល់ម៉ាស៊ីន

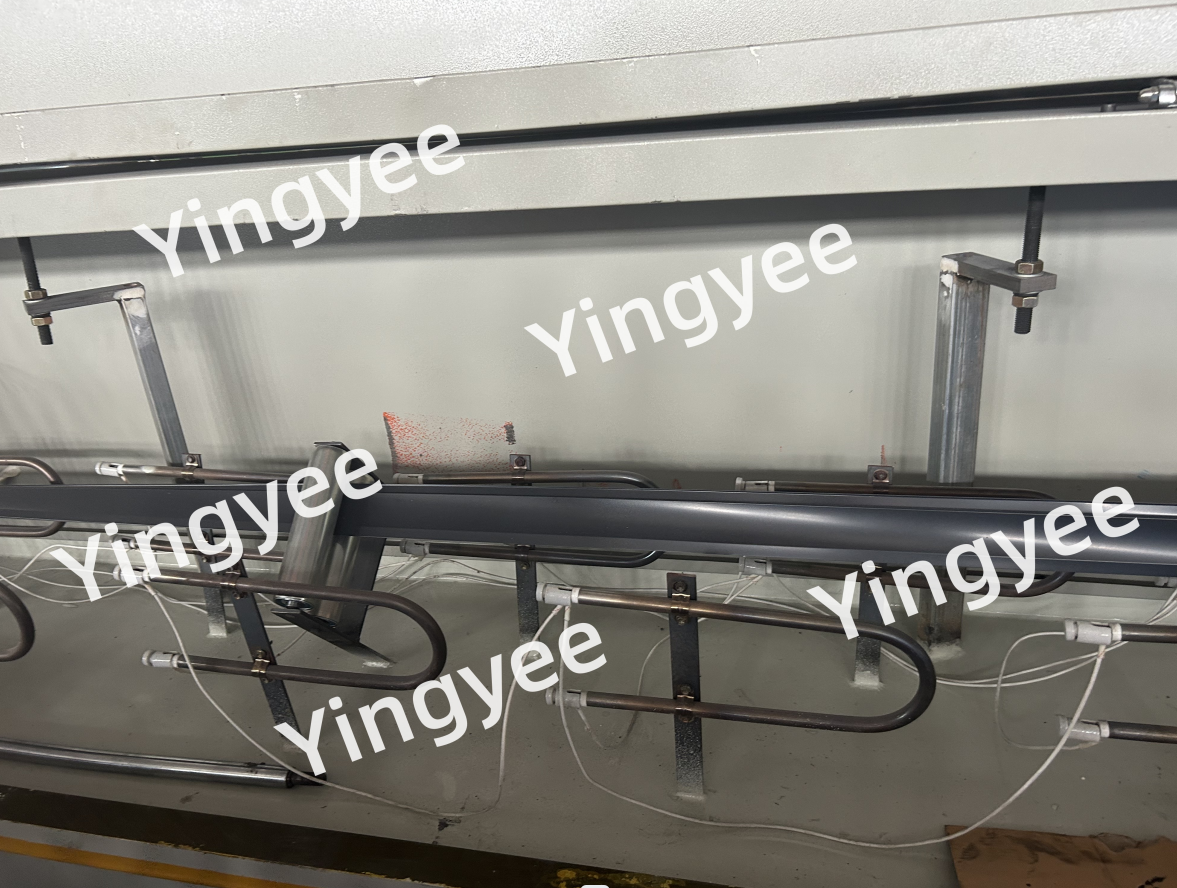

ប្រអប់ក្តៅ	l Lamp heaten material l Two heaten boxes: before and after injection foam
ផ្នែកបង្កើតរមៀល	l Roller material: GCr15 advanced steel, precision-machined, high frequency quenching HRC58-62 l Shaft Diameter: 65mm l Forming stations: 38 stations l Driven: gear box transmission l Cutting: Pneumatic following cutting l Working speed: 8 ~ 12m / នាទី (ជាមួយការចាក់និងកាត់)

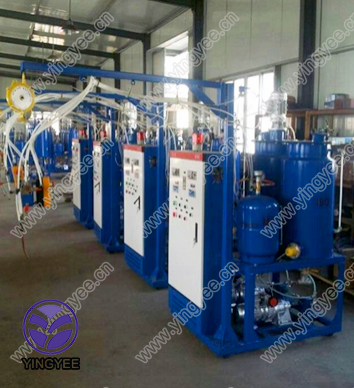

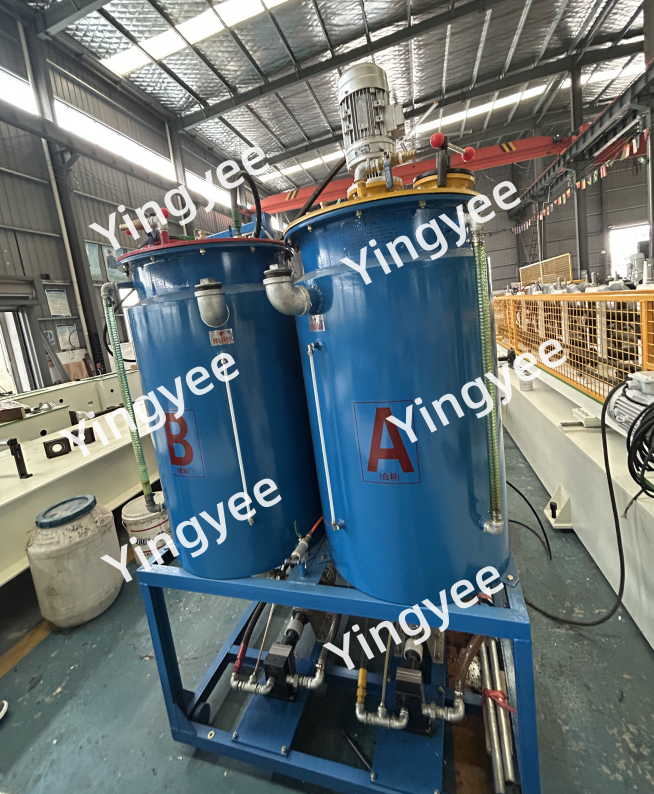

ម៉ាស៊ីនចាក់ថ្នាំ	សម្រាប់ការចាក់ពពុះ
ការហោះហើរ saw កាត់	l Cutting method: the host automatically stops, then the scissors cut to a fixed length, after the cutting is completed, the host automatically runs and continues production l Shearing material: GCR12, heat treatment and quenching HRC58-62℃ l Cutting length monitoring: automatic cut to length l Cutting length error: +-1.5mm
ភីអិលស៊ី	l Control cabinet: Panasonic brand l Voltage: 380V 50HZ 3PH l Automatically controlled length cutting l Automatically count production l The computer controls the length and quantity, and the control equipment automatically stops cutting to ensure the set production quantity l Accurately modify the length error l Control method: touch screen and buttons coexist l Length unit: mm (length dimension on touch screen)

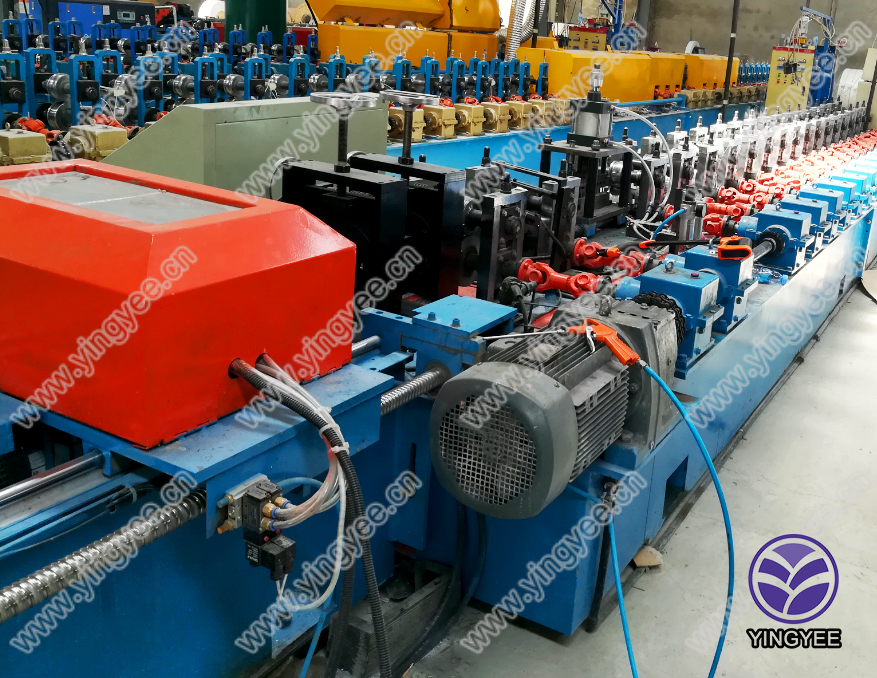

Roller shutter door machine
