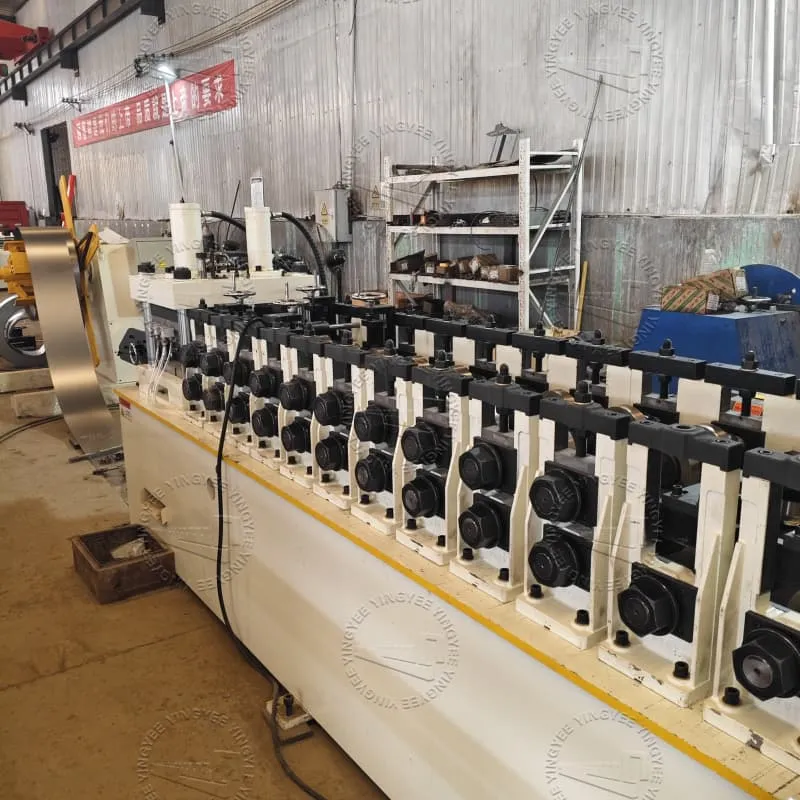

5 tons manual decoiler

Inner diameter of material roll: φ500mm; material thickness 2.0mm

Carrying weight: ≤5T;

Spindle center height: 650mm,

Support form: inner tension

Power: 3kw+4kw

Traction and Leveling machine

Roller traction leveling

Leveling thickness: 2.0mm

Power: 5.5kw

Function: Make the material surface smoother

NCF-900Servo Feeder

Parameter:

(1) Feeding accuracy: ± 0.1mm/time

(2) Feeding method: Servo feeding control, multi-stage feeding

(3) Servo motor power: 4.4kw

(4) Length setting: the feeding length can be set to any length

Function: Ensure consistent feeding length and more accurate punching accuracy

Structure: Two pairs of traction rollers, traction roller reduction adjustment device, frame, servo motor, etc.

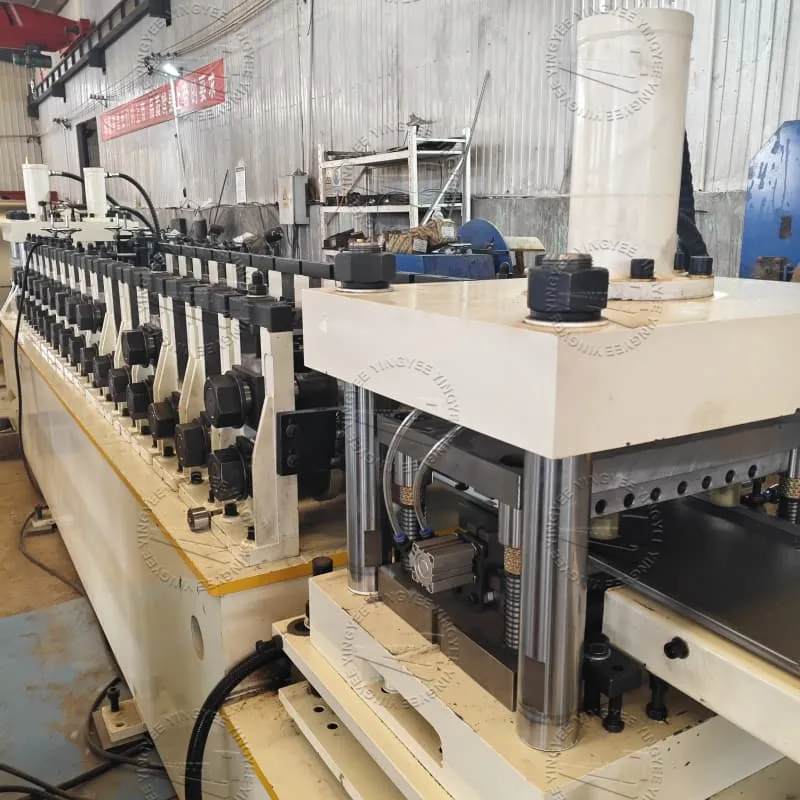

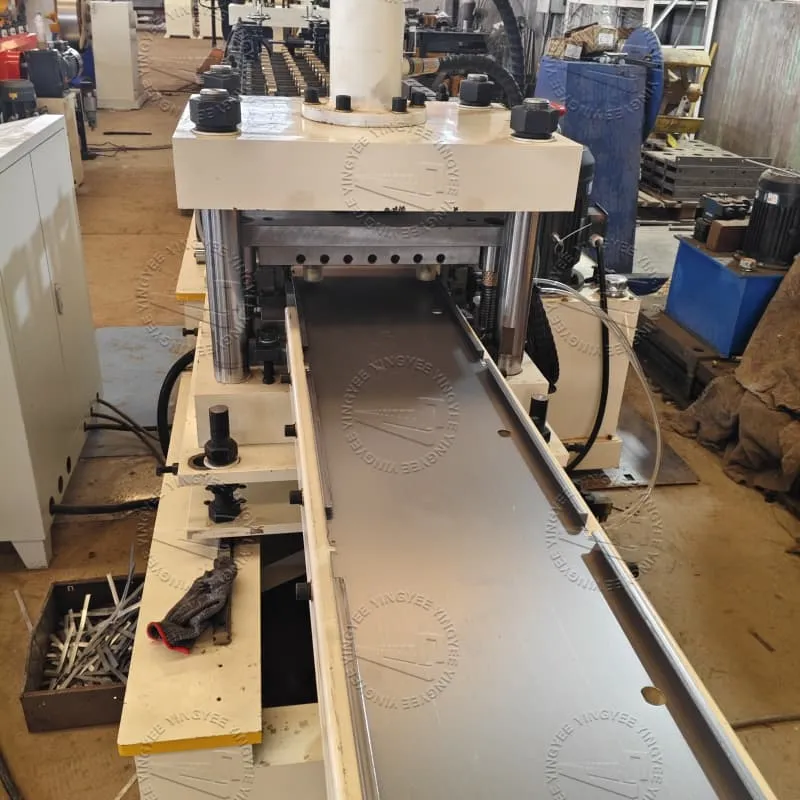

Punching system

(1)Cantilever type

(2)Hydraulic power: 7.5kw

(3)Material of mould : SKD11

(4)Two sets of molds for thin and thick materials, total 14 pairs of punching moulds:

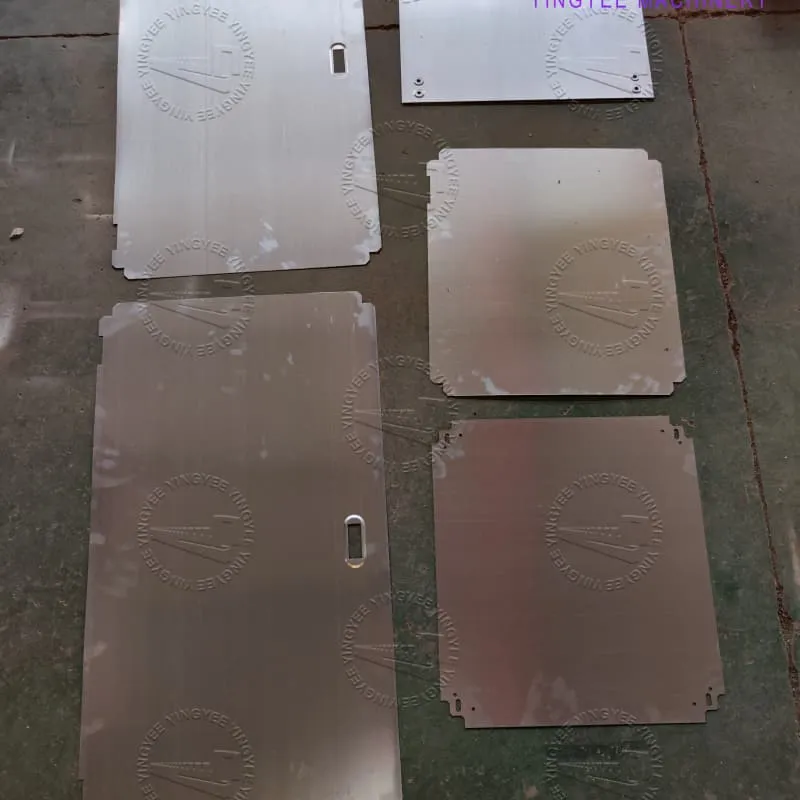

3 pairs for door panel and lock hole *2

2 pairs for back panel’s stretch hole *2

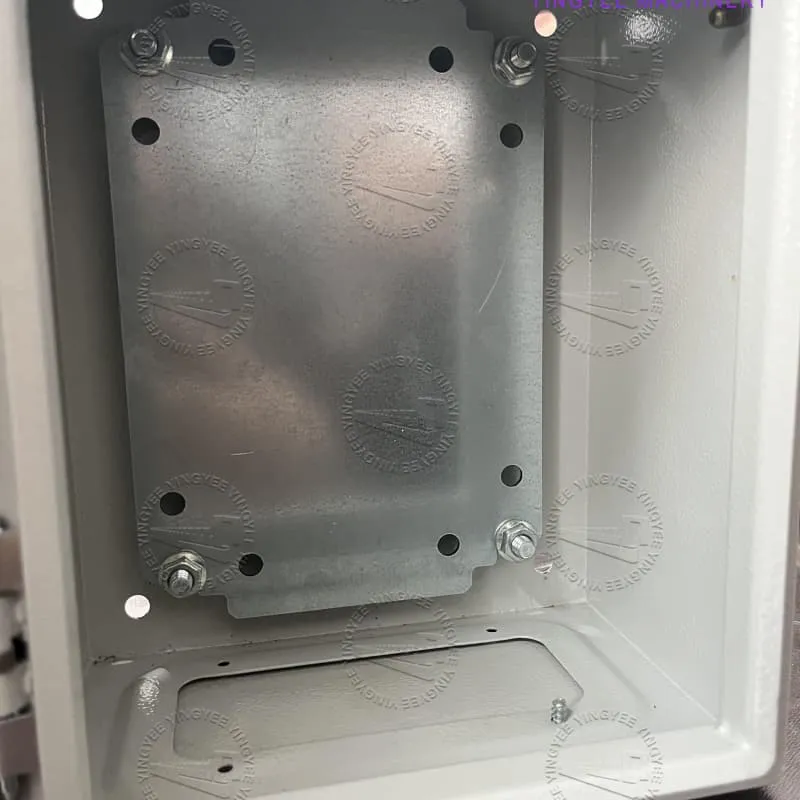

2 pairs for installation panel *2

Cutting system

Function: Cut the formed profile at the preset position;

Die material: SKD11

Motor power: 4.5kw

ramp unpowered drum

Outlet platform

ramp unpowered drum

Electrical control system

Adopt Delixi, Xinjie Electric Control

Human-machine interface, realize the interaction between human and PLC
