Electric Rail Roll Forming Machine DIN Rail roll forming machine

PRODUCTS

Product Detail

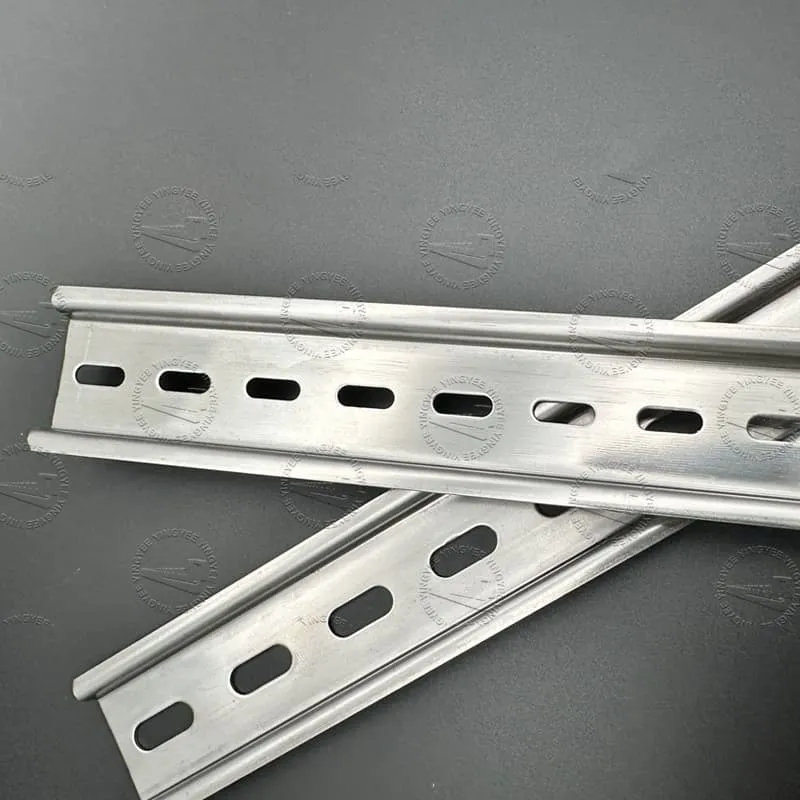

The importance of the size of the guide rail In the field of electrical installation, the guide rail is an important installation aid, which is used to support and fix various electrical equipment, electrical components, etc. The accuracy of the rail size directly affects the stability and reliability of the installation. The standardization of the size of the national standard electrical installation guide rail is of great significance to ensure the installation quality of electrical equipment.
2. The size specification of the national standard electrical installation guide rail The size specification of the national standard electrical installation guide rail mainly includes the requirements for the length, width, height, and size of the installation hole of the guide rail. In the national standard GB/T 14048.5-2008 "Low-voltage switchgear - Part 5: guide rail components", the dimensions of the guide rail are specified in detail to ensure that the guide rail can meet the fixed and supporting needs of the equipment during installation.

Manual - decoiler	1 set
Adjustable input equipment	1 set

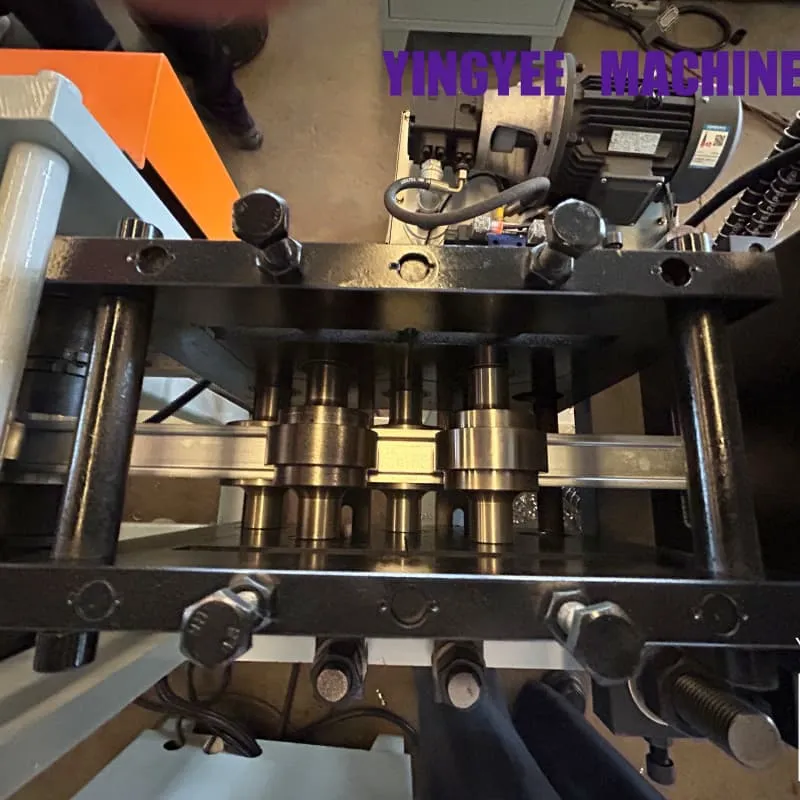

Main roll forming machine	1 set
Hydraulic punching and cutting device	1 set
Hydraulic station	1 set
PLC Control system	1 set

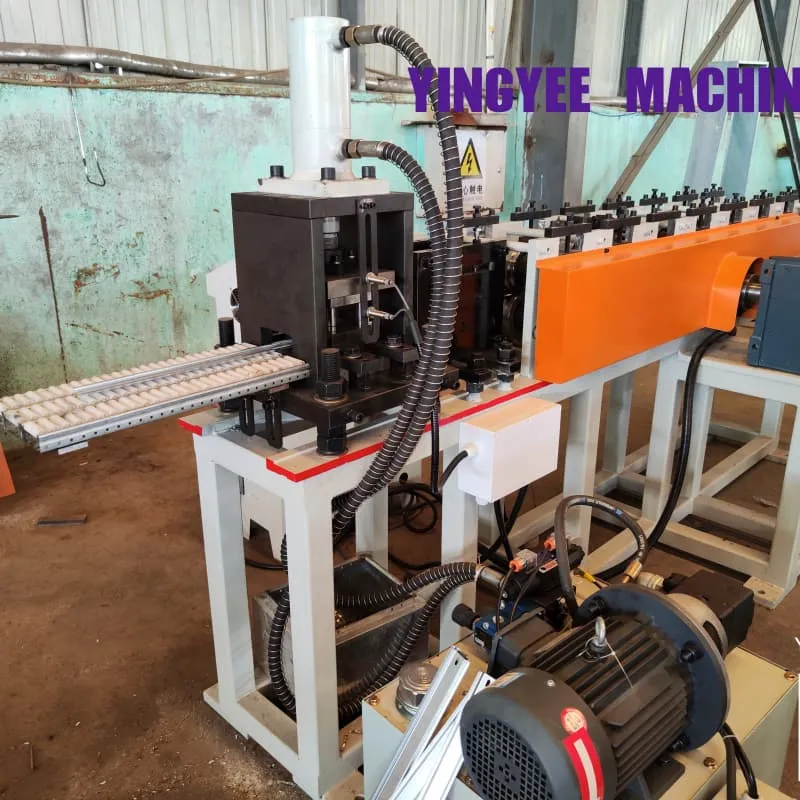

Electric Rail Roll Forming Machine

No.	Items	Spec:
1	Material	1.Thickness:1mm 2.Input width:according to drawing 3.Material:Stainless steel
2	Power supply	380V, 50Hz, 3Phase
3	Capacity of power	Main power:5.5kw(Servo motor) Hydraulic power:4kw
4	Speed	Forming speed: About 8 pcs/min(98mm and 123mm length)
5	Total weight	Approx. About 3.5 Tons
6	Dimension	Approx.(LWH) About 400012001200mm
7	Cut style	Hydraulic cutter
