  • Building Material Ibr Roof Sheet Making Machine
    Basic Info Contro
    inquire now

  • Product Detail

    Basic Info

    Control System:PLC

    Warranty:12 Months

    Thickness:0.3-1mm

    Using:Roof

    Type:Roof Sheet Roll Forming Machine

    Forming Speed:25-30m/min

    Voltage:38oV/3Phase/50Hz Or At Customer’s Request

    Material:GI, PPGI, Aluminum Coils

    Cutting Mode:Hydraulic

    Delivery:30 Days

    Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

    Product Description

    IBR trapezoid Roof Sheet Roll Forming Machine



    Building Material Ibr Roof Sheet Making Machine With Hydraulic Cutting Ibr Corrugated Roofing Sheet Roll Forming Machine. This roll forming machine is designed by customer`s requirements, special for steel roof sheet production, the profile as per customer`s drawing. Machine adopts high-strength wallboard structure, precision chain transmission, PLCcontrol system.

    Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

    Working process

    Technical parameters:



    Raw materials Galvanized coils, Pre-painted coils, Aluminum coils
    Material thickness range 0.2-1mm
    Forming speed 10-15m/min
    Rollers 15 rows(according to drawings)
    Material of rollers 45# steel with chromed
    Shaft material and diameter 76mm, material is 40Cr
    Material of body 400H steel
    Wall panel 20mm Q195 steel(all with electrostatic spraying)
    Controlling system PLC
    Main power 5.5KW
    Material of cutting blade Cr12 mould steel with quenched treatment
    Voltage 380V/3Phase/50Hz
    Total weight about 4 tons



    Pictures of machine:

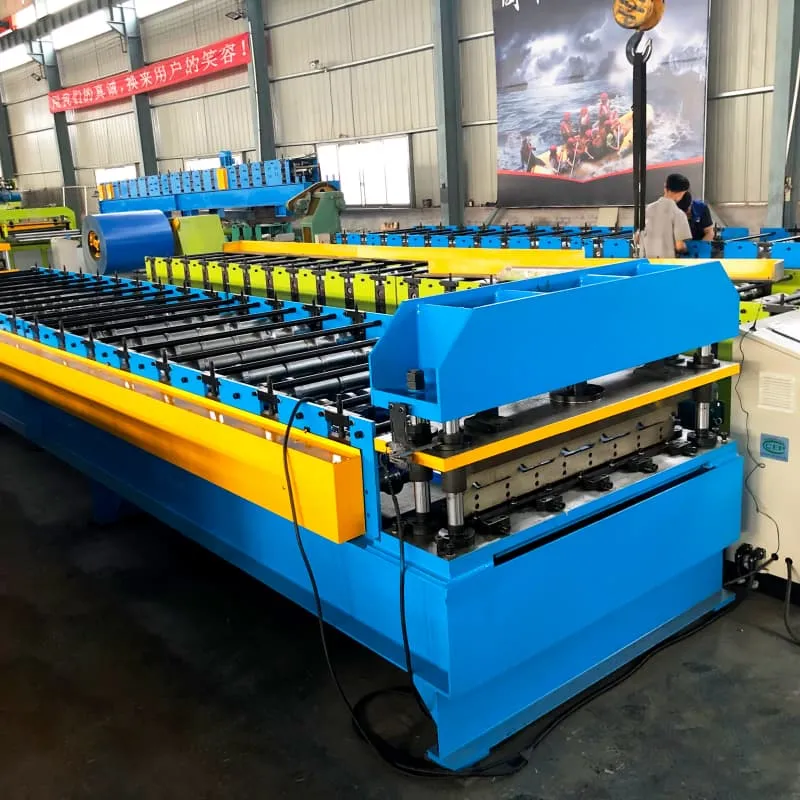

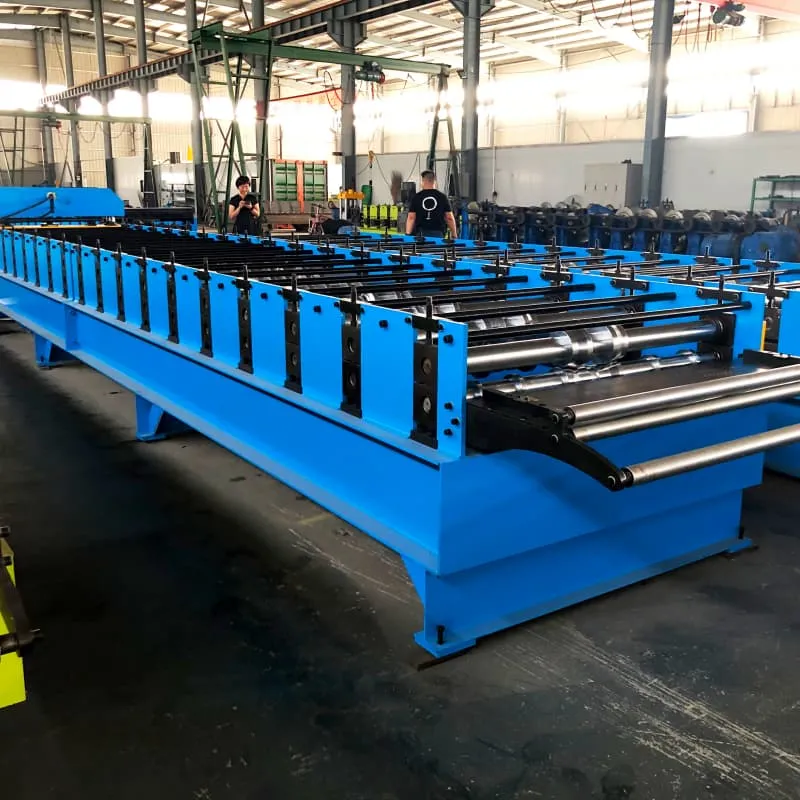

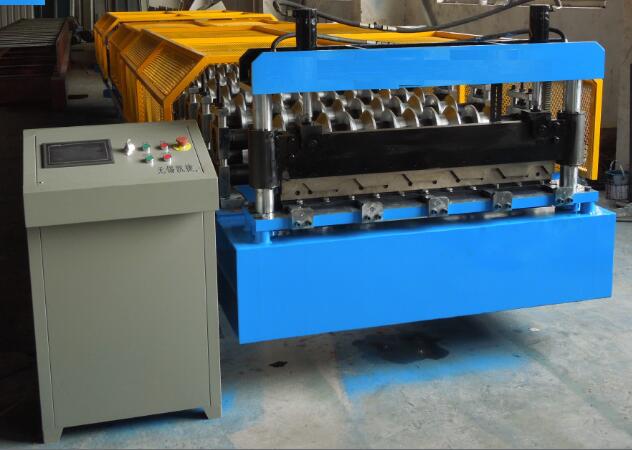

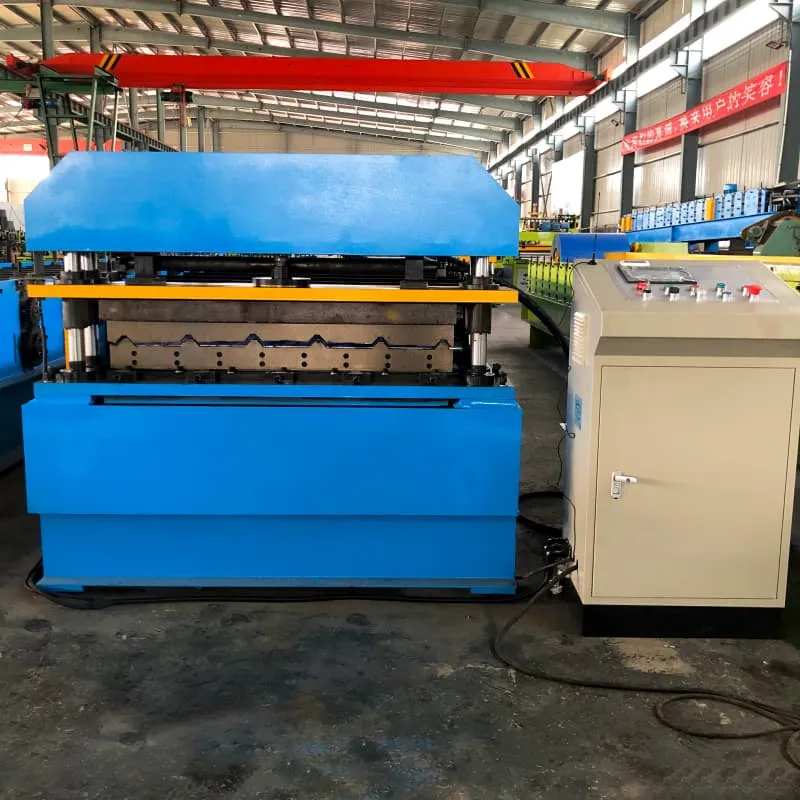

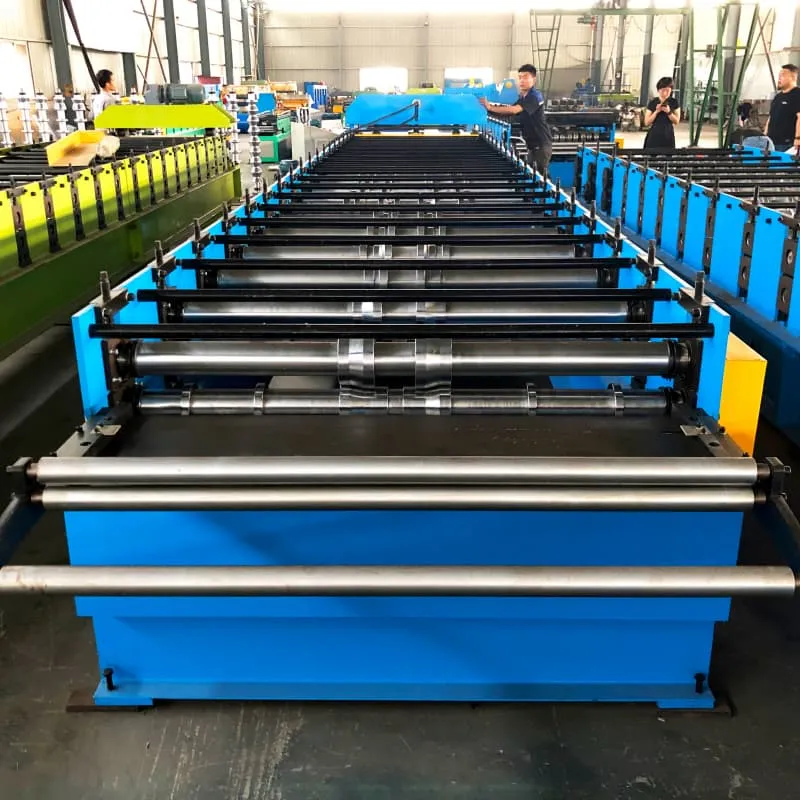

    IBR trapezoid roof sheet roll forming machine

    IBR trapezoid roof sheet roll forming machine

    IBR trapezoid roof sheet roll forming machine

    ibr roof sheet

    IBR trapezoid roof sheet roll forming machine

    IBR trapezoid roof sheet roll forming machine

    drawing

    IBR roof sheet roll forming machine



    Company information:

    YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

    YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

    • Roof roll forming machine
    • Roller Shutter Door Roll Forming Machine
    • C and Z purlin roll forming machine
    • Downpipe Roll Forming Machine
    • Light Keel Roll Forming Machine
    • Shearing Machine
    • Hydraulic decoiler
    • Bending machine
    • Slitting machine



    FAQ:

    Training and Installation :
    1. We offer installation service local in paid, reasonable charge.
    2. QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.


    Certification and after service:
    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.


    Our advantage:
    1. Short delivery period
    2. Effective communication
    3. Interface customized.

    Looking for ideal IBR Roofing Sheet Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Ibr Trapezoid Roof Sheet Forming Machine are quality guaranteed. We are China Origin Factory of Trapezoid Roof Sheet Machine Hydraulic Cutting. If you have any question, please feel free to contact us.

    Product Categories : Roof Sheet Roll Forming Machine > Trapezoid Roof Sheet Forming Machine
