7 tons hydraulic decoiler |
1.Decoiler form:7 tons hydraulic decoiler 2.ID of feeding Coil:φ460mm-- φ510mm 3.Max width:1250mm 4.Max weight :7T 5.Material:Aluminum and zinc plate galvanized plate color steel plate low carbon steel 6.main power is 5.5kw. Control by plc; Sensor sensing 7.Voltage, Frequency, Phase: 380 V, 50 Hz,3Phase 8.Included trolley move type. |

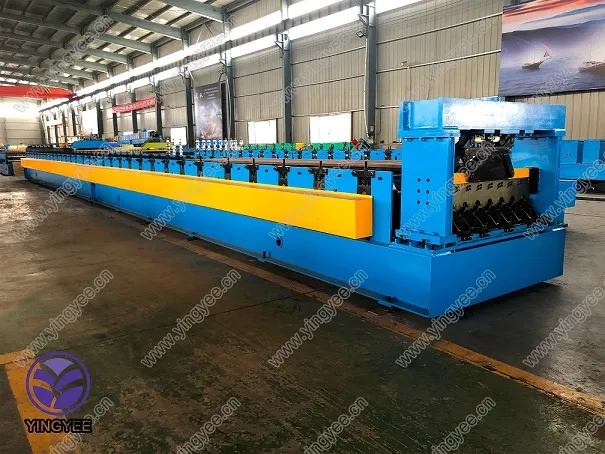

Deck floor roll forming machine |
1. Matching material: colored armor plate with the bending intensity of Q195-235 .Material thickness: 0.8--1.5 mm 2. Power: 18.5 kw 3. Forming speed: 10--15 m/min 4. The width of the plates:according to the drawings 5.the formed width:according to the drawings 6. Roll stations: 25 7. Shaft Material and diameter: 45# steel, ¢90mm 8. Tolerance: +-1.5mm 9. Way of drive: chain driven 10. Controlling system: PLC 11. Voltage: 380 V, 50 Hz,3Phase 12. Material of forming rollers: 45# heat treatment and chromed. |
Cutting |
1.Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start. 2.Material of blade:Cr 12 with quenched treatment HRC58-62 3.Length measuring: Automatic length measuring 4.Tolerance of length: 10+/- 1.5mm |
PLC control system
|
1. Voltage, Frequency, Phase:depend on customer request 2. Automatic length measurement: 3. Automatic quantity measurement 4. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved 5. Length inaccuracy can be amended easily 6. Control panel: Button-type switch and touch screen 7. Unit of length: millimeter (switched on the control panel) |
