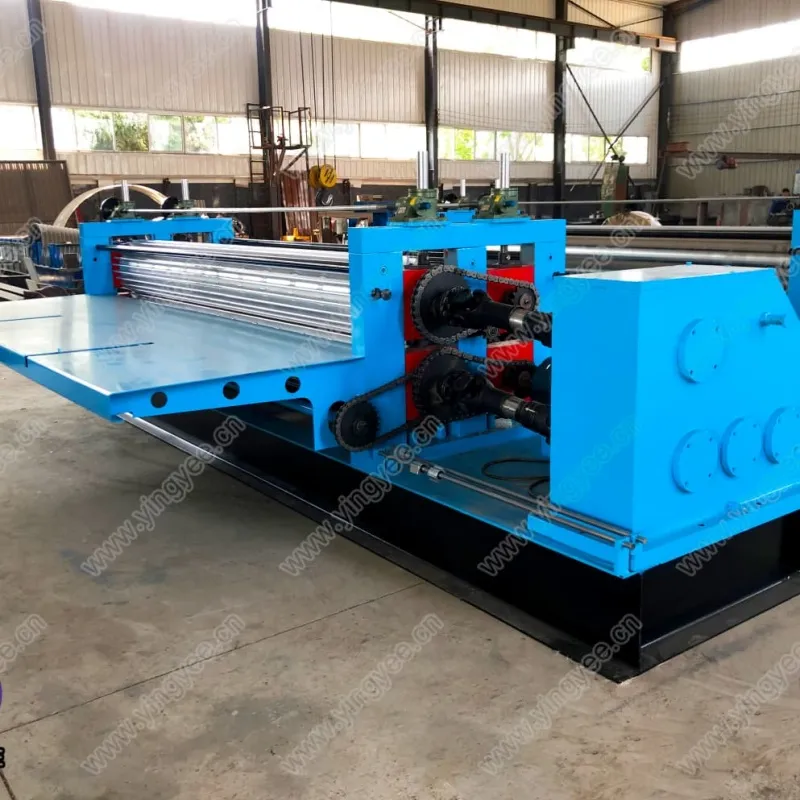

Barrel Corrugation Roof sheet machine

Galvanized Transverse Thin Corrugated Machine Galvanized Transver

barrel corrugated roll forming machine
barrel corrugation machine
inquire now

Product Detail

Galvanized Transverse Thin Corrugated Machine

Galvanized Transverse Corrugated Rolling Machine is designed for thin plates with a thickness of 0.4mm, which is fast and efficient.

machine technical parameter:

1.machine type	Barrel corrugating type
2.material	steel/Aluminum
3.working speed	9-12piece/min
4.sheet thickness	0.13-0.45mm
5.pinch	75mm
6.guider for sheet input	welded steel structure with stopper for setting width
7.corrugating roll	barrel length 4500 mm
8.pinch adjust roll	barrel length 4500 mm
9.screw	adjusted by manual
10.guider for output products	welded steel plate
11.Up&down device for corrugating and pitch adjusting rolls

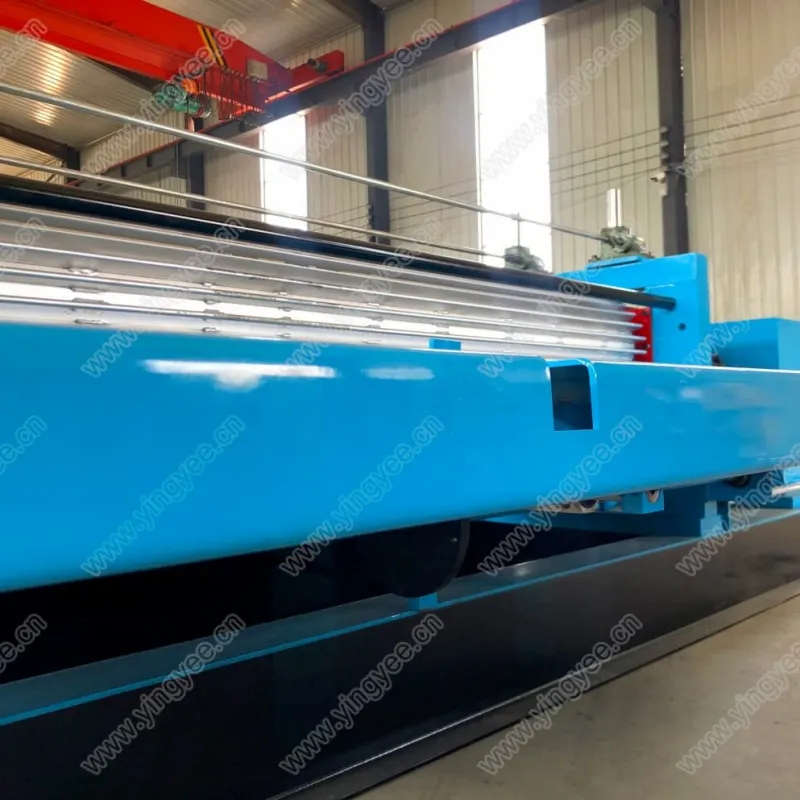

Roof sheet machine

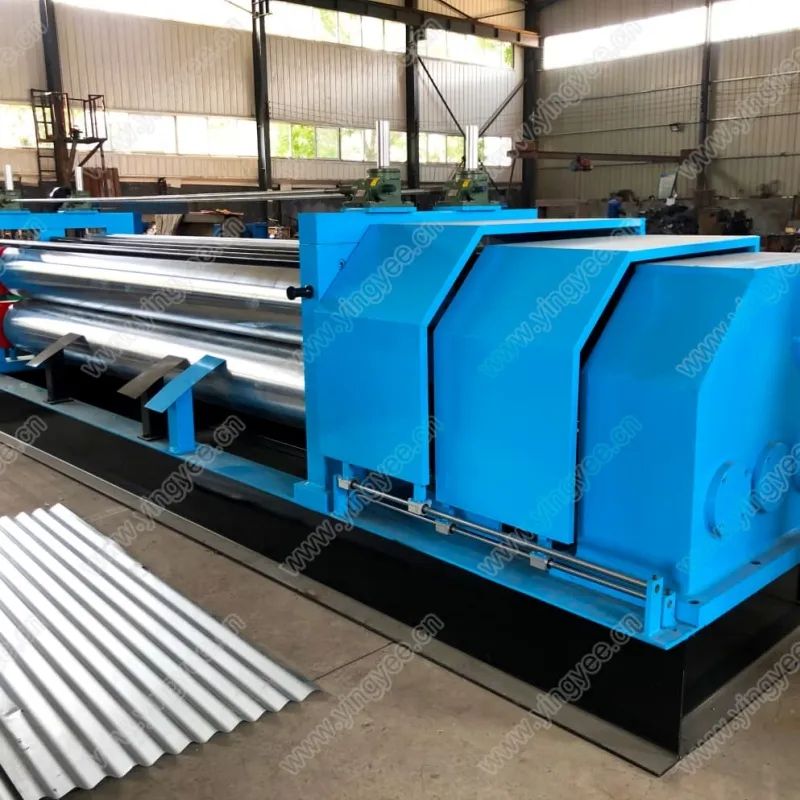

Roof sheet machine

Roof sheet machine
