  • 1-3mm Steel metal channel purlin rolling machine
    Basic Info Type:
    inquire now

  • Product Detail

    Basic Info

    Type:Roof Sheet Roll Forming Machine

    Warranty:12 Months

    Delivery Time:30 Days

    Material:Steel Coil, Galvanized, PPGI, Aluminum

    Speed:6-8m/min(including Punching And Cutting Time)

    Control System:Panasonic/Mitsubishi PLC

    Way Of Driven:Chain Transmission

    Cutting Mode:Hydraulic

    Material Of Cutting Blade:Cr12

    Additional Info

    Packaging:PLASTIC FILM, WOODEN CASE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean,Land,Air

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

    HS Code:84552210

    Port:TIANJIN,XIAMEN,SHANGHAI

    Product Description

    purlin roll forming machine can produce different sizes of steel C or Z purlins in various thicknesses. Square Tube Mill There are manual adjustable steel profile metal purlin machines and automatic purlin machines . Steel Shutter Door Machine The complete purlin roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Guardrial Highway Making Machine Our machines are equipped with a computer controlling system. Steel Rod Thread Rolling Machine We simply program the pieces and length we need in the computer and the machine produces it automatically. The machines are easy to operate and running stable.





    Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

    Working process

    Technical parameters:



    Matching material Steel coil, Galvanized, PPGI, Aluminum
    Material thickness range According to drawings
    Main motor power 30W
    Forming speed 10-18min (not include punching and cutting time)
    Hydraulic power 7.5KW
    Quantity of rollers About 18
    Shaft diameter and material 70mm, material is 45#steel
    Material of rollers Gcr15 or Cr12 with chromed
    Way of driven chain transmission
    Controlling system PLC
    Voltage 380V/30Phase/50Hz (as customer require)
    Total weight About 12 tons
    Size of the machine L*W*H 10m*1.2m*1.6m

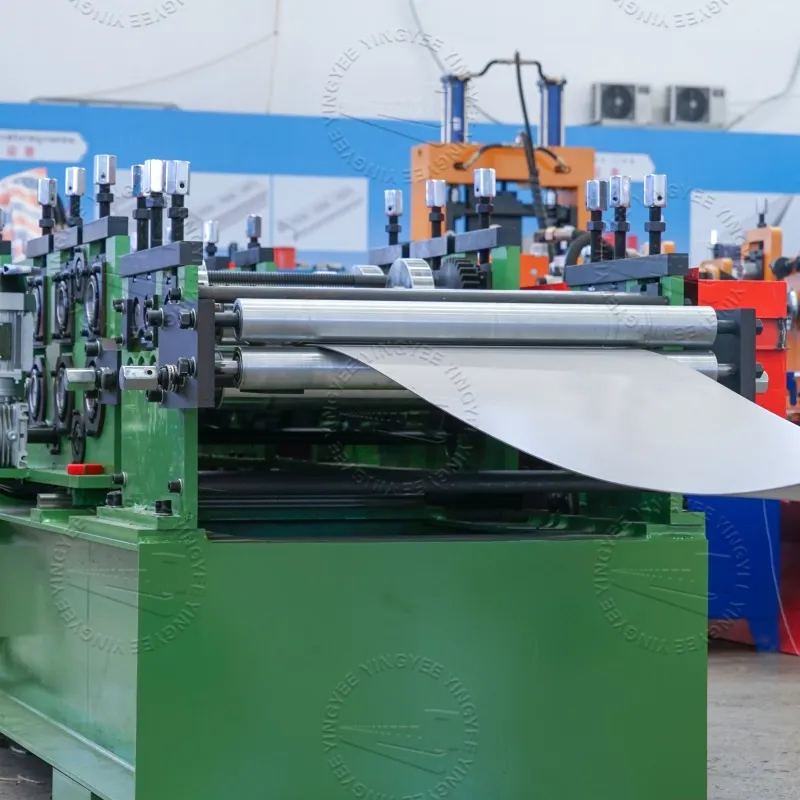

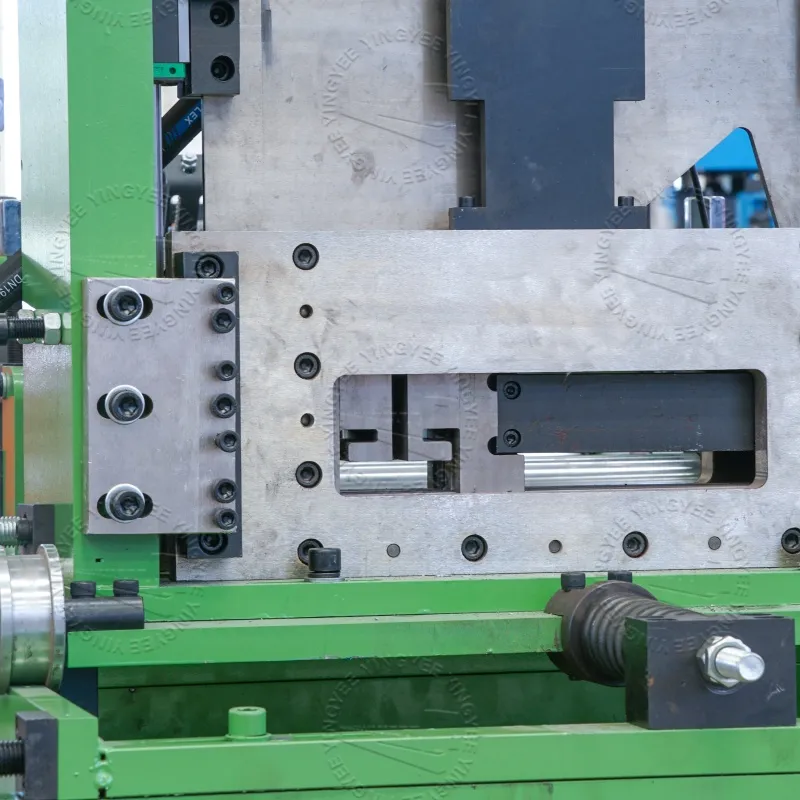

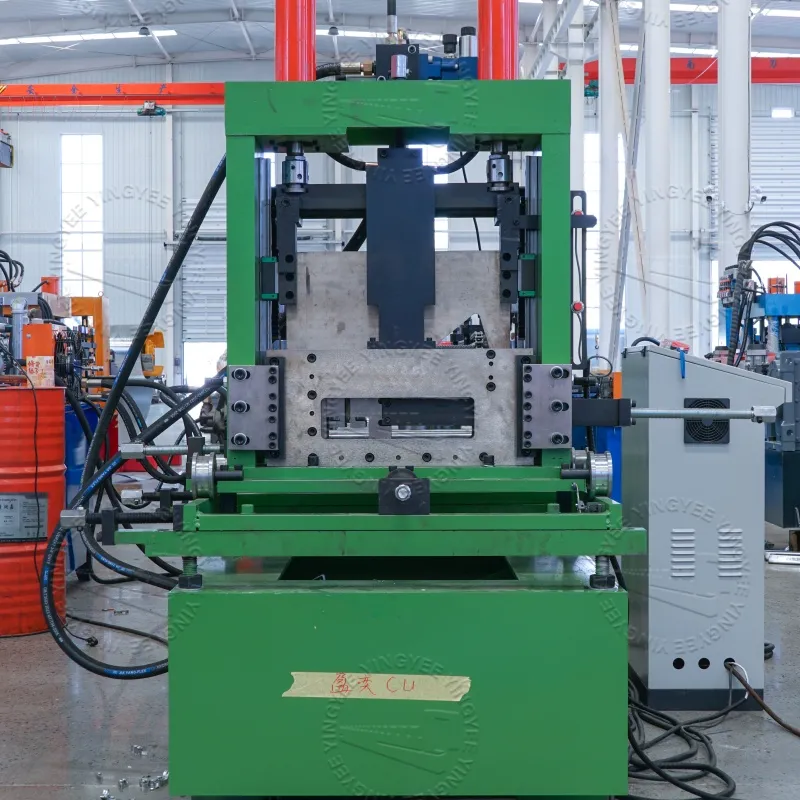

    Pictures of machine:



    C/Z purlin roll forming machine C/Z purlin roll forming machine

    C/Z purlin roll forming machine C/Z purlin roll forming machine

    C/Z purlin roll forming machine C/Z purlin roll forming machine

    C/Z purlin roll forming machine

    C/Z purlin roll forming machine



    Company information:

    YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

    YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

    • Roof roll forming machine
    • Roller Shutter Door Roll Forming Machine
    • C and Z purlin roll forming machine
    • Downpipe Roll Forming Machine
    • Light Keel Roll Forming Machine
    • Shearing Machine
    • Hydraulic decoiler
    • Bending machine
    • Slitting machine



    FAQ:

    Training and Installation :
    1. We offer installation service local in paid, reasonable charge.
    2. QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.


    Certification and after service:
    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.


    Our advantage:
    1. Short delivery period
    2. Effective communication
    3. Interface customized.



    Looking for ideal Z Purlin Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 1-3.5mm Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal Purlin Roll Forming. If you have any question, please feel free to contact us.

    Product Categories : C/Z/U Purlin Changeable Roll Forming Machine


  • Related Products
    Automatic CZ purlin roll forming machine with pre punching and pre cut
    Automatic CZ purlin roll forming machine with pre punching and pre cut

    1.One machine can make all sizes of C (web: 80-300mm, height 35-80) and Z (web: 120-300mm, height 35-80), which are adjusted by a fully automatic PLC system.
    Automatic CZ purlin roll forming machine with universal cutter cuts all sizes.
    Automatic CZ purlin roll forming machine with universal cutter cuts all sizes.

    Automatic CZ purlin roll forming machine, universal cutter cuts all sizes, save labour and materials
    Automatic cz purlin roll forming machine with good quality
    Automatic cz purlin roll forming machine with good quality

    Automatic cz purlin roll forming machine with good quality
    Automatic CZ purlin roll forming machine with multiple parameters
    Automatic CZ purlin roll forming machine with multiple parameters

    Machine is large and weighs 12 tons, which is strong and durable. The machine has stable performance and low failure rate.
