Thread Rolling Machine Model YY-80
Thread rolling machine for unlimited bars is mainly used for all kinds of T-type rolling thread backwatering rod, thread rolling machine through walla screw with the advantages of simple operated, energy power and high efficiency.
Technical parameters:
| Pressure of Roller max. |
150KN |
Rotary Speed of Main Shaft |
36,47,60,78(r/min) |
| Working Dia |
4-48mm |
Feed Speed of Movable shaft |
5mm/s |
| OD of Roller |
120-170mm |
Thread Length |
(no limits) |
| BD of Roller |
54mm |
Main Power |
4kw |
| Roller Width max |
100mm |
Hydraulic Power |
2.2kw |
| Dip Angle of Main Shaft |
±5° |
Weight |
1700kg |
| Center Distance of Main shaft |
120-240mm |
Size |
1480×1330×1440mm |

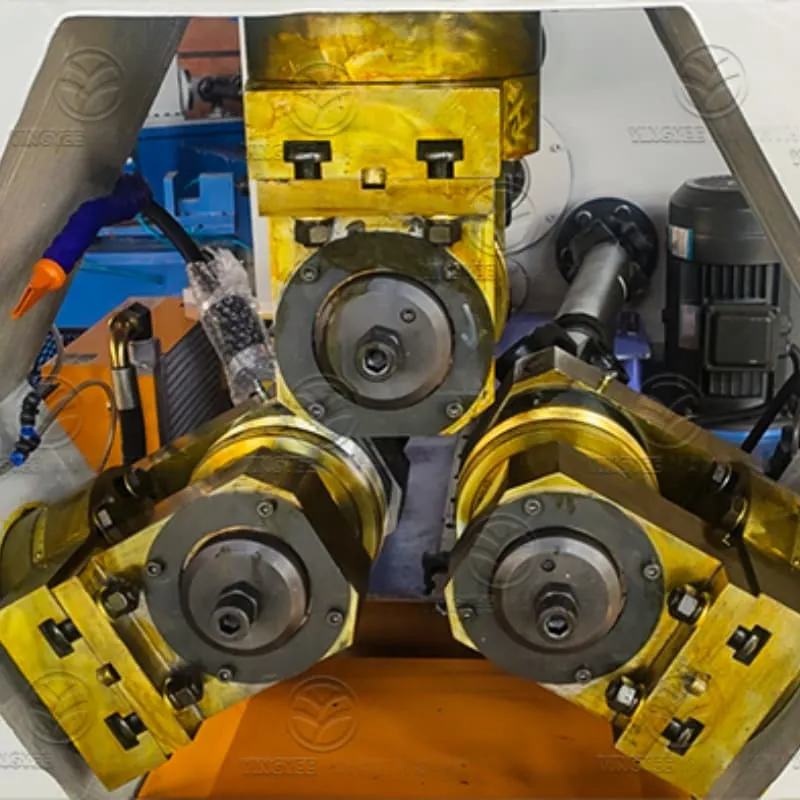

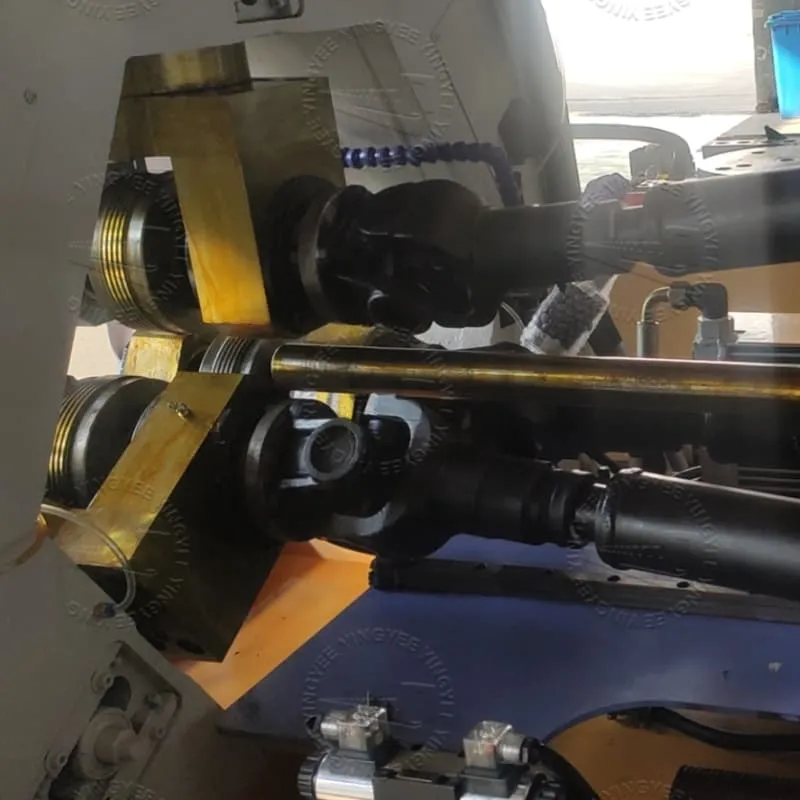

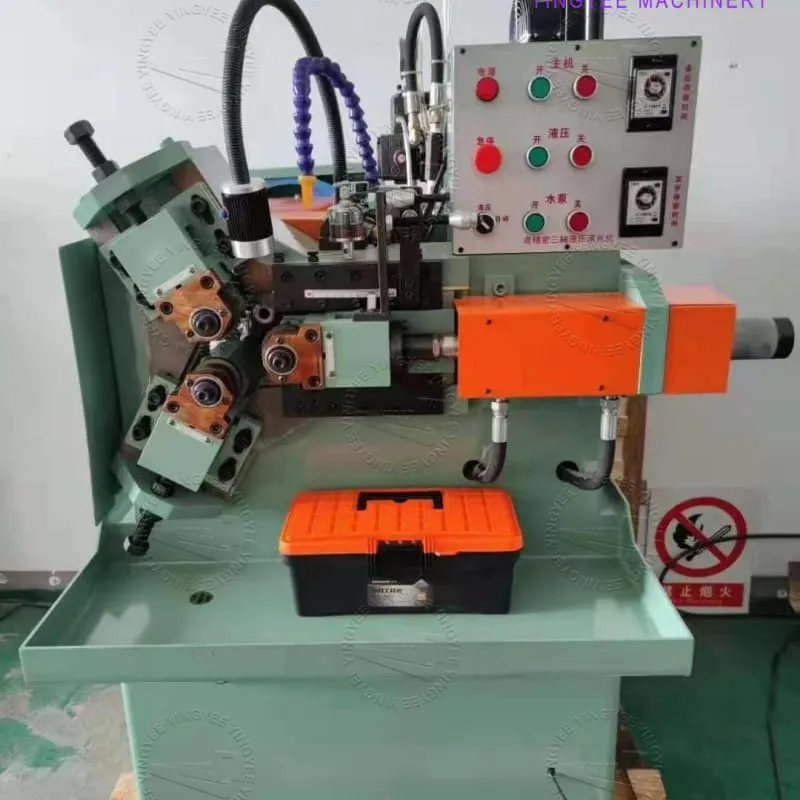

Pictures of machine:
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal High Speed Thread Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Thread Rolling Machine are quality guaranteed. We are China Origin Factory of High Quality Thread Rolling Machine. If you have any question, please feel free to contact us.
Product Categories : Thread Rolling Machine
