3 tons manual de-coiler |
Inner dia: Ø440mm– Ø560mm Max input feeding: 600mm Capacity: 3Tons |
Material Feeding and Guiding |
Guiding system consists of several rollers, and the width between them could control by the manual rollers. |
Forming part |
1. Matching material: color plate,Galvanized steel 2. Material thickness range: 0.4mm-0.8mm 3. Main motor power: 5.5kw 4. Hydraulic power: 3.0kw 5. Feeding width 140mm 6. Forming speed: 10-15m /min 7. Quantity of stands: 15 rollers 8. Shaft Material and diameter: ¢50mm, 45# steel . 9.Tolerance: 3mm+/-1.0mm 10.Way Of Drive: 1.0 inch single chain driving 11.Controlling system: PLC system 12.Material of forming rollers: 45# steel ,heat treatment and chromed 13.Material of cutter blade: Cr 12 mould steel with quenched treatment HRC58-62 14.Voltage: 380V/ 3phase/ 50 Hz (as customer require) 15.Size of the roll forming machine: about 4. 3 m*1.0m*1.5m (L*W*H) |
Hydraulic system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job. Match equipment :The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves. Power of the oil pump:3kw Hydraulic oil :40# |
PLC control |
Automatic length measurement Automatic quantity measurement Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved |

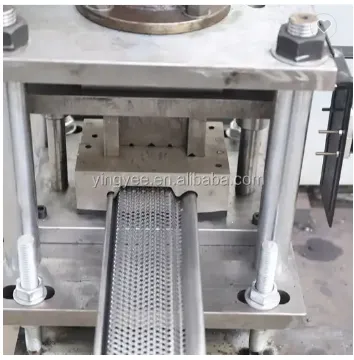

Hydraulic Cutting |
1.Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start. 2.Material of blade: CR12with heat treatment 3.Length measuring: Automatic length measuring |
