    Basic Info

    Warranty:12 Months

    Delivery Time:30 Days

    Type:Steel Frame & Purlin Machine

    Material:GI, PPGI, Aluminum Coils

    Way Of Driven:Chain Or Gear Box

    Cutting Mode:Hydraulic

    Material Of Cutting Blade:Cr12

    Forming Speed:25-30m/min(excluding Punching)

    Voltage:380V/3Phase/50Hz Or At Your Request

    After Service:Engineers Available To Service Machinery Overseas

    Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

    HS Code:84552210

    Port:Tianjin Xingang

    Product Description

    PV Solar Panel Making Machine

    Metal Solar PV Panel Forming Machine has reasonable structure, beautiful appearance, with advantage of saving space, easy to operate and especially welcomed by the customers with limited area or site operation.

    Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

    Working process

    Technical parameters:



    Matching material Galvanized, PPGI, Aluminum
    Material thickness range 1.5-2.0mm
    Feeding width 300mm(can change according to buyer’s request)
    Roller 24 rollers
    Material of roller Gcr15
    Main motor power 30KW
    Forming speed 8-15m/min
    Shaft material and diameter 80mm, 45# steel with chromed
    Way of driven Chain transmission or gear box
    Material of blade Cr12 mould steel with quenched treatment 58-62℃
    Voltage 380V/3Phase/50Hz
    Controlling system PLC

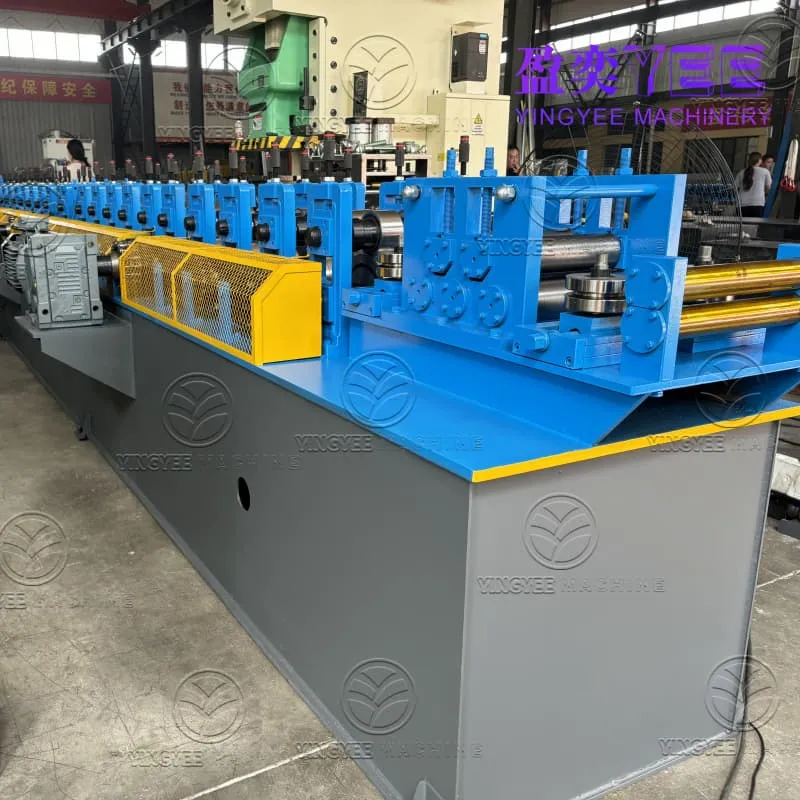

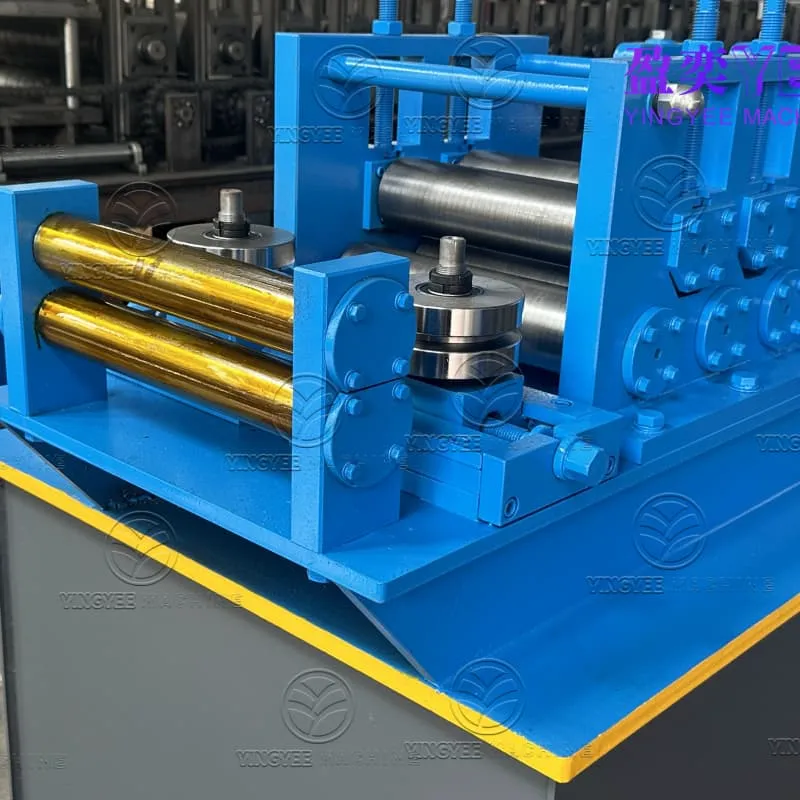

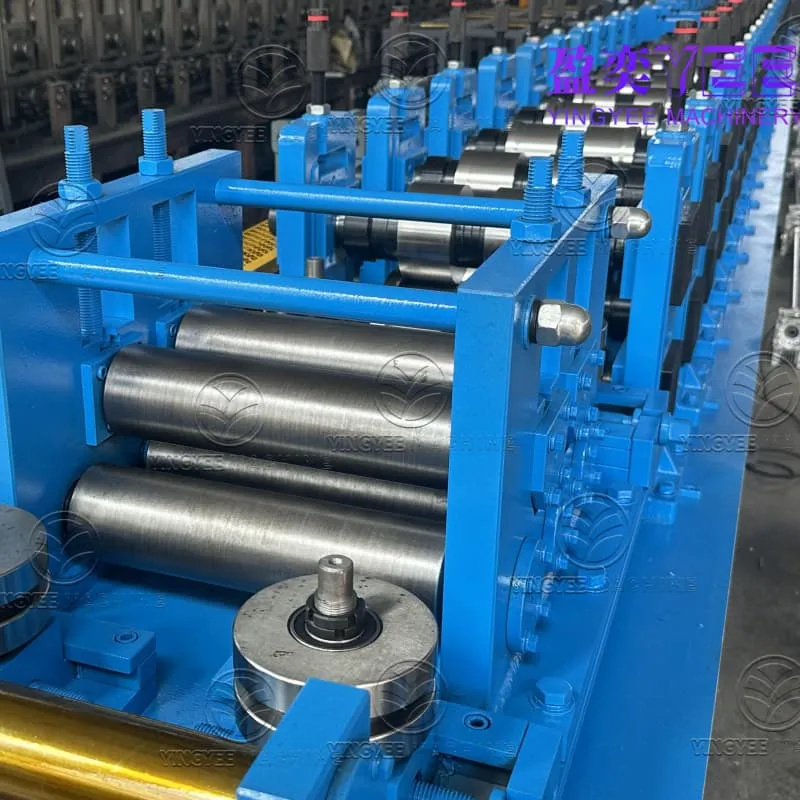

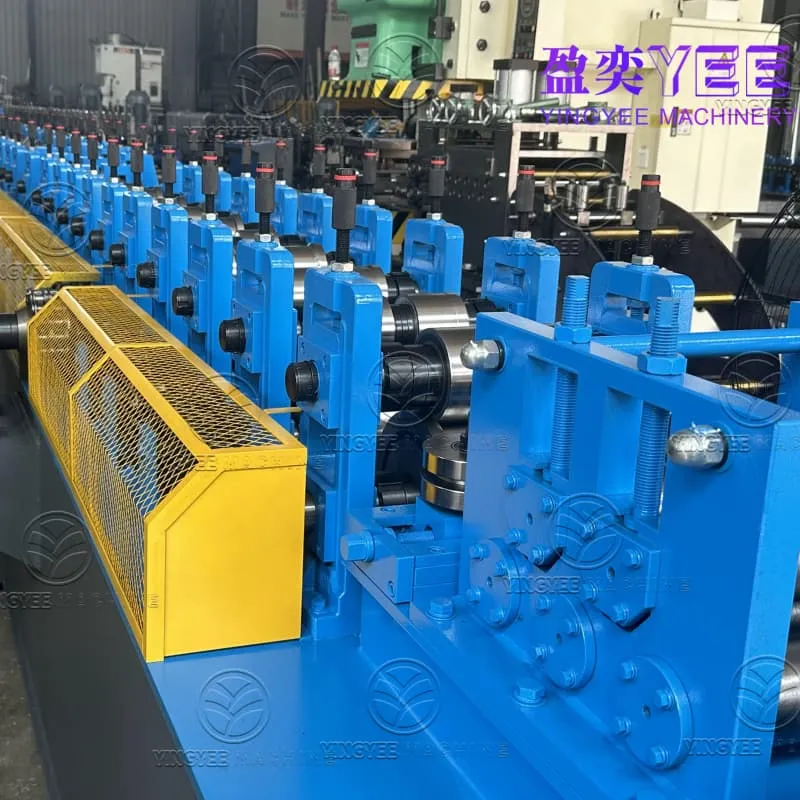

    Pictures of machine:



    solar PV bracket

    solar PV bracket

    solar PV bracket

    solar PV bracket

    solar PV bracket



    Looking for ideal PV Solar Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PV Solar Bracket Rolling Machine are quality guaranteed. We are China Origin Factory of PV Bracket Roll Forming Machine. If you have any question, please feel free to contact us.

    Product Categories : Solar PV Bracket Roll Forming Machine
