  • Metal Shelving /Cheaper Storage Rack roll forming machine
    Basic Info Type:
    inquire now

  • Product Detail

    Basic Info

    Type:Steel Frame & Purlin Machine

    Warranty:12 Months

    Delivery Time:30 Days

    After Service:Engineers Available To Service Machinery Overseas

    Forming Speed:25-30m/min(excluding Punching And Cutting Time)

    Cutting Mode:Hydraulic

    Material Of Cutting Blade:Cr12

    Control System:PLC

    Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

    Product Description

    Metal Shelving /Cheaper Storage Rack Roll Forming Machine

    storage rack roll forming machine with steel as a raw material, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile. We can according to customer design, manufacture different specifications of cold-formed, paint unit equipment.

    Light steel keel molding machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material. Used in hotels, terminals, bus terminal, railway stations, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

    Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

    Working process

    Technical parameters:



    Matching material Color steel plate, Galvanized, PPGI, Aluminum
    Material thickness range 1.5-3mm
    Main motor power 15KW
    Hydraulic power 11KW
    Forming speed 6-8m/min(include punching)
    Rollers 18-24 rows
    Material of rollers 45# steel with chromed
    Shaft material and diameter 80mm, material is 40Cr
    Way of driven Chain transmission or Gear box
    Controlling system Siemens PLC
    Voltage 380V/3Phase/50Hz
    Material of blade Cr12 mould steel with quenched treatment 58-62℃
    Total weight about 15 tons
    Size of the machine L*W*H 12m*2.0m*1.6m

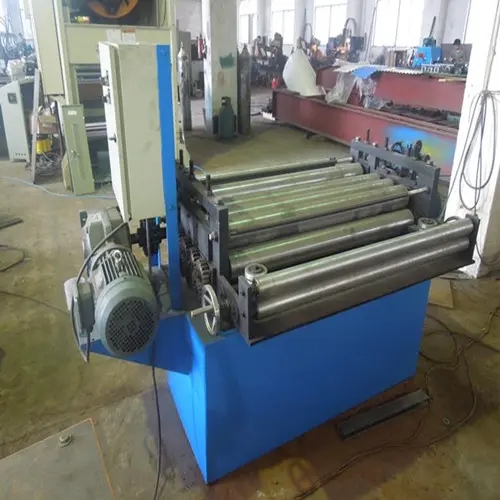

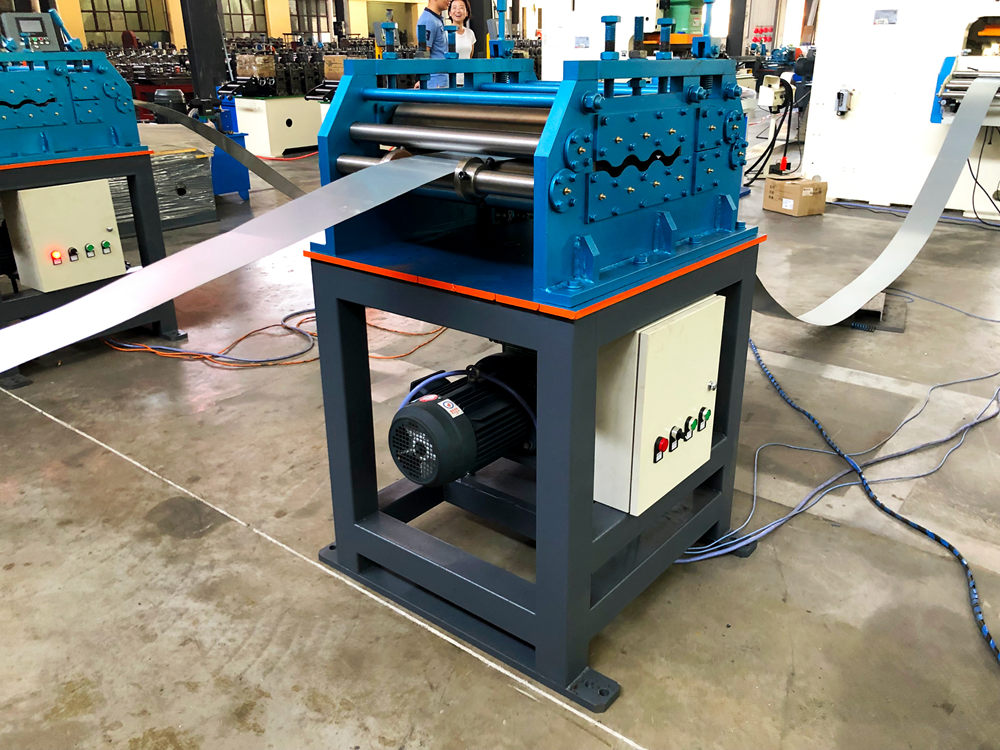

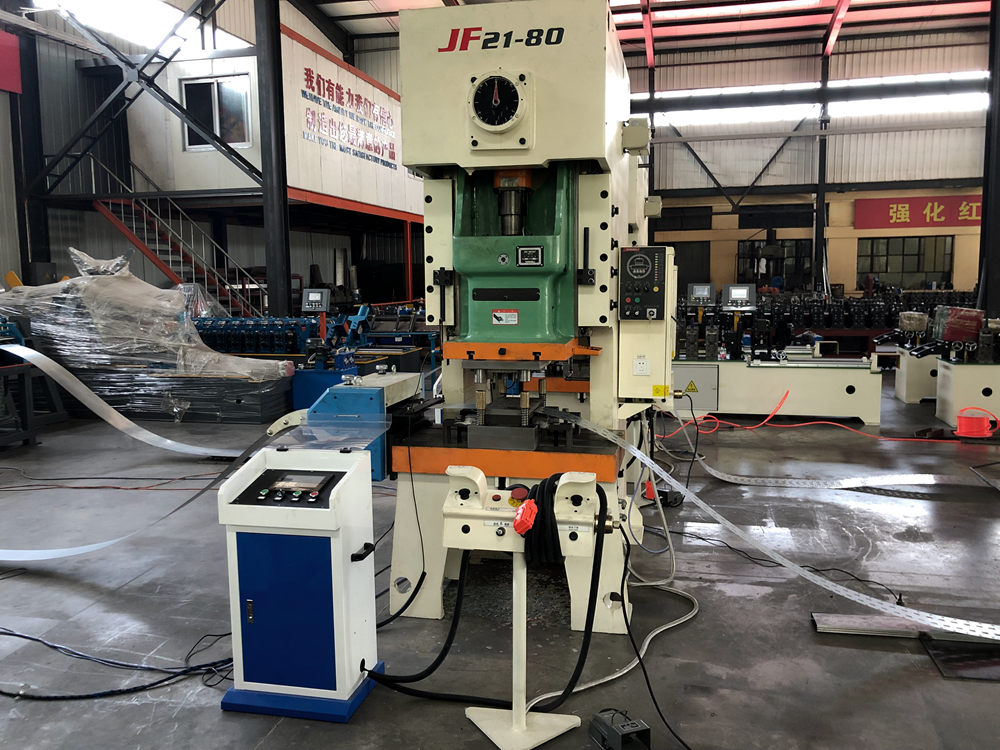

    Pictures of machine:

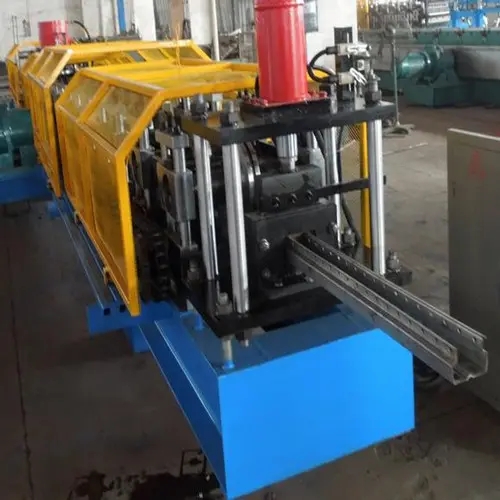

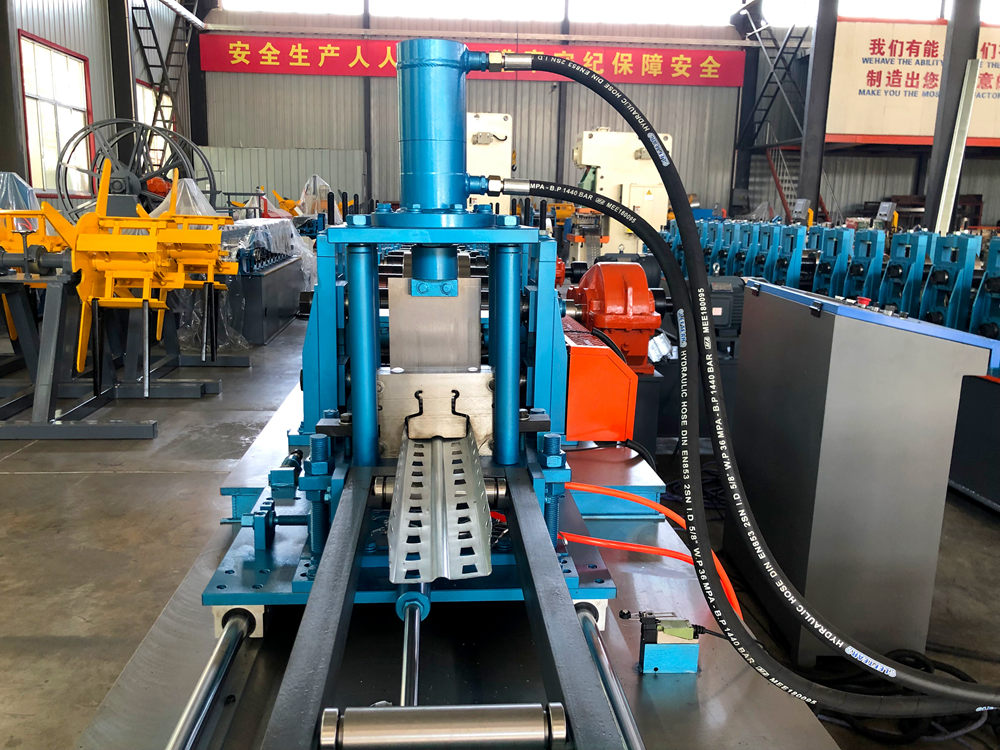

    Storage rack roll forming machine

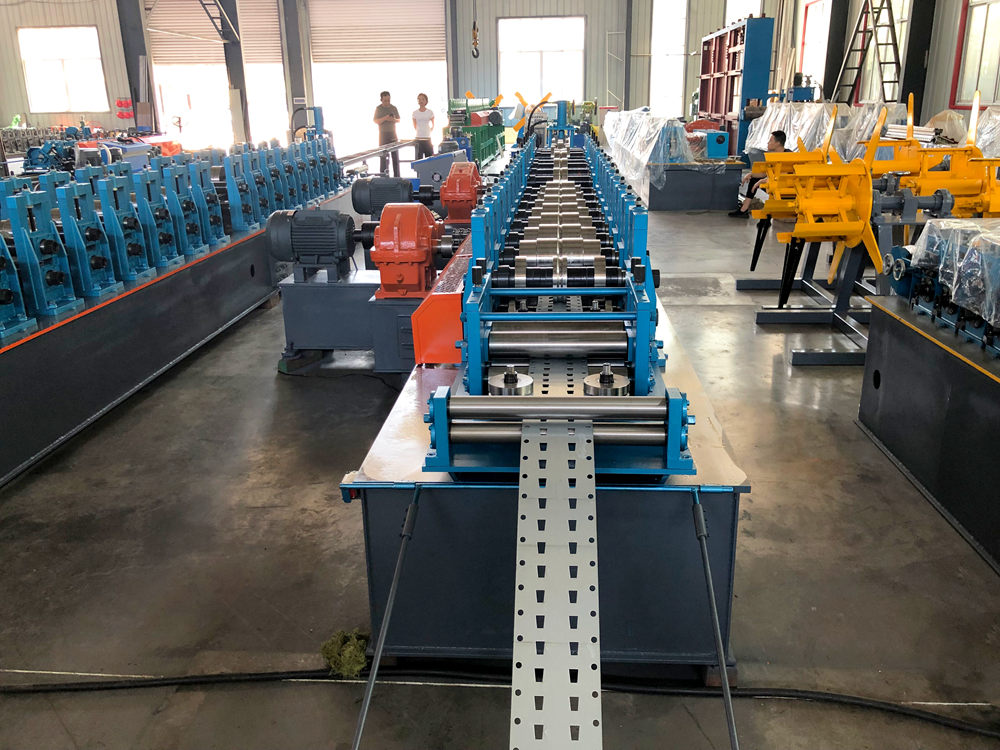

    Upright roll forming machine

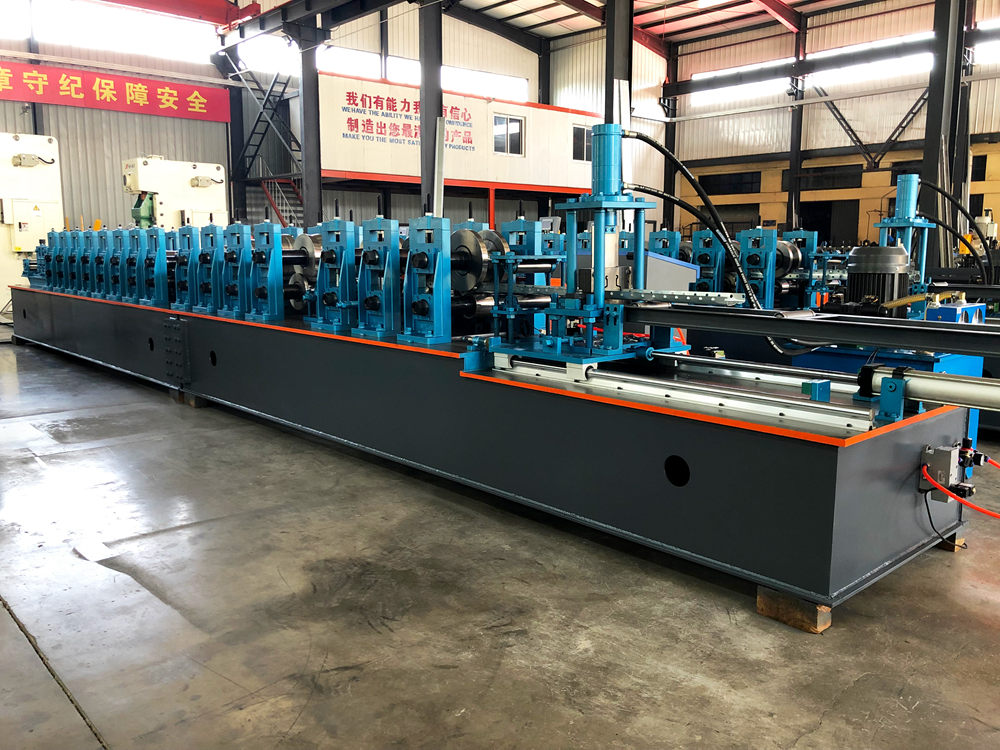

    storage rack roll forming machine

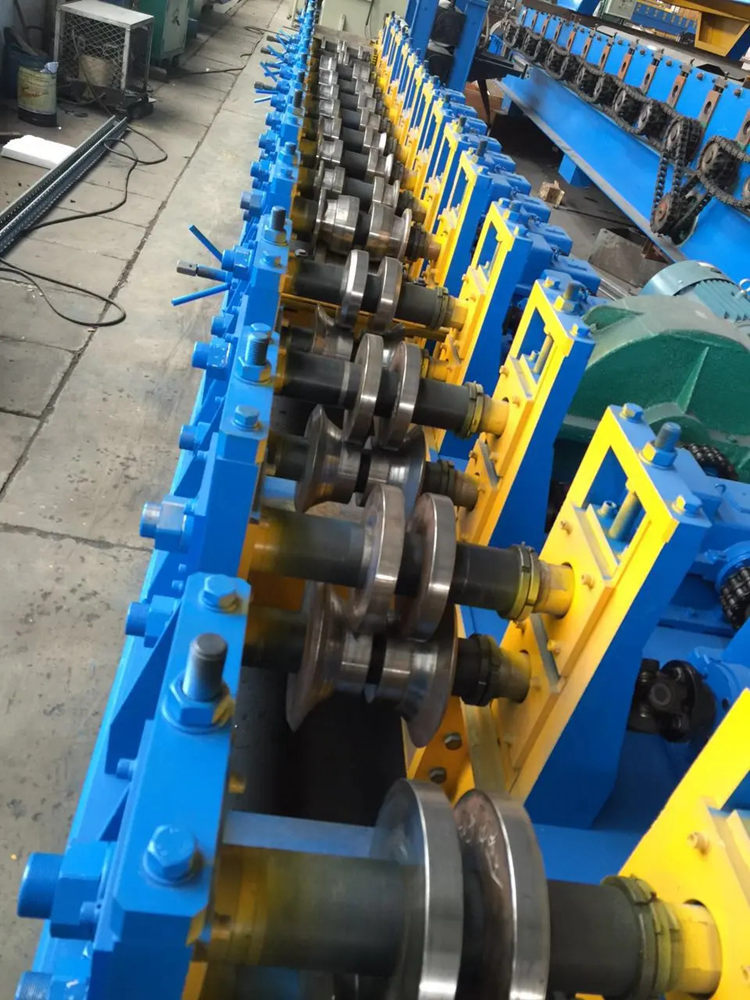

    Upright roll forming machine

    Upright roll forming machine

    Upright roll forming machine





    Company information:

    YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

    YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

    • Roof roll forming machine
    • Roller Shutter Door Roll Forming Machine
    • C and Z purlin roll forming machine
    • Downpipe Roll Forming Machine
    • Light Keel Roll Forming Machine
    • Shearing Machine
    • Hydraulic decoiler
    • Bending machine
    • Slitting machine

    FAQ:

    Training and Installation :
    1. We offer installation service local in paid, reasonable charge.
    2. QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.


    Certification and after service:
    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.


    Our advantage:
    1. Short delivery period
    2. Effective communication
    3. Interface customized.

    Looking for ideal Storage Rack Roll Forming Machine Prices Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Heavy Duty Storage Rack Making Machine are quality guaranteed. We are China Origin Factory of Storage Rack Making Machine. If you have any question, please feel free to contact us.

    Product Categories : Storage Rack Roll Forming Machine > Storage Upright Roll Forming Machine


  • Related Products
    Full automatic storage box beam roll forming machine
    Full automatic storage box beam roll forming machine
    1. Automatic size changing
    2. Automatic folding
    3. automatic transfer and combining
    4. Line speed: 20m/min
    5. Only need one worker to operate.
    Automatic size changing storage beam roll forming machine with auto folding and combine system
    Automatic size changing storage beam roll forming machine with auto folding and combine system

    One machine can do different size of beam, save space, save worker, save money, full automatic.
    Automatic size change storage racking roll forming machine
    Automatic size change storage racking roll forming machine

    1. 10m/min or 20m/min different speed can be choose. 2. Automatic size changing or Change cassette optional. 3. Gear box driven optional, much stable, big power and long life 4. Hydraulic track moving cut, no speed loss. 5. with automatic stacker machine, one people can operate the hole line.
    Storage racking roll forming machine with good effect
    Storage racking roll forming machine with good effect

    The storage rack forming machine is a full-automatic production line, which can do heavy rack with a maximum thickness of 3mm.
