Veraarbechtung:
Coil loading (manual) → uncoiling → leveling → feeding (servo) → angle punching / logo punching → cold roll forming → cutting forming → discharging
EAusrüstung Komponent
|
Nee |
Komponent Numm |
Modeller a Spezifikatioune |
Setzt |
Bemierkung |
|
1 |
Decoiler |
T-500 |
1 |
|
|
2 |
Nivelliermaschinn |
HCF-500 |
1 |
Aktiv |
|
3 |
Servo Feeder Maschinn |
NCF-500 |
1 |
Dual-Benotzung |
|
4 |

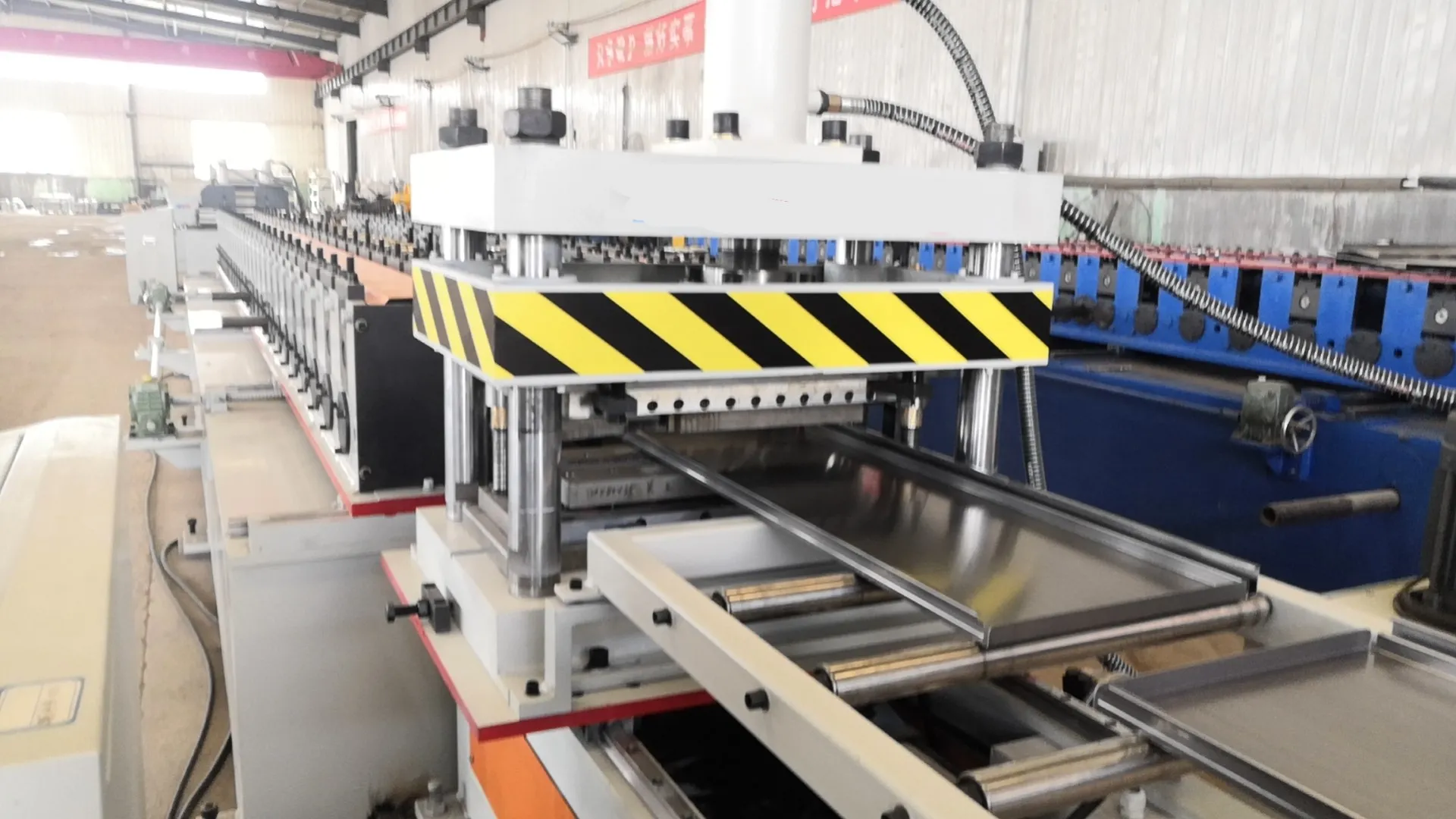

Punching System |
Multi-Statioun véier-Post Typ |
1 |
Hydraulesch |
|
5 |
Roll administrativ Maschinn |
Cantilever séier Upassung Typ |
1 |
Frequenz Kontroll |
|
6 |
Schneid- a Klappmaschinn |
Tracking Typ |
1 |
Kombinatioun |
|
7 |
Empfang Dësch |
Roll Typ |
1 |
|
|
8 |
Hydraulesch System |
Héich Vitesse |
2 |
|
|
9 |
Elektresch Kontroll System |
PLC eng |
2 |
|
|
10 |
Convery System |
Roll Typ |
1 |
Fir Fonds 1 |
--------------------------------------------------------------------------------------------------
BasisSpezifizéierung
|
Nee. |
Artikelen |
Spezifizéierung: |
|
1 |
Material |
1. Thickness: 0.6mm 2. Input width: max. 462mm 3. material: Cold rolled steel strip; yield limit σs≤260Mpa |
|
2 |
Power supply |
380V, 60Hz, 3 phase |
|
3 |
Capacity of power |
1. Total power: about 20kW 2. Punchine system power: 7.5kw 3. Roll forming machine power: 5.5kw 4. Track cutting machine power: 5kw |
|
4 |
Speed |
Linn Geschwindegkeet: 0-9m / min (inklusiv Punching) Formgeschwindegkeet: 0-12m/min |
|
5 |
Hydraulesch Ueleg |
46# |
|
6 |
Gear Ueleg |
18# Hyperbolic gear oil |
|
7 |
Dimensioun |
Approx.(L*W*H) 20m×2m×2m |
|
8 |
Stänn vun Rollers |
Roll forming machine for Fundo 2F: 17 rollers One Extra Roller Fundo 1F: 12 Roller |
|
9 |
Material vun Rollers |
Cr12, quenched HRC56°-60° |
|
10 |
Längt vun gewalzt workpiece |
Benotzer fräi Astellung |
|
11 |
Schnëtt Stil |
Hydraulic Tracking cut |
