技術スキーム の 長さに合わせてカットする生産ライン
0.3-2*1300 cut to length line
1. Steel material: Galvanized Steel
2. Steel coil thickness: 0.3-2.0mm
3. Steel coil width: 500-1500mm
4. Max Steel coil weight: 10T
5. Steel coil I.D: 508-610mm
6. Steel coil O.D: ≤1500mm
7. line speed: 50-60m/min
8. Cutting speed:(as 1000*2000mm): 20-30 pieces/min
9. Shear length : 500-4000mm
10. Frame material: Q235
11. Voltage: 380V three-phase electricity 50Hz
12. Diagonal accuracy: ±1mm
13. Sizing accuracy: ±1mm
14. Total power: approx 70KW (Normal working power: 60KW)
15. Unit area: Approx 23m*6m ( according to the using)
16. Unwinding direction: left to right facing the console
機械を含む
1. Hydraulic single arm de-coiler with hydraulic feeding trolley
2. 15-axis dual-type precision leveling machine
3. Correction device (including trench tray)
4. Nine-roller servo sizing machine
5. Shearing machine
6. Electronic control system
7. Conveyor
8. Lifting palletizer
9. 4000mm in front of discharge platform
10. Hydraulic station
11. ファン
長さカットラインのオーバーフロー
油圧式シングルアームデコイラー（油圧式給餌トロリー付き）
1. structure
本機は、主軸部と伝動部から構成される単頭カンチレバー油圧伸縮巻出機です。
(1) The main shaft part is the core part of the machine. Its four blocks are connected to the sliding sleeve through T-shaped slanting blocks and are simultaneously sleeved on the hollow spindle. The core is connected to the sliding sleeve. The fan blocks expand and contract at the same time. When the fan block shrinks, it is beneficial to roll up, and when the fan block is opened, the steel coil is tightened to complete the unwinding.
(2) The pressure roller is located behind the unwinder. The pressing arm is controlled by the oil cylinder to drive the cantilever to be pressed down and picked up. When feeding, the cantilever pressing roller is pressed to press the steel coil to prevent loosening and facilitate the feeding.(3) The transmission part is located outside the frame. The motor and reducer drive the main shaft of the unwinder through the gear to rotate, and it can also realize unwinding and rewinding.
2. Technical Parameters
(1) Steel coil width: 500mm-1500mm
(2) Steel coil weight: 10T
(3) Cylinder stroke: 600mm
モーター駆動: 2.2kw
15軸デュアルタイプ精密レベリングマシン

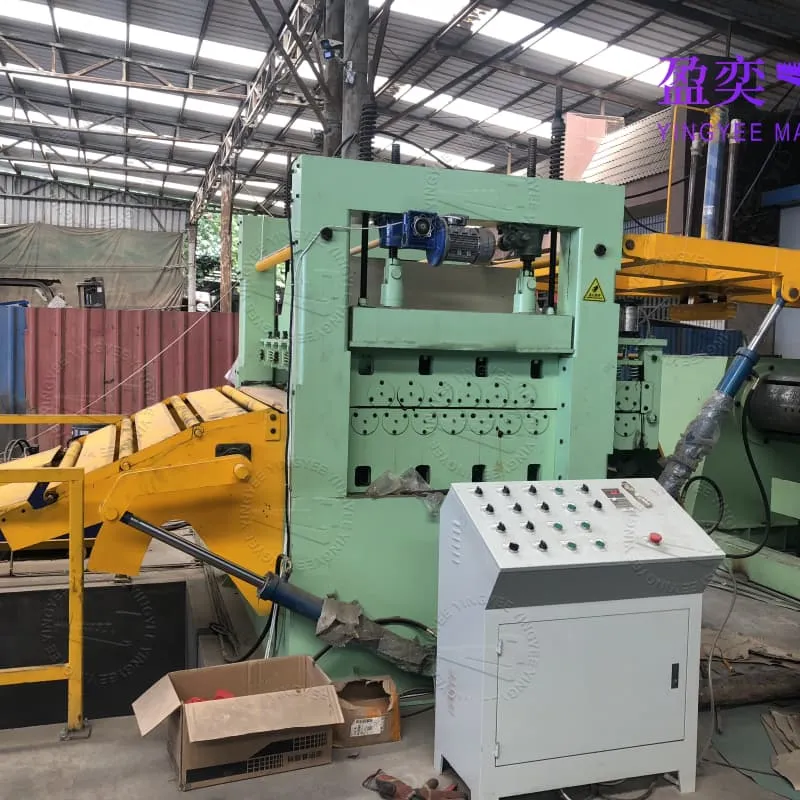

1. Leveling rollers: 15
2. Leveling roller diameter: 120mm
3. Leveling roller material 45 # steel
4. Motor power: 22KW
5. The leveling effect is according to the first grade coil, except for scrap or secondary board.
6. Leveling roller material: 45 # steel.
7. After tempering, quenching and grinding, the surface hardness reaches HRC58-62, and the surface finish is Ra1.6mm.
8. The upper row of work rolls are lifted vertically by a motor drive.
9. Roller bearings are used for the work roll bearings, which have a high bearing capacity and a long service life.
主動力システム：1つのモーターを集中駆動し、減速機伝動ボックスのユニバーサルジョイントで駆動します。
ピット
1. It uses the 2 groups of magic eyes to control the speed buffer between decoiler and slitting machines.
2. Magic eye is controlled by PLC.
3. Function: it is used to eliminate the different speed and make the plates which in wrong rail to back the right way. At first, it is used the oil cylinder to lifting the supporting and transition plates to make the head pass. When working, the transition and supporting plates lift down, the steel plates will be stored in the pit.
Correction device with Nine-roller servo sizing machine
矯正装置:
1. Guided by vertical guide rollers. Adjust the distance between the two guide rollers manually.
2. Minimum guide width 500mm
Nine-roller servo sizing machine specifications
1. Feeding rollers: 9
2. Leveling roller diameter:120mm
3. Fixed-length roller diameter: 160mm
4. Roller material 45 # steel
サーボモーター: 11kw
空気圧せん断機
空気圧せん断機:
主に左右のブラケット、コネクティングロッド、上下のツールホルダー、テーブル、駆動モーターなどで構成されています。
(1) Maximum cutting thickness: 3mm
(2) Shearing width: 1600mm
(3) Motor power: 11KW
コンベアベルト:
コンベアベルト:
1. Belt length :7500mm
2. Width: 1450mm
モーター 2.2kw（周波数制御）
リフティングパレタイザー
Lifting palletizer (Note: 4000mm lifting position, source of gas)
1. The blanking machine mainly carries out the blanking of the sheet, which is composed of a horizontally moving rack body and a vertical baffle.
2. The horizontal moving frame is manually adjusted according to different board widths, and the vertical baffle is adjusted according to different board lengths.
3. The stacking machine is mainly composed of stacking cylinder walking rollers and motors. Its function is to neatly stack the blanked plates.
主な技術的パラメータ
(1) Height of blanking rack: 2100mm
(2) Total length of blanking rack: 4300mm
(3) Total width: 2300mm
耐荷重ラック: 10000kg

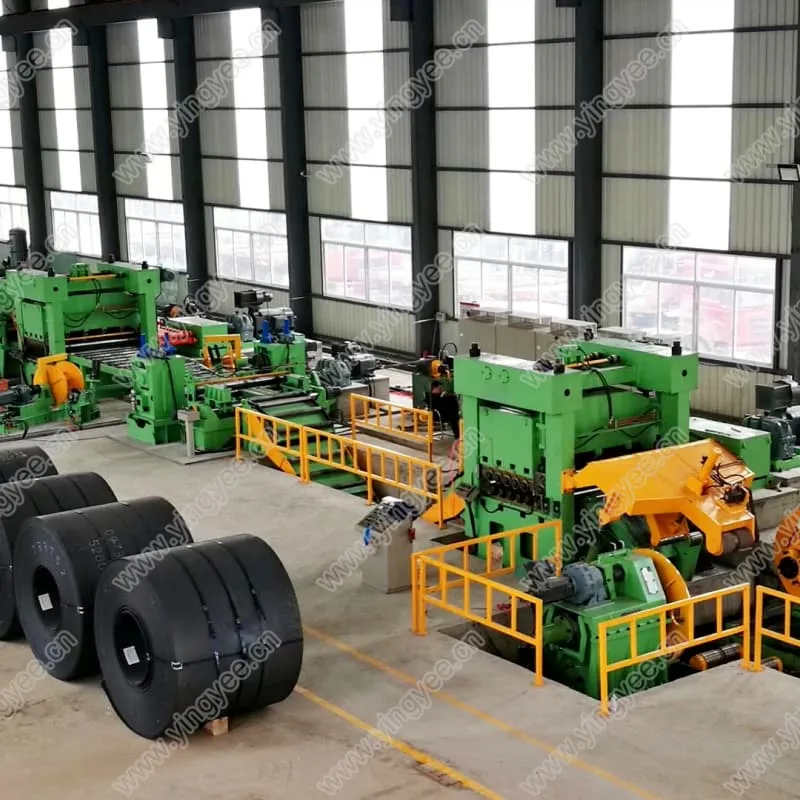

その他の参考写真:
当社のサービス:

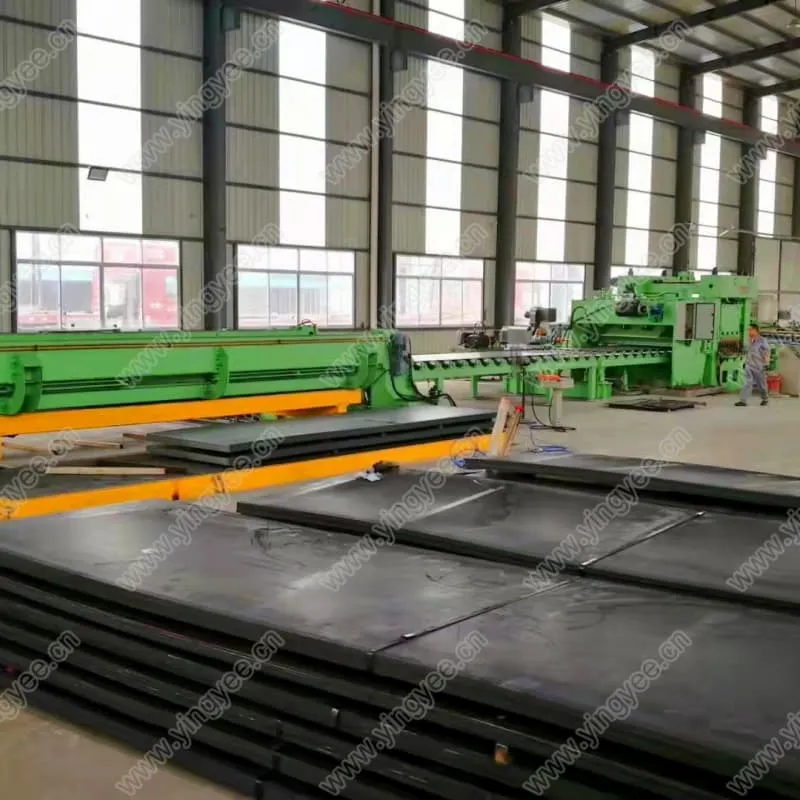

機械積載写真:
