Rolling Shutter Door Forming Machine: Complete Production Line Solution
Overview
Our Rolling Shutter Door Forming Machine is a fully automated, high-precision production line engineered to transform raw steel or aluminum coils into finished, interlocking shutter door slats in one seamless operation. Designed for manufacturers seeking to dominate the competitive door and security solutions market, this integrated system guarantees unmatched consistency, speed, and material efficiency.
Technikai paraméterek:
| Nyersanyag |
Előre festett tekercsek, horganyzott tekercsek, alumínium tekercsek |
| Anyagvastagság tartomány |
0,3-1,0 mm |
| Hengerek |
10+5 csoport |
| A görgők anyaga |
45# acél krómozott |
| Tengely anyaga és átmérője |
40mm, anyaga 40Cr |
| Formázási sebesség |
10-15m/perc |
| Fő motor teljesítmény |
5,5 kW |
| Hidraulikus teljesítmény |
3,0 kW |
| Vágás típusa |
Hidraulikus repülő fűrész |
| Irányító rendszer |
PLC |
| Feszültség |
380V/3fázis/50Hz |
| A vezetés módja |
1,0 hüvelykes egyláncos sebességváltó |
| Teljes súly |
2 tonna |
| A gép mérete |
H*Sz*Ma 6*0,8*1 m |

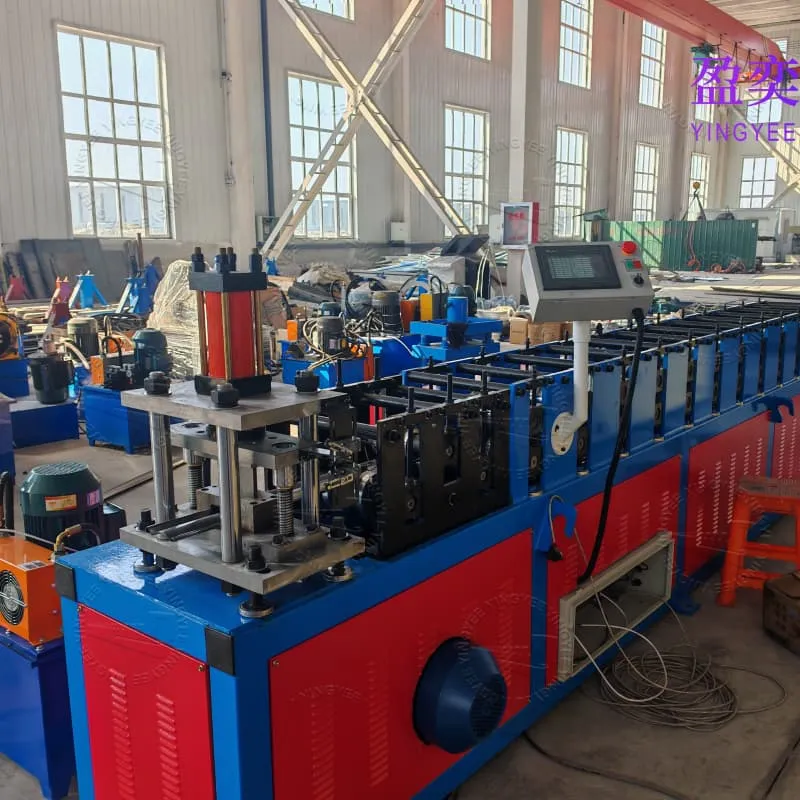

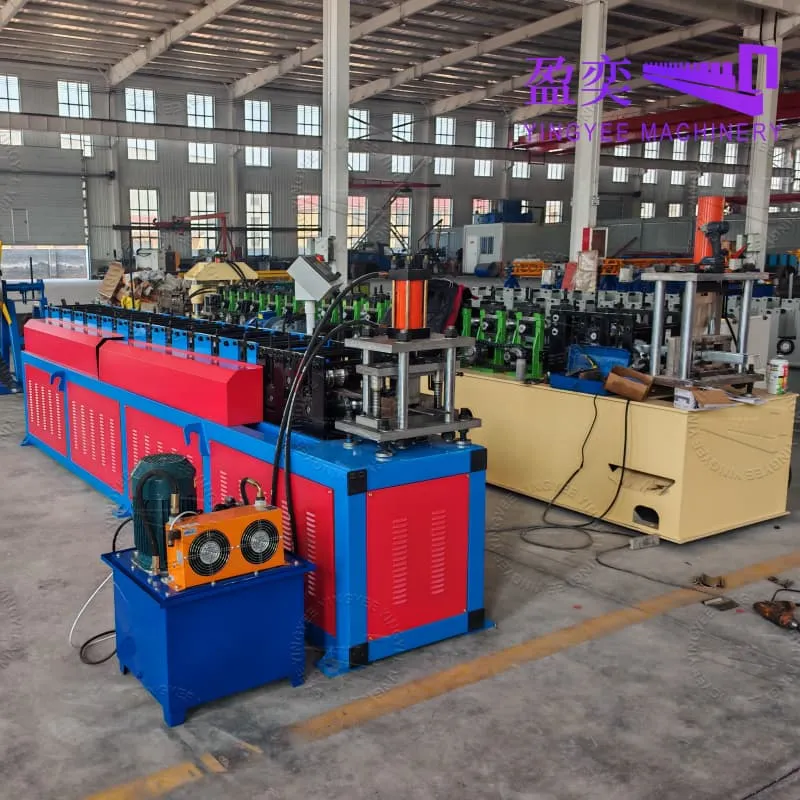

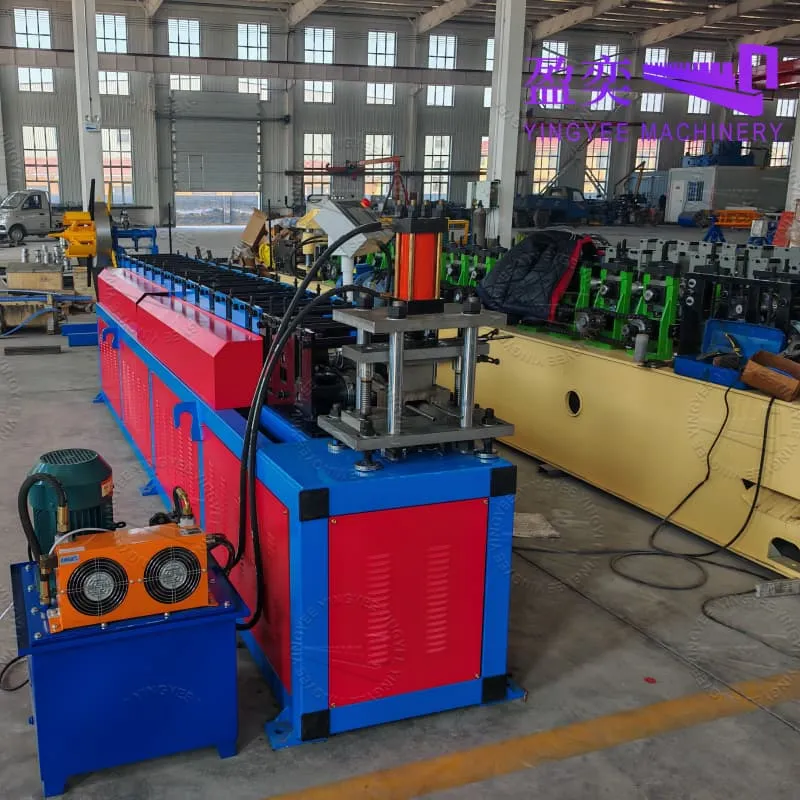

Képek a gépről:
Why Partner With Us?
-
End-to-End Solution: We deliver a turnkey line, including installation, commissioning, and comprehensive operator training.
-
Proven Global Reliability: Our machines are operating in over 20 countries, from small workshops to large-scale door manufacturers.
-
Engineered for Durability: Constructed with high-grade steel and hardened rollers for minimal maintenance and years of reliable service.
-
Dedicated Support: Access to remote technical assistance, readily available spare parts, and process optimization consulting.
Upgrade your manufacturing capabilities today. Contact our engineering team for a detailed quotation and a custom solution tailored to your target market and output goals.
