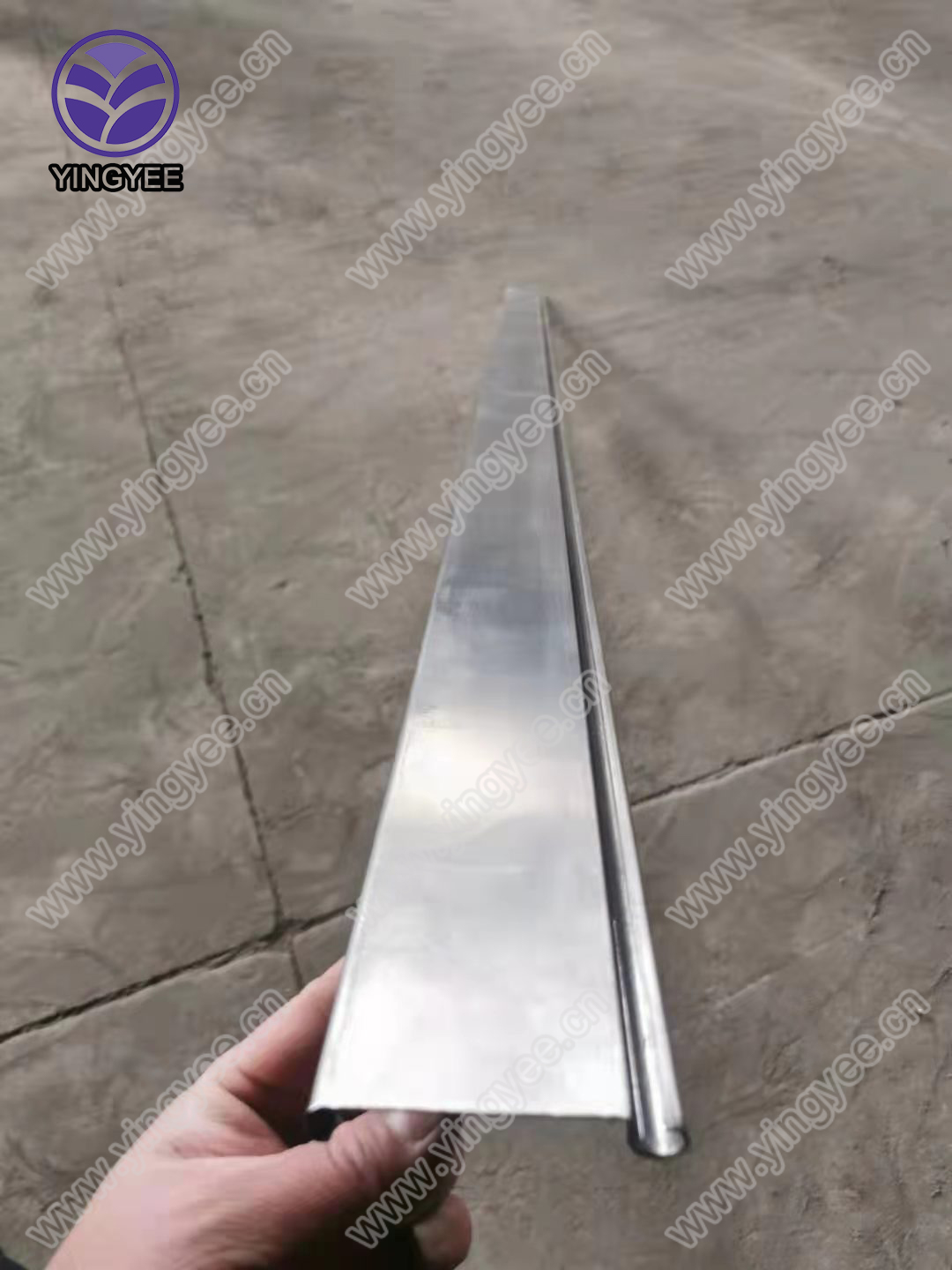

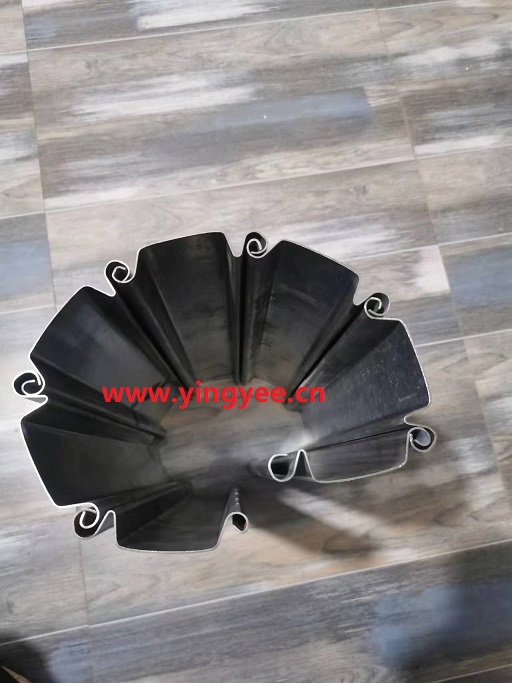

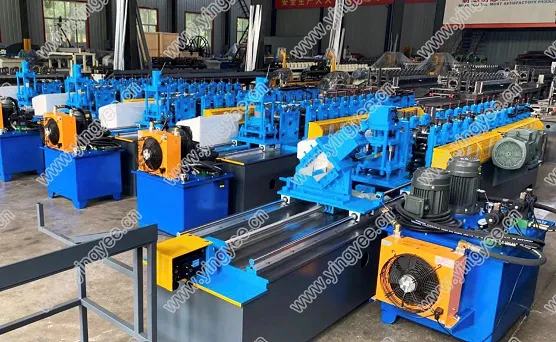

This machine with straightening part, the slat is no distorted, and the finished product is good.
It's torrist structure, the forming roller has high machining accuracy, and the rolleruse material as Cr12 with high precision work ，heat treatment, uselife is more than 10 years.
The electrical parts(PLC,encoder, control system) are all famous Chinese brands, with long service life and low failure rates.
The speed is 20m/min,high capacity, meet the need of production

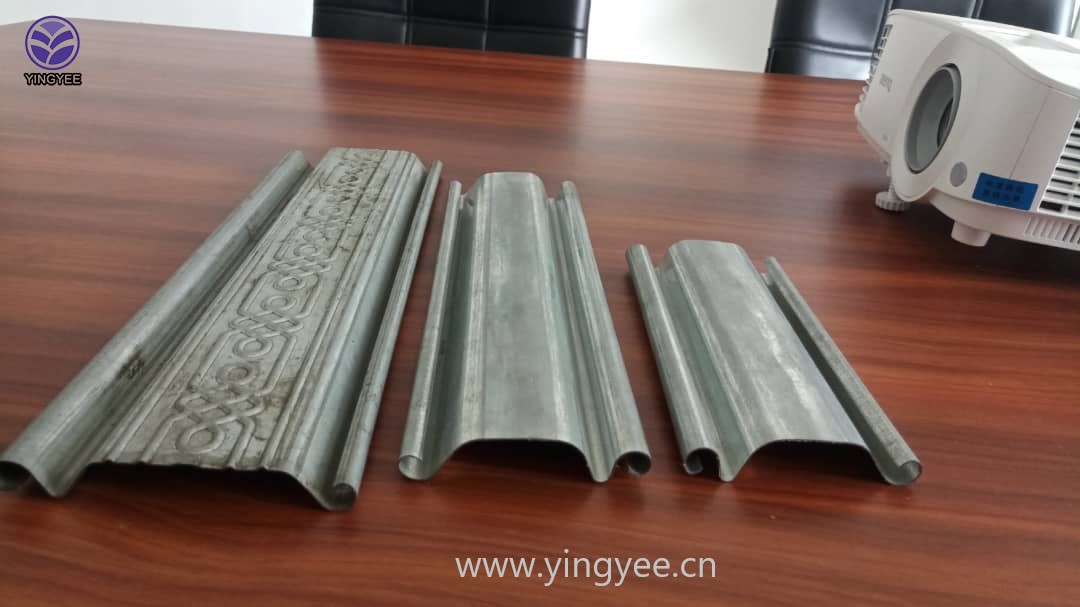

It can add Pattern roller, (about 600 $ )
|

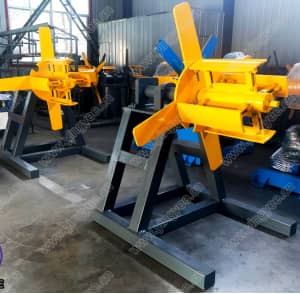

3 tons manual de-coiler |
Inner dia: Ø440mm– Ø560mm Max input feeding: 600mm Capacity: 3Tons |
|
Material Feeding and Guiding |
Guiding system consists of several rollers, and the width between them could control by the manual rollers. |
|
Forming part |
1. Matching material: color plate，Galvanized steel 2. Material thickness range: 0.4mm-0.8mm 3. Main motor power: 5.5kw 4. Hydraulic power: 3.0kw 5. Feeding width: 170mm 6. Forming speed: 10-15m /min 7. Quantity of stands: 15 rollers 8. Shaft Material and diameter: ￠50mm, 45# steel . 9.Tolerance: 3mm+/-1.0mm 10.Way Of Drive: 1.0 inch single chain driving 11.Controlling system: PLC system 12.Material of rollers: 45# steel ,heat treatment and chromed 13.Material of cutter blade: Cr 12 mould steel with quenched treatment HRC58-62 14.Voltage: 380V/ 3phase/ 50 Hz (as customer require） 15.Size of the roll forming machine: about 4. 3 m*1.0m*1.5m (L*W*H) |
|
Hydraulic system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job. Match equipment ：The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves. Power of the oil pump:3kw Hydraulic oil :40# |
|
PLC control |
Automatic length measurement Automatic quantity measurement Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved |
|

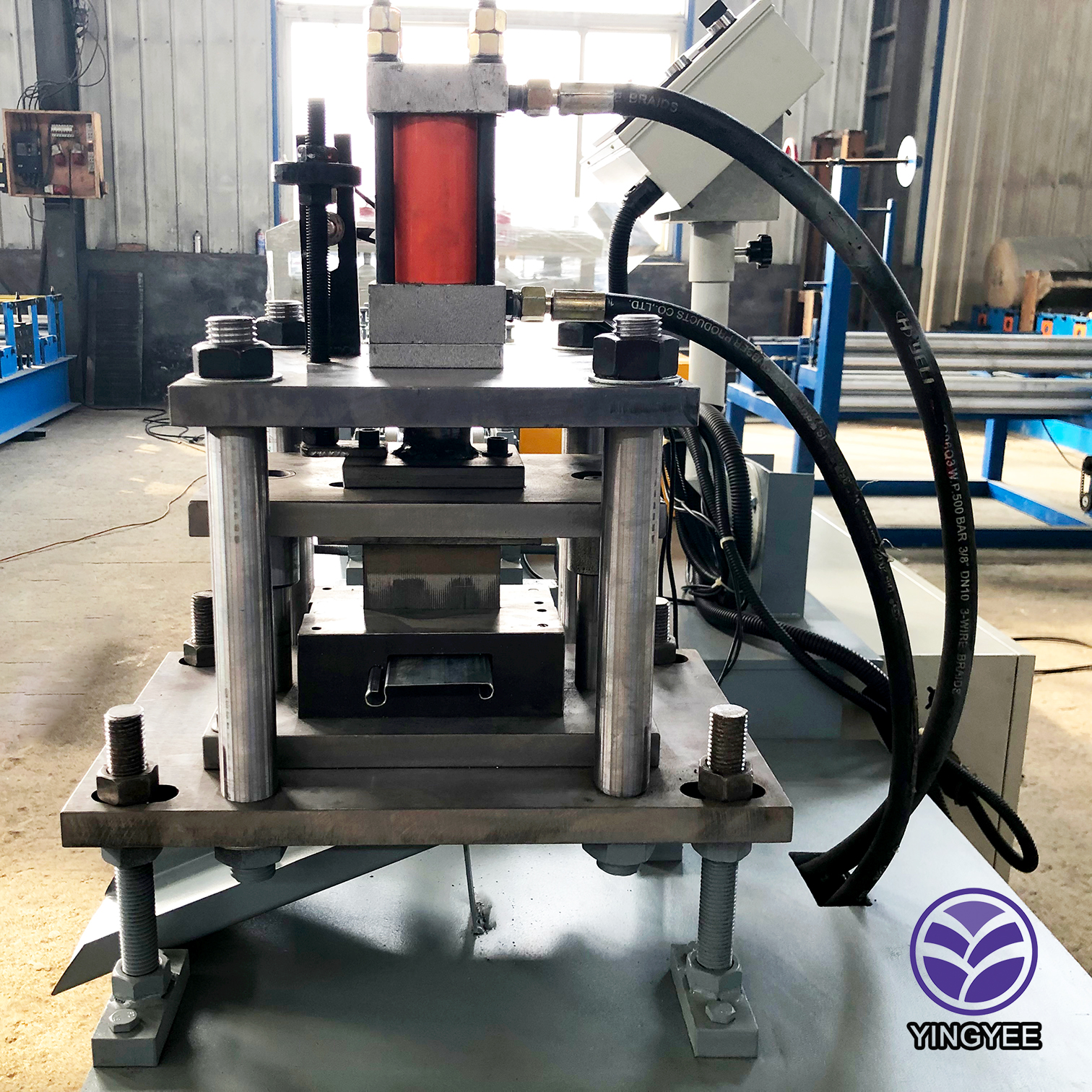

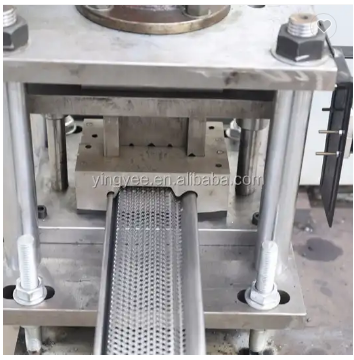

Hydraulic Cutting |
1.Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start. 2.Material of blade: CR12with heat treatment 3.Length measuring: Automatic length measuring |
