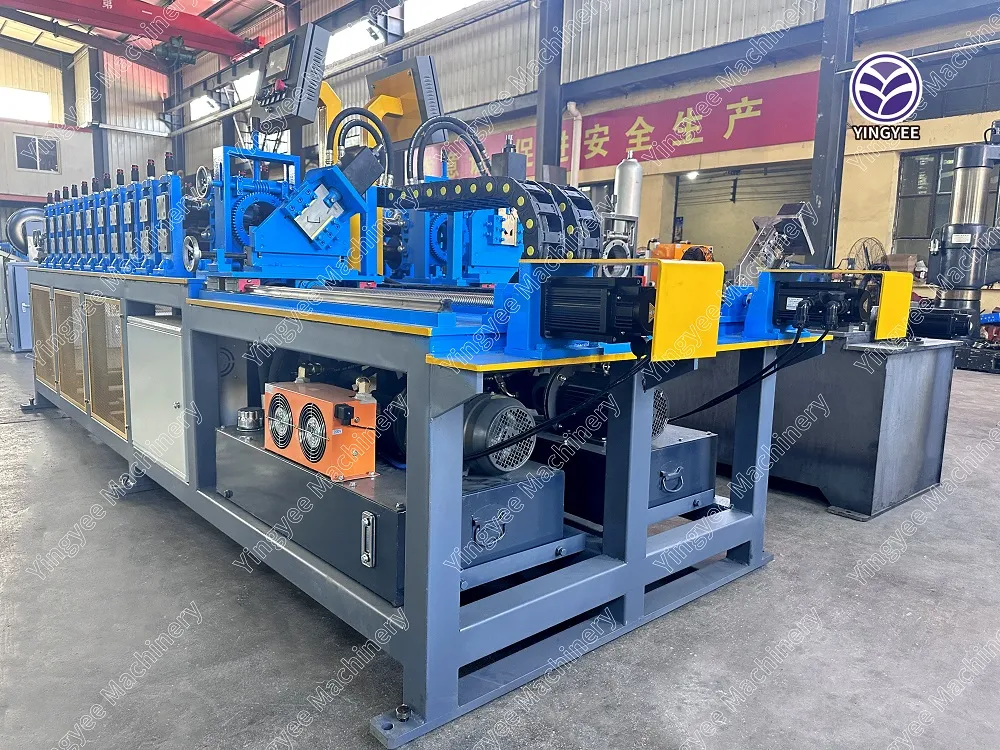

Double-out drywall channel roll forming machine 40m/min

KAYANA

Biyu-fita busasshen tashar mirgina inji 40m/min

Domin: babban tashar, tashar Furring, bangon bango da sauransu.

Amfani:

1. Ajiye sararin samaniya, zai iya samar da lokaci guda, dace da karamin taron.

2. 40m / min gudun samarwa, Hydraulic servo track motsi yanke, babban madaidaici kuma babu asarar sauri.

3. High Quality, nodular Iron simintin tsarin, Cr12 abu High hardness rollers.

forming machines
metal roll forming systems
roll forming line
roll forming process
roll forming systems
tambaya yanzu

Cikakken Bayani

1. Ƙarfe mai haske an yi shi ne da igiyoyin ƙarfe na galvanized ko faranti na bakin ciki wanda aka yi birgima ta hanyar lankwasa sanyi ko tambari. Yana da abũbuwan amfãni daga babban ƙarfi, mai kyau juriya na wuta, sauƙi shigarwa da kuma karfi m. Haske karfe keels suna m zuwa kashi biyu: rufi keels da bango keels;

2. Keil ɗin rufi yana kunshe da kebul masu ɗaukar kaya, sutura masu sutura da kayan haɗi daban-daban. Babban keels sun kasu kashi uku: 38, 50 da 60. 38 ana amfani da shi don rufin da ba za a iya tafiya ba tare da tazarar rataye na 900 ~ 1200 mm, 50 ana amfani da shi don ɗakunan da za a iya tafiya tare da tazarar rataye na 900 ~ 1200 mm. , kuma 60 ana amfani dashi don tafiya da silin mai nauyi tare da tazarar rataye na 1500 mm. An raba keels masu taimako zuwa 50 da 60, waɗanda aka yi amfani da su tare da manyan keels. Kel ɗin bangon ya ƙunshi keel ɗin giciye, ƙera takalmin gyaran kafa da na'urorin haɗi daban-daban, kuma akwai jeri huɗu: 50, 75, 100 da 150.

Injin mu na iya samar da keels guda biyu daban-daban a lokaci guda, adana sararin samaniya, injin mai zaman kansa da takin kayan aiki, wanda ya dace da masu amfani da ƙaramin yanki.

Tsari (Tsarin)

Decoiler tare da Leveling na'urar → Mai ba da sabis → Injin ƙwanƙwasa → Na'urar ciyarwa → Na'ura mai ƙira → Yanke Sashe → Teburin nadi → Injin tari ta atomatik → Kammala samfurin.

Processes and components

5 tons hydraulic decoiler tare da na'urar leveing	1 saiti
80 ton Yangli na'ura mai naushi tare da mai ciyar da servo	1 saiti
Na'urar ciyarwa	1 saiti
Babban na'ura mai ƙira	1 saiti
Hydraulic track motsi yanke na'urar	1 saiti
Tashar ruwa	1 saiti
Injin tari ta atomatik	1 saiti
PLC Control tsarin	1 saiti

Na asali Specification

A'a.	Abubuwa	Spec:
1	Kayan abu	Kauri: 1.2-2.5mm Nisa mai inganci: Dangane da zane Abu: GI/GL/CRC
2	Tushen wutan lantarki	380V, 60HZ, 3 lokaci (ko musamman)
3	Ƙarfin iko	Ƙarfin mota: 11kw*2; Na'ura mai aiki da karfin ruwa tashar: 11kw Motar mai ɗaukar nauyi: 5.5kw Motar servo na fassara: 2.2kw Motar Trolley: 2.2kw
4	Gudu	0-10m/min
5	Yawan rollers	18 rollers
6	Tsarin sarrafawa	Tsarin kula da PLC; Control panel: Button-type canji da tabawa;
7	Nau'in yanke	Na'ura mai aiki da karfin ruwa track motsi yankan
8	Girma	Kimanin (LHW) 40mx2.5mx2m
