  • CZ purlin machine adjusted by manual
    Basic Info Delive
    inquire now

  • Product Detail

    Basic Info

    Delivery Time:30 Days

    Warranty:12 Months

    Material Of Cutting Blade:Cr12

    Type:CZ Purlin Changeable Roll Forming Machine

    Cutting Mode:Hydraulic

    Voltage:At Customer’s Request

    Way Of Driven:Chain Transmission

    Material:Steel Coil, Galvanized, PPGI, Aluminum

    Speed:16-18m/min(including Punching And Cutting Time)

    Control System:Panasonic/Mitsubishi PLC

    Forming Speed:16-18m/min

    Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Xiamen

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

    HS Code:84552210

    Port:Tianjin Xingang

    Product Description

    C/Z/U Purlin Roll Forming Machine

    The leading suppliers in China for the C Z purlin changeable roll formingmachine in this metal processing machinery industry. C & Z automatic changeable purlin roll forming machine is used to roll form C purlin and Z purlin of metal buildings construction. It is no needing to replace any parts or change the spacer position on the roll form line for production of C purlin to Z purlin, only need to change side roll forming tooling to get the C and Z purlin production. The profile width can be adjusted by hand or PLC. It is optional.



    Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

    Working process

    Technical parameters:



    Matching material Steel coil, Galvanized, PPGI, Aluminum
    Material thickness range According to drawings
    Main motor power 15KW
    Speed 6-8m/min (include punching and cutting time)
    Hydraulic power 5.5KW
    Quantity of rollers About 18
    Shaft diameter and material 70mm, material is 40Cr
    Material of rollers 45# steel with chromed
    Way of driven chain transmission
    Controlling system PLC
    Voltage 380V/30Phase/50Hz
    Total weight About 10 tons
    Size of the machine L*W*H 10m*1.2m*1.6m

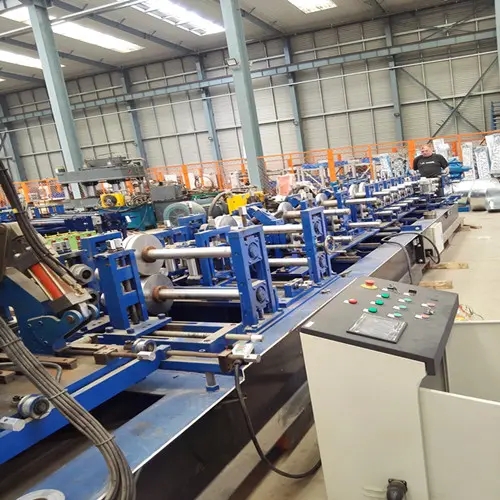

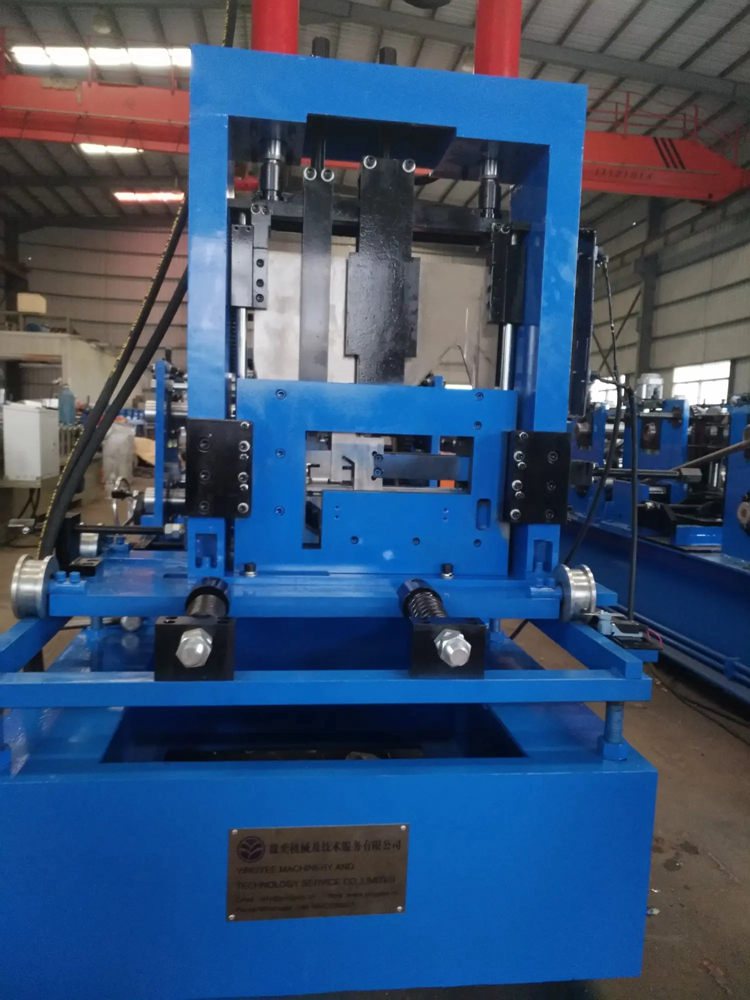

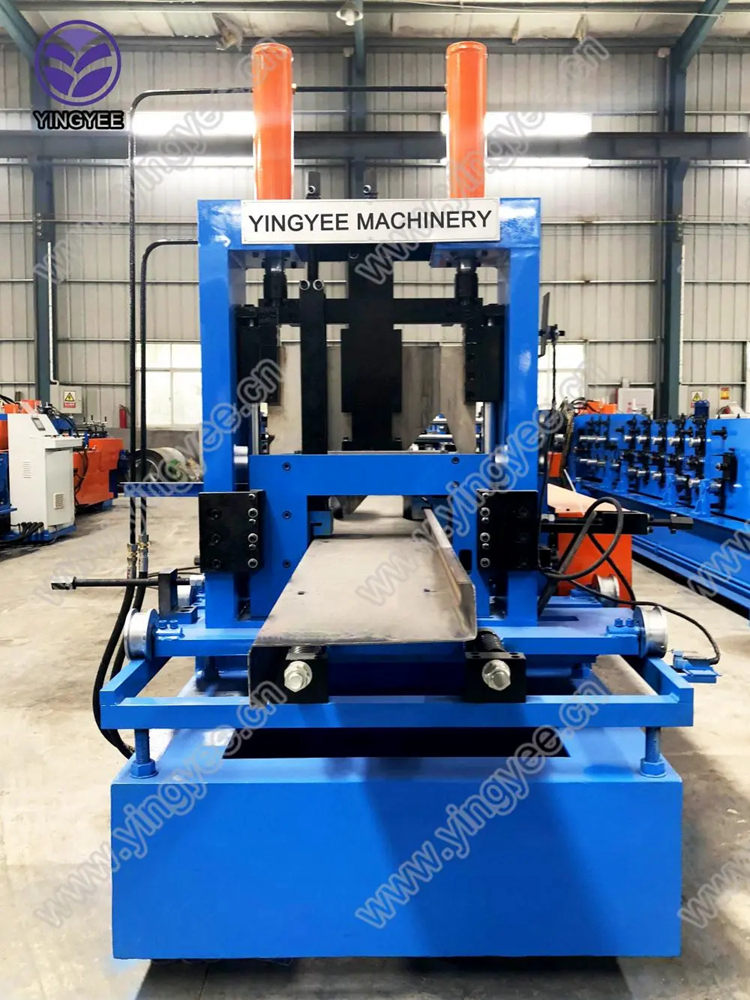

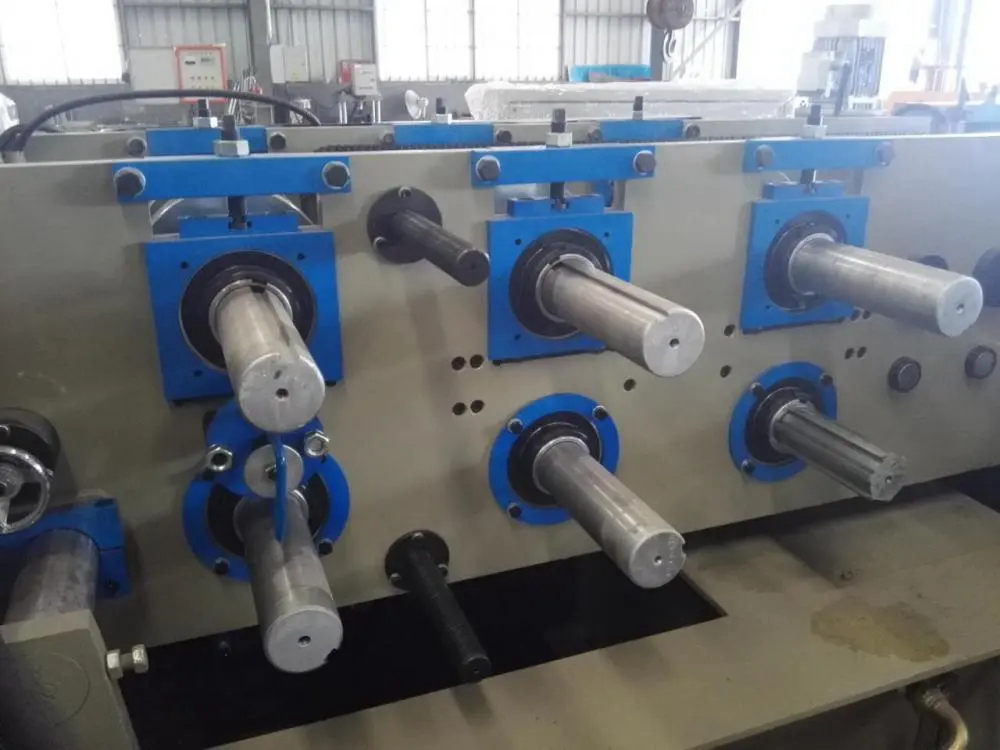

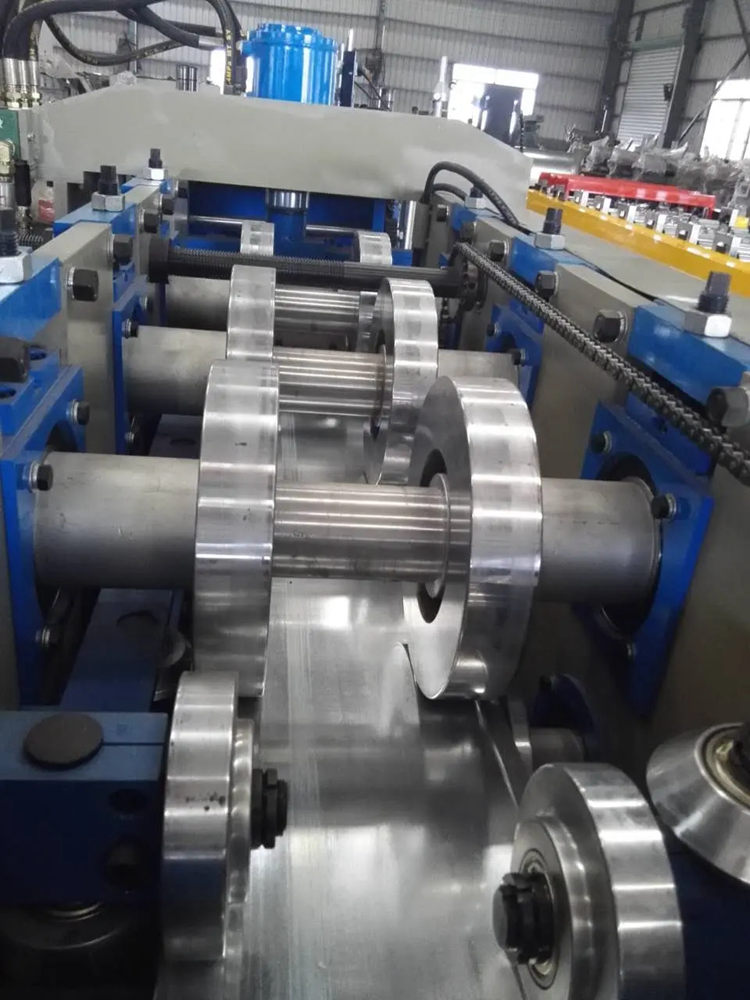

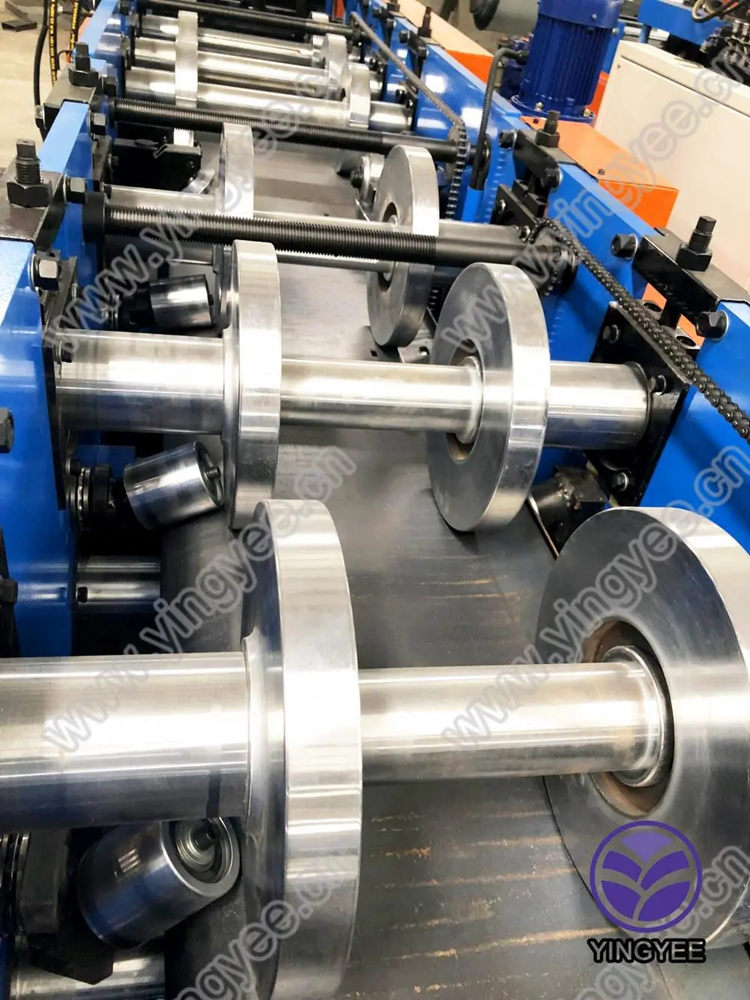

    Pictures of machine:



    C/Z purlin roll forming machine C/Z purlin roll forming machine

    C/Z purlin roll forming machine C/Z purlin roll forming machine

    C/Z purlin roll forming machine C/Z purlin roll forming machine

    purlin purlin

    purlin purlin

    C/Z purlin roll forming machine

    C/Z purlin roll forming machine





    Company information:

    YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

    YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

    • Roof roll forming machine
    • Roller Shutter Door Roll Forming Machine
    • C and Z purlin roll forming machine
    • Downpipe Roll Forming Machine
    • Light Keel Roll Forming Machine
    • Shearing Machine
    • Hydraulic decoiler
    • Bending machine
    • Slitting machine



    FAQ:

    Training and Installation :
    1. We offer installation service local in paid, reasonable charge.
    2. QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.


    Certification and after service:
    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.


    Our advantage:
    1. Short delivery period
    2. Effective communication
    3. Interface customized.

    Looking for ideal Manual CZ Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Manual Adjusted CZ Purlin Machine are quality guaranteed. We are China Origin Factory of CZ Purlin Machine Adjusted by Manual. If you have any question, please feel free to contact us.
