location: HOME > PRODUCTS
  • Product Detail

    Basic Info

    Model No.:YY–CZP—003

    Type:Roof Sheet Roll Forming Machine

    Warranty:12 Months

    Delivery Time:30 Days

    Material:Steel Coil, Galvanized, PPGI, Aluminum

    Speed:6-8m/min(including Punching And Cutting Time)

    Control System:Panasonic/Mitsubishi PLC

    Way Of Driven:Chain Transmission

    Cutting Mode:Hydraulic

    Material Of Cutting Blade:Cr12

    Additional Info

    Packaging:PLASTIC FILM, WOODEN CASE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean,Land,Air

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

    HS Code:84552210

    Port:TIANJIN,XIAMEN,SHANGHAI

    Product Description

    CZ section purlin brackets forming machine

    Chinese leading supplier for the C Z purlin changeable roll forming line in this metal processing machinery industry. C & Z automatic changeable purline roll forming machine is used to roll form C purlin and Z Purlin of metal buildings. CZ Purlin with Punching machine is no need to change any parts spacers on the roll form line for production of C purlin to Z purlin, only need to rotate side roll forming tooling to change the C and Z purlin profile. The profile width can be adjusted by hand wheel or power control. It is optional.





    Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

    Working process

    Technical parameters:



    Matching material Steel coil, Galvanized, PPGI, Aluminum
    Material thickness range According to drawings
    Main motor power 18.5W
    Forming speed 10-18min (not include punching and cutting time)
    Hydraulic power 7.5KW
    Quantity of rollers About 18
    Shaft diameter and material 70mm, material is 45#steel
    Material of rollers Gcr15 or Cr12 with chromed
    Way of driven chain transmission
    Controlling system PLC
    Voltage 380V/30Phase/50Hz (as customer require)
    Total weight About 12 tons
    Size of the machine L*W*H 10m*1.2m*1.6m

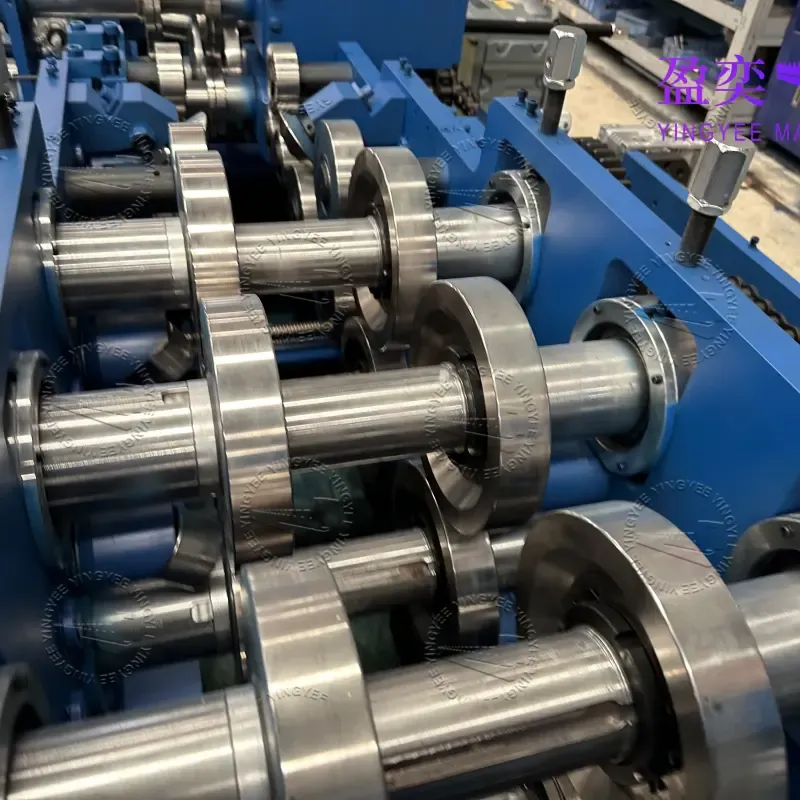

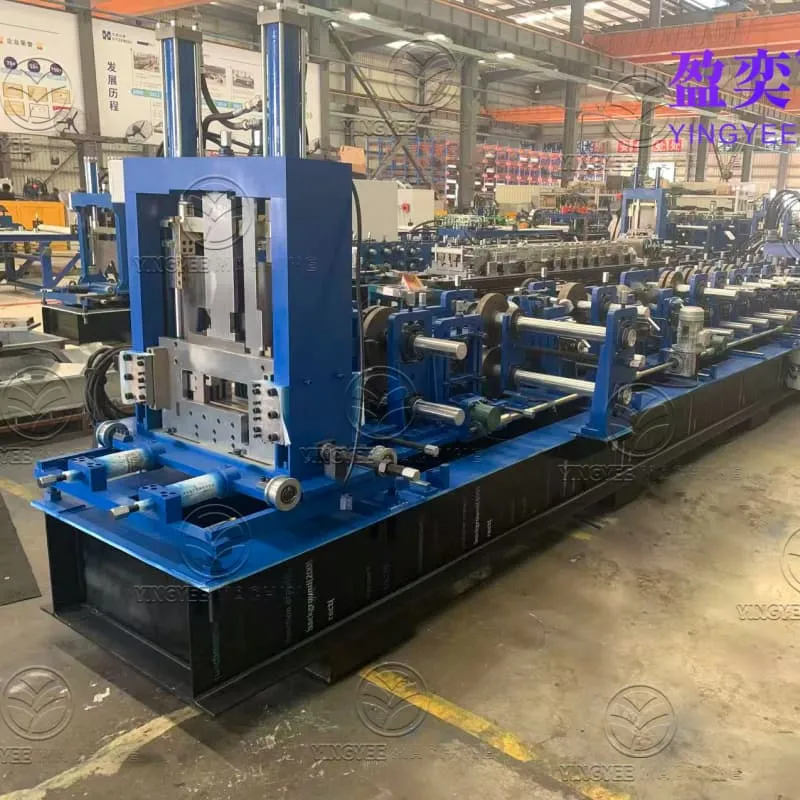

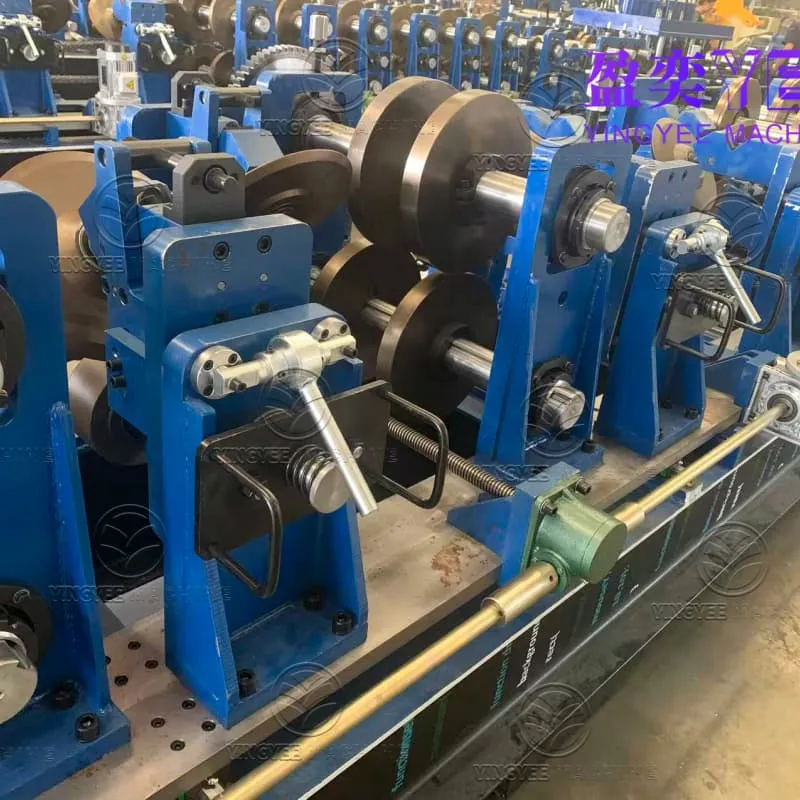

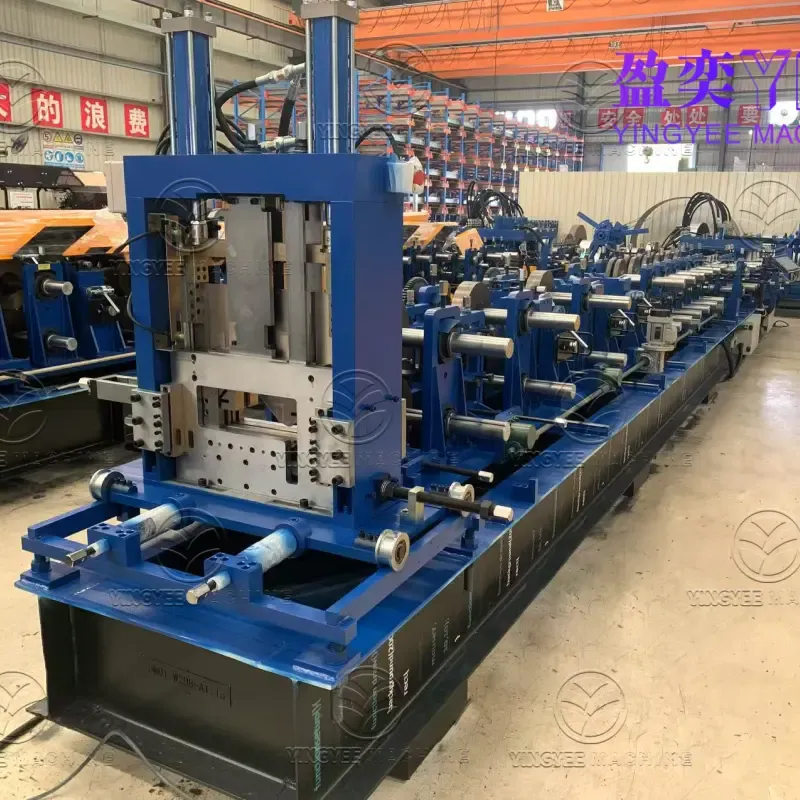

    Pictures of machine:



    Cz Purlin Machine From Yingyee004Cz Purlin Machine From Yingyee012Cz Purlin Machine From Yingyee017Cz Purlin Machine From Yingyee019Cz Purlin Machine From Yingyee032

    C/Z purlin roll forming machine

    C/Z purlin roll forming machine



    Company information:

    YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

    YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

    • Roof roll forming machine
    • Roller Shutter Door Roll Forming Machine
    • C and Z purlin roll forming machine
    • Downpipe Roll Forming Machine
    • Light Keel Roll Forming Machine
    • Shearing Machine
    • Hydraulic decoiler
    • Bending machine
    • Slitting machine



    FAQ:

    Training and Installation :
    1. We offer installation service local in paid, reasonable charge.

    2. QT test is welcome and professional.

    3. manual and using guide is optional if no visiting and no installation.


    Certification and after service:

    1. Match the technology standard, ISO producing certification

    2. CE certification

    3. 12 months warranty since the delivery. Board.


    Our advantage:

    1. Short delivery period

    2. Effective communication

    3. Interface customized.

    Looking for ideal Z Purlin Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the C Channel Rolling Machine are quality guaranteed. We are China Origin Factory of C Section Purlin Machine. If you have any question, please feel free to contact us.

    Product Categories : C/Z/U Purlin Changeable Roll Forming Machine
