  • automatic round downspout roll forming machine
    Basic Info Model
    inquire now

  • Product Detail

    Basic Info

    Model No.:YY–DSP—001

    Delivery Time:30 Days

    Warranty:12 Months

    After Service:Engineers Available To Service Machinery Overseas

    Type:Pipe Production Line

    Cutting Mode:Flying Saw Cutting Or Mould Cutting

    Material:GI, PPGI, Aluminum Coils

    Material Of Cutting Blade:Cr12

    Forming Speed:25-30m/min

    Voltage:380V/3Phase/50Hz Or At Your Request

    Way Of Driven:Chain Or Gear Box

    Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

    HS Code:84552210

    Port:Tianjin Xingang

    Product Description

    Round downpipe downspout roll forming machine

    The products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

    Working Flow: Decoiler – Feeding guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

    Working process

    Technical parameters:







    Raw material PPGI or GI
    Material thickness range 0.2-0.8mm
    Rollers 18 rows
    Material of forming rollers 45# steel with chromed
    Shaft diameter and mateiral 76mm, material is 40Cr
    Material of cutting blade Cr12 mould steel with quenched treatment
    Forming speed 12-15m/min(excluding cutting stoping time)
    Main motor power 4 KW
    Hydraulic station power 3KW
    Mode of cutting Hydraulic cutting or flying saw cutting or mould cutting
    Control system PLC Frequency Control System with touch screen

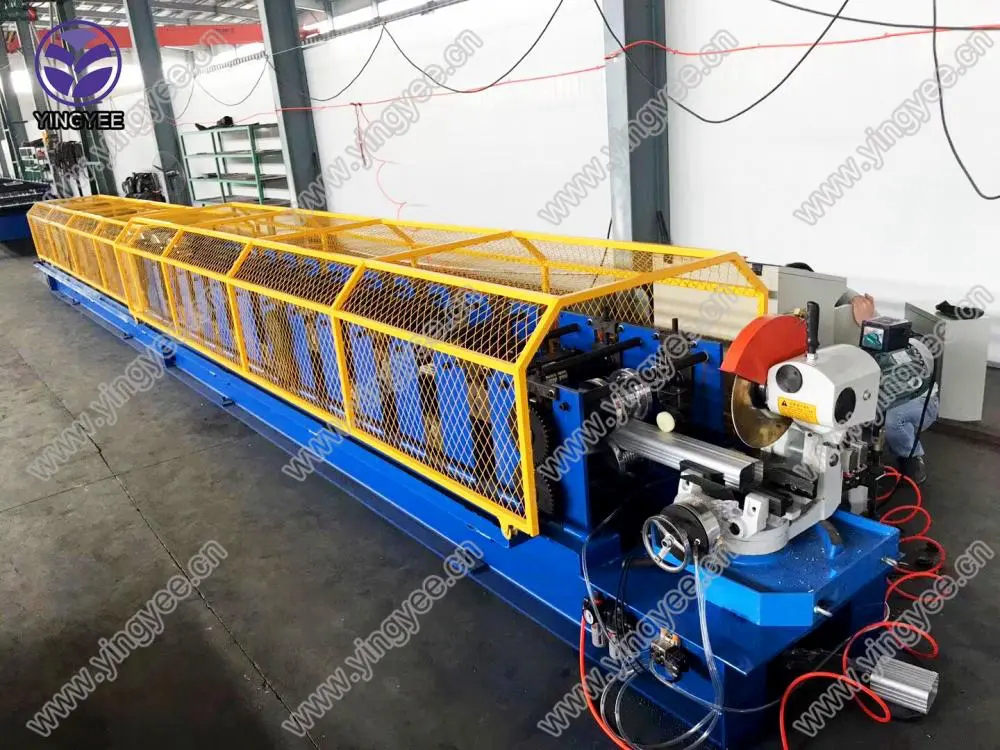

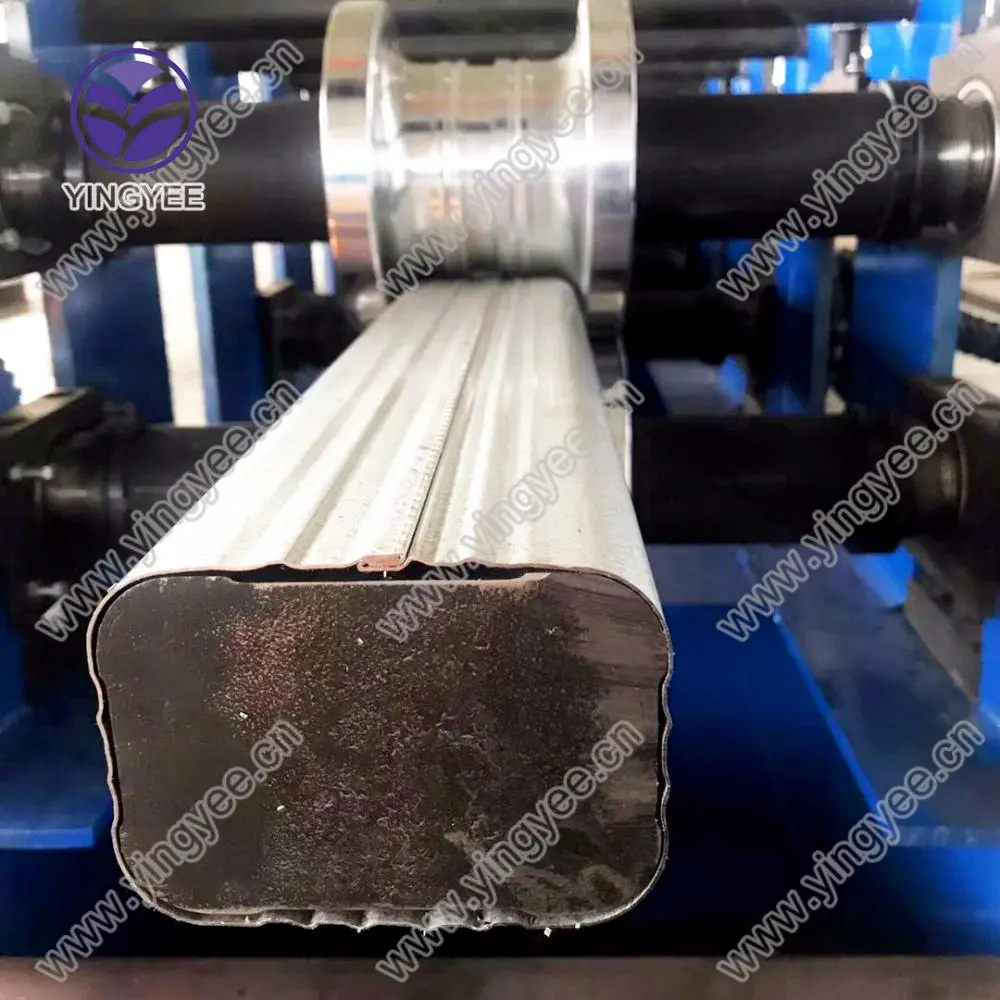

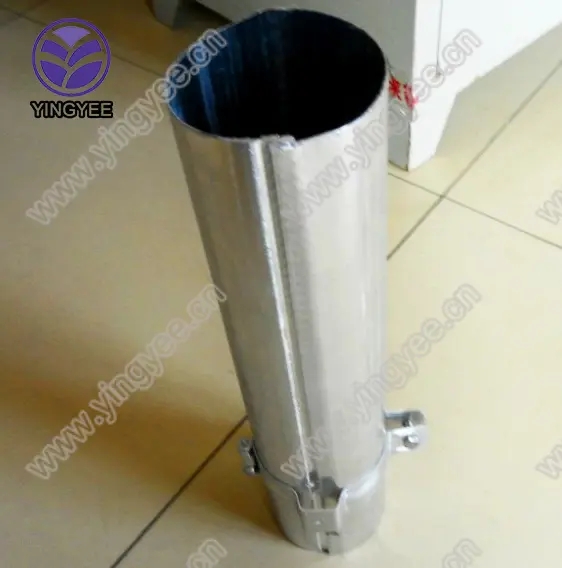

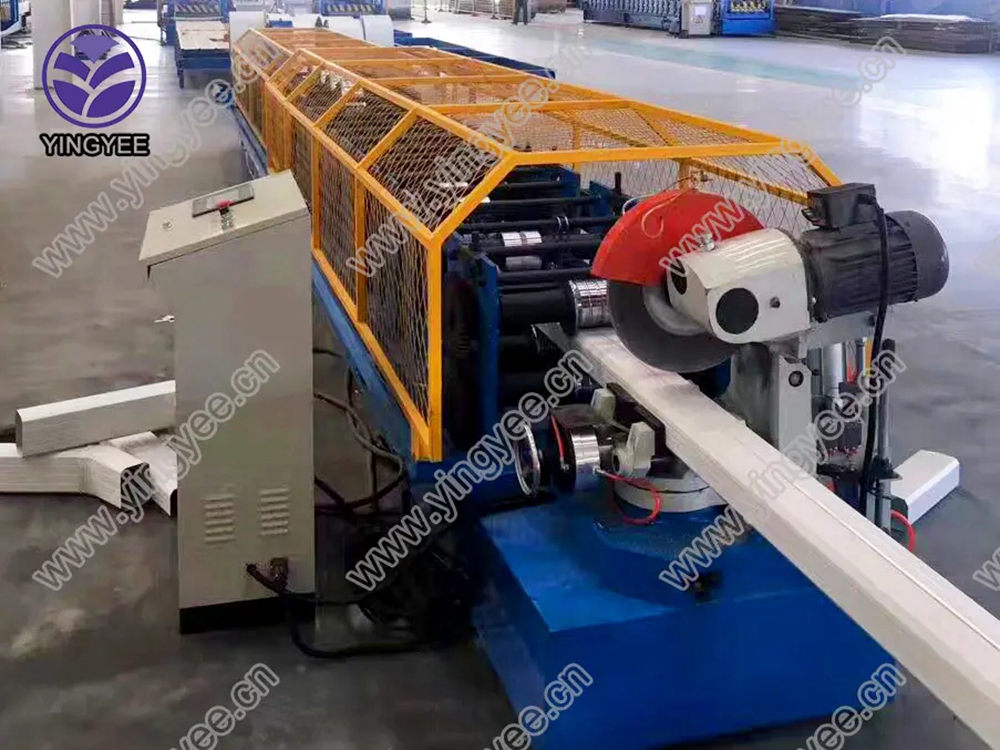

    Pictures of machine:

    Downspout Roll Forming Machine From Yingyee11



    Company information:

    YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

    YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

    • Roof roll forming machine
    • Roller Shutter Door Roll Forming Machine
    • C and Z purlin roll forming machine
    • Downpipe Roll Forming Machine
    • Light Keel Roll Forming Machine
    • Shearing Machine
    • Hydraulic decoiler
    • Bending machine
    • Slitting machine

    FAQ:

    Training and Installation :
    1. We offer installation service local in paid, reasonable charge.
    2. QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.


    Certification and after service:
    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.


    Our advantage:
    1. Short delivery period
    2. Effective communication
    3. Interface customized.

    Looking for ideal Round Downpipe Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Fast Speed Round Downpipe Machine are quality guaranteed. We are China Origin Factory of Automatic Downspout Roll Forming Machine. If you have any question, please feel free to contact us.

    Product Categories : Downpipe Roll Forming Machine > Round Downpipe Roll Forming Machine
