  • Automatic CZ Purlin Roll Forming Machine
    Basic Info Delive
  • Product Detail

    Basic Info

    Delivery Time:30 Days

    Warranty:12 Months

    Material Of Cutting Blade:Cr12

    Type:Roof Sheet Roll Forming Machine

    Cutting Mode:Hydraulic

    Voltage:At Customer’s Request

    Way Of Driven:Chain Transmission

    Material:Steel Coil, Galvanized, PPGI, Aluminum

    Speed:6-8m/min(including Punching And Cutting Time)

    Control System:Panasonic/Mitsubishi PLC

    Additional Info


    Productivity:200 sets/year



    Place of Origin:Hebei

    Supply Ability:200 sets/year


    Product Description

    C/Z/U Purlin Roll Forming Machine

    We manufacture the machines as per clients` specific needs and provide insights about the machine and its working process. We also apply hydraulic transmission system in order to achieve stable running or production state. We supply purlin roll forming machine at competitive prices comparing to our counterparts throughout the world. We are honored to receive such great feedbacks from our previous customer and we further want to retain the quality for years to come.

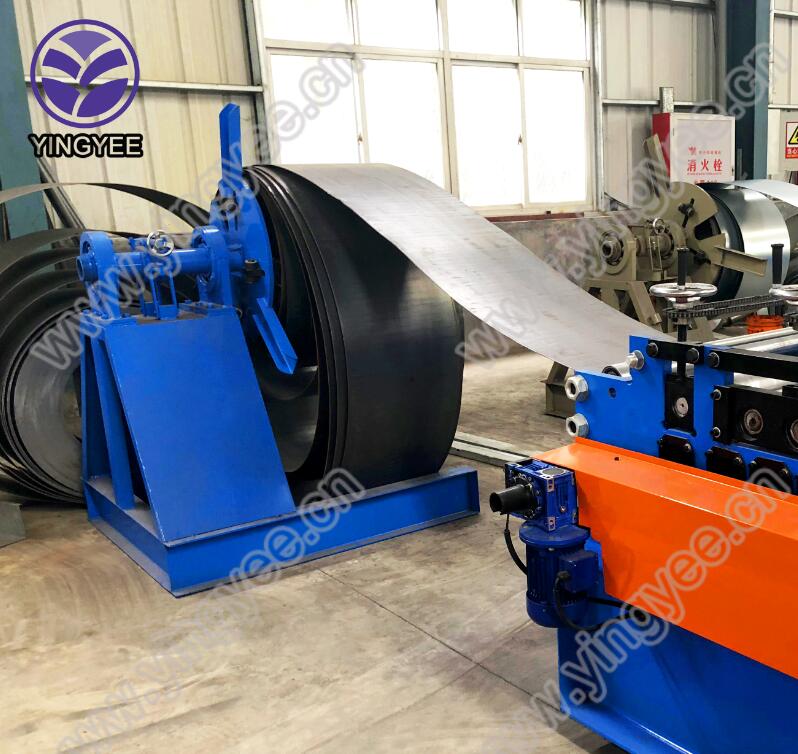

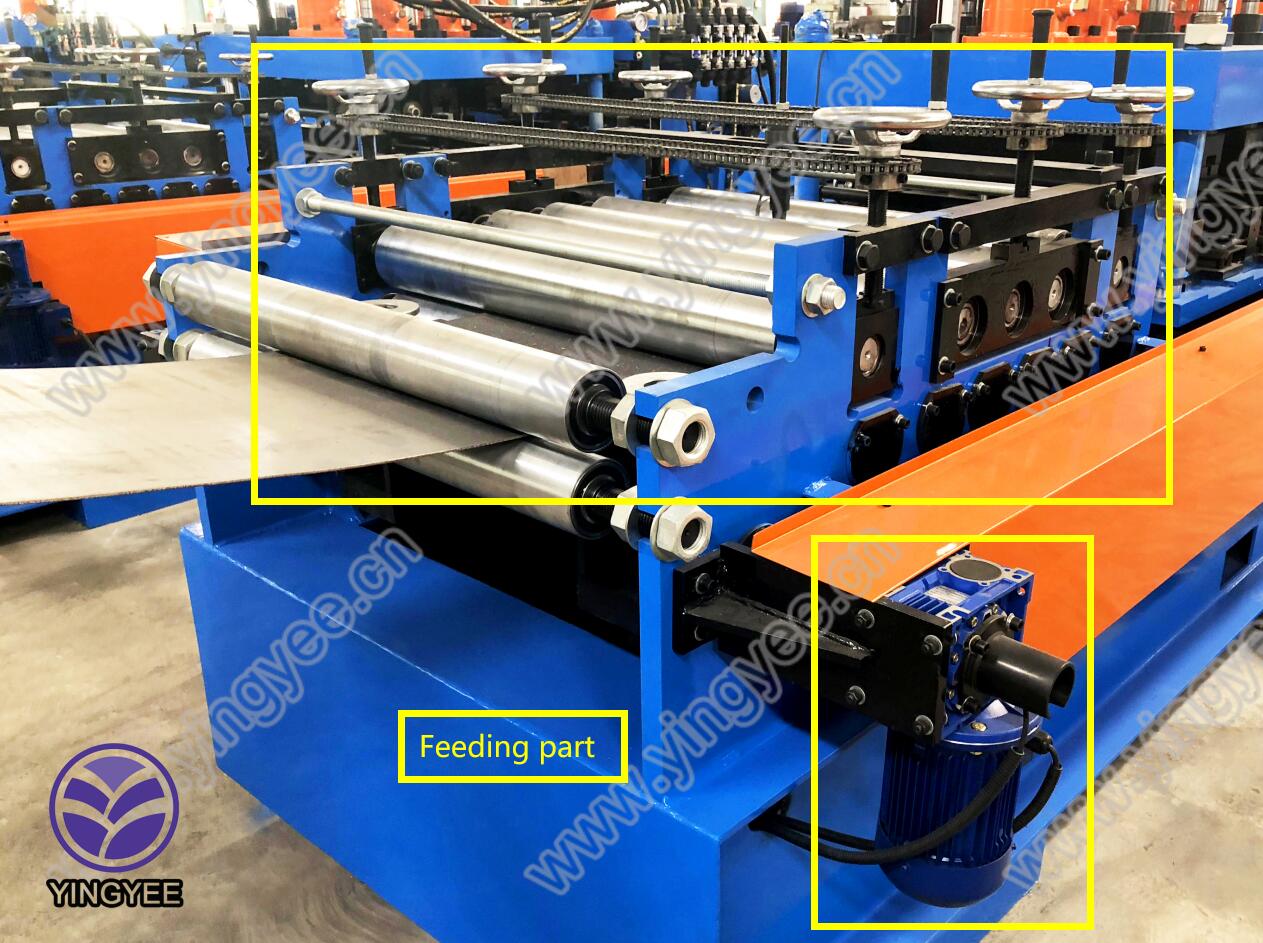

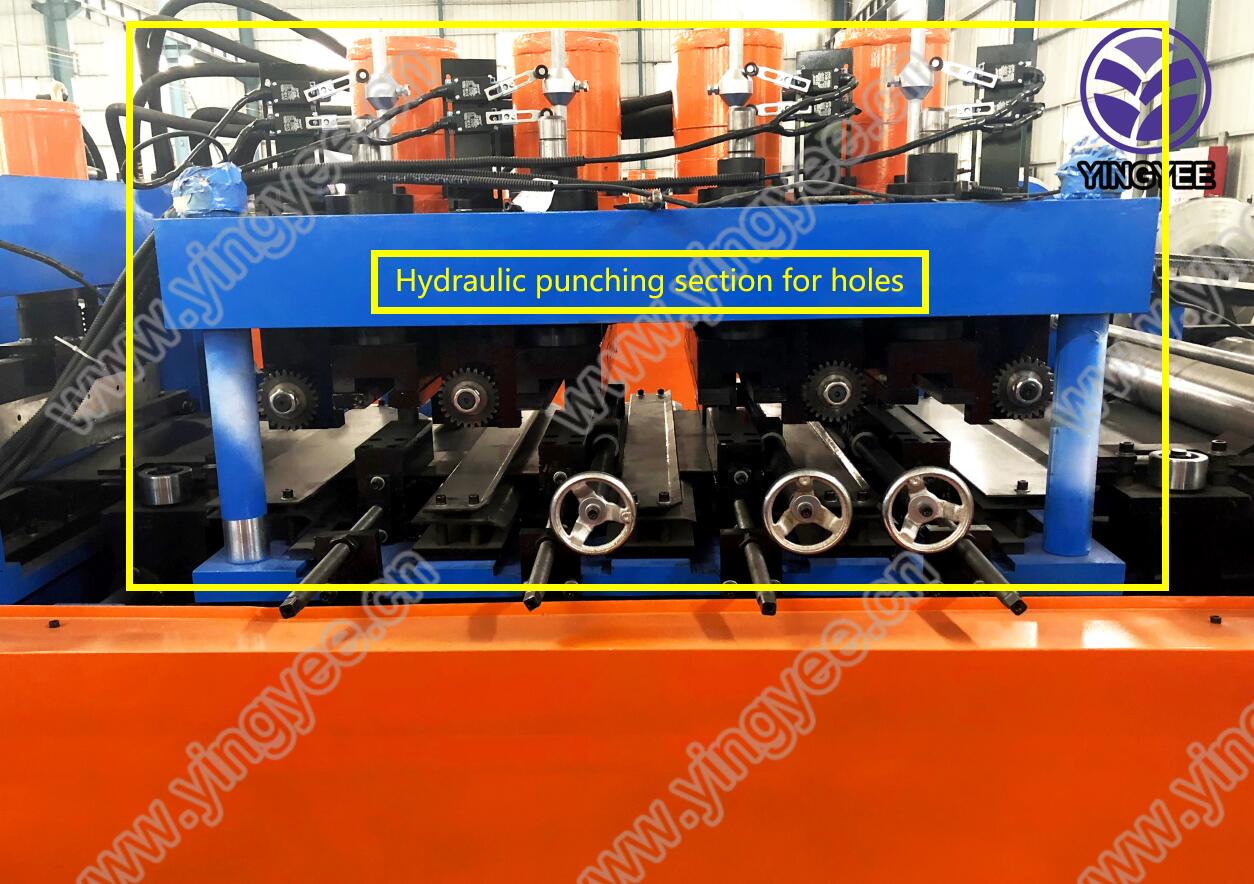

    Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

    Working process

    Technical parameters:


    Matching material Steel coil, Galvanized, PPGI, Aluminum
    Material thickness range According to drawings

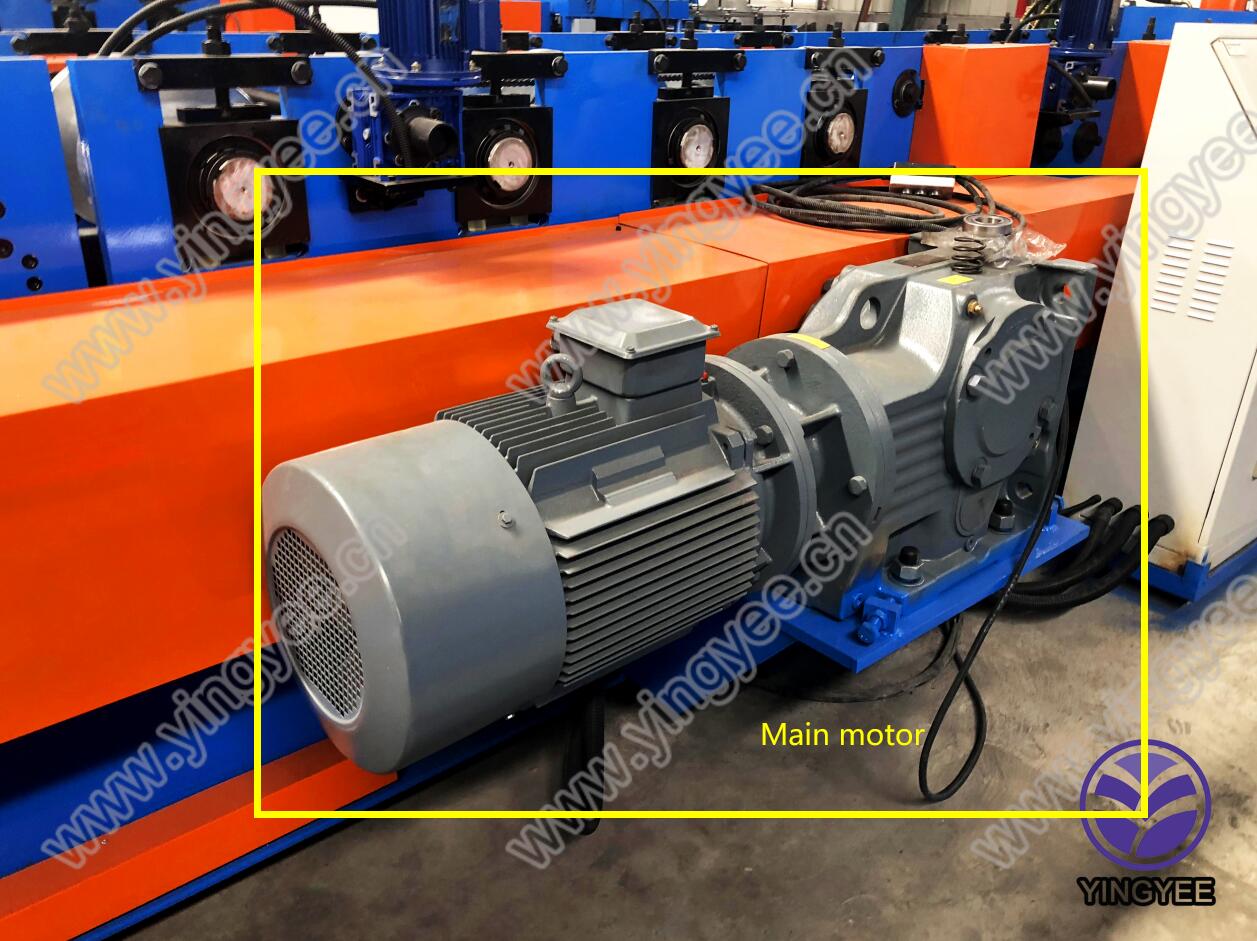

    Main motor power 15KW
    Forming speed 6-8m/min (include punching and cutting time)
    Hydraulic power 5.5KW

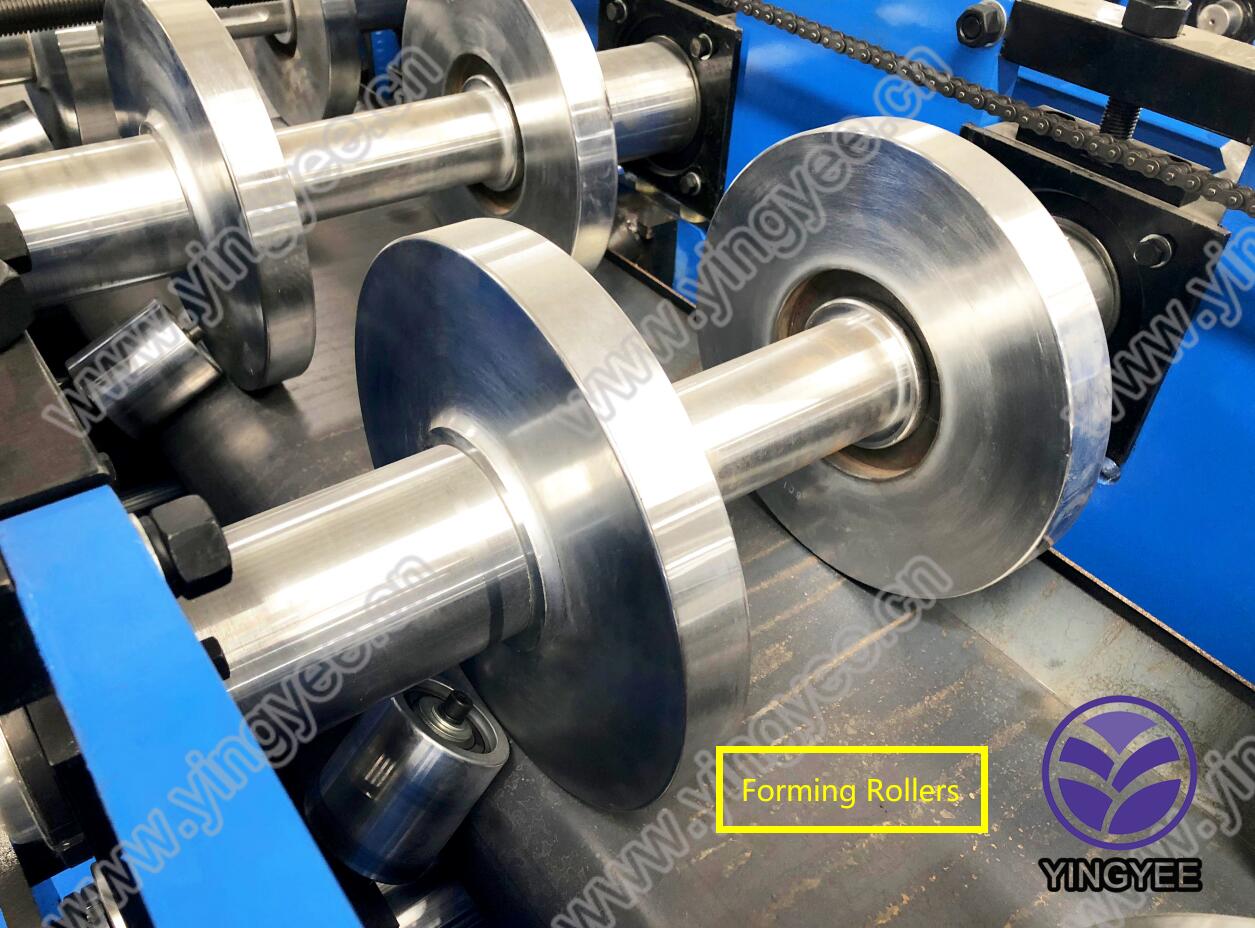

    Quantity of rollers About 18
    Shaft diameter and material 70mm, material is 40Cr
    Material of rollers 45# steel with chromed
    Way of driven chain transmission

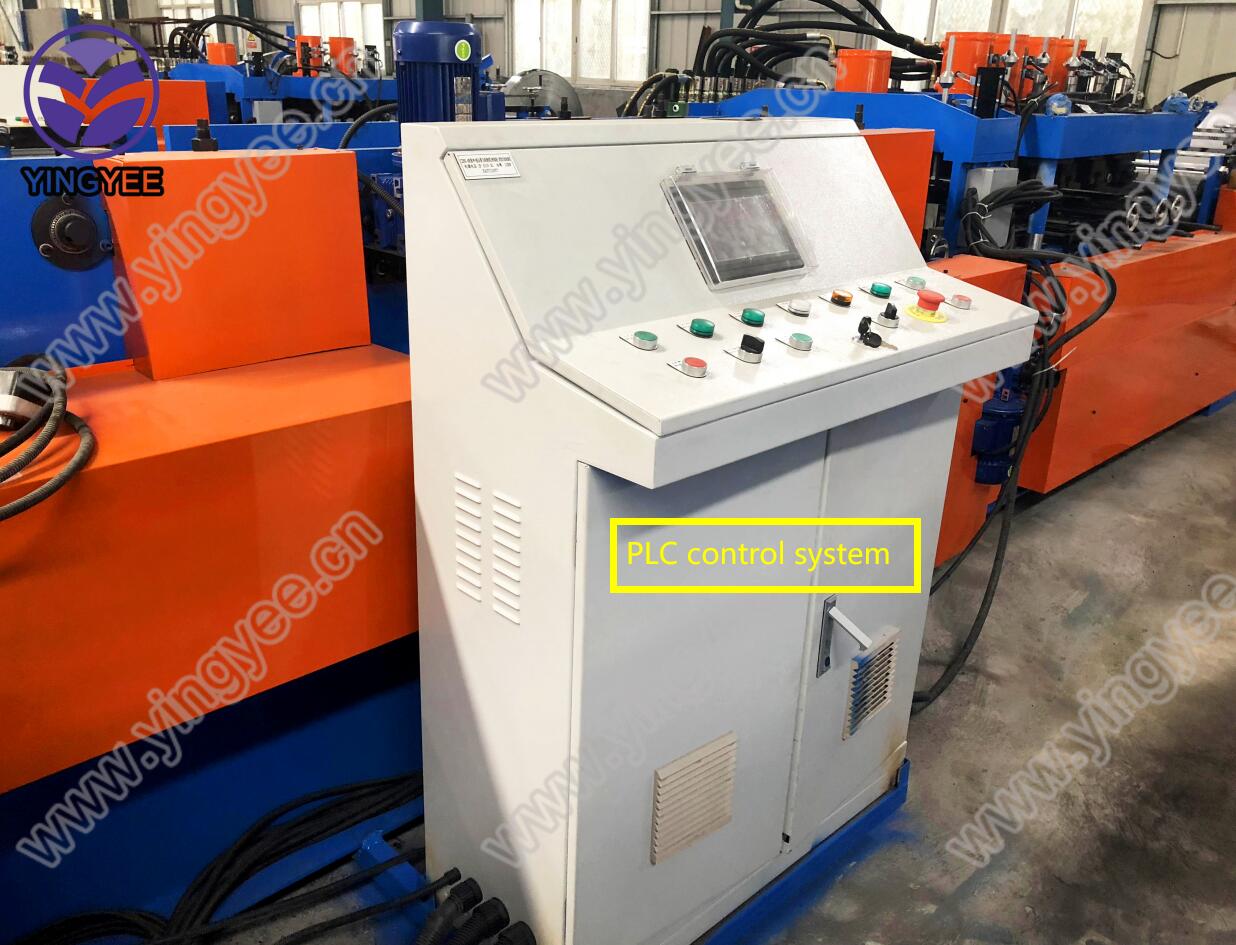

    Controlling system PLC
    Voltage 380V/30Phase/50Hz
    Total weight About 10 tons
    Size of the machine L*W*H 10m*1.2m*1.6m


    Pictures of machine:

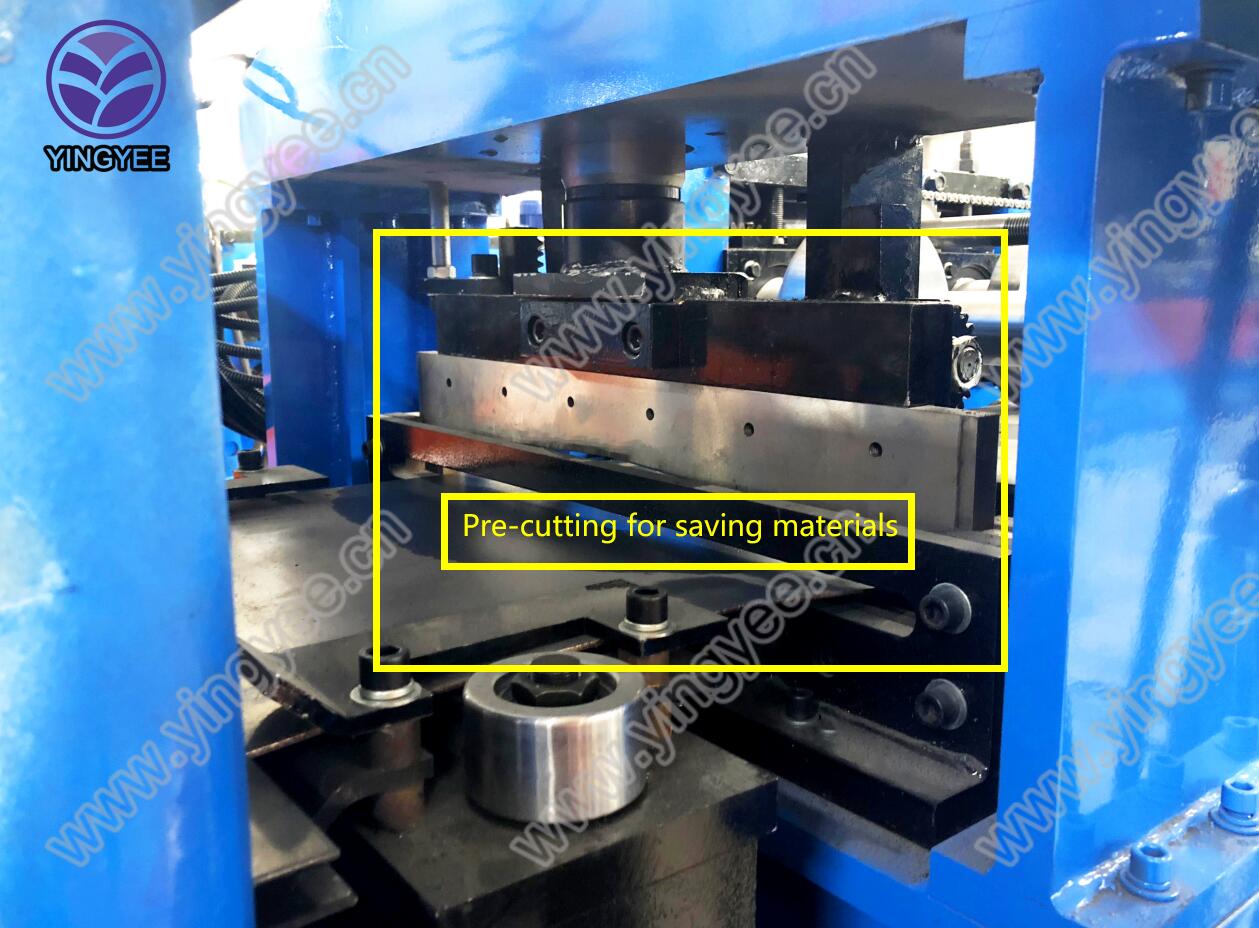

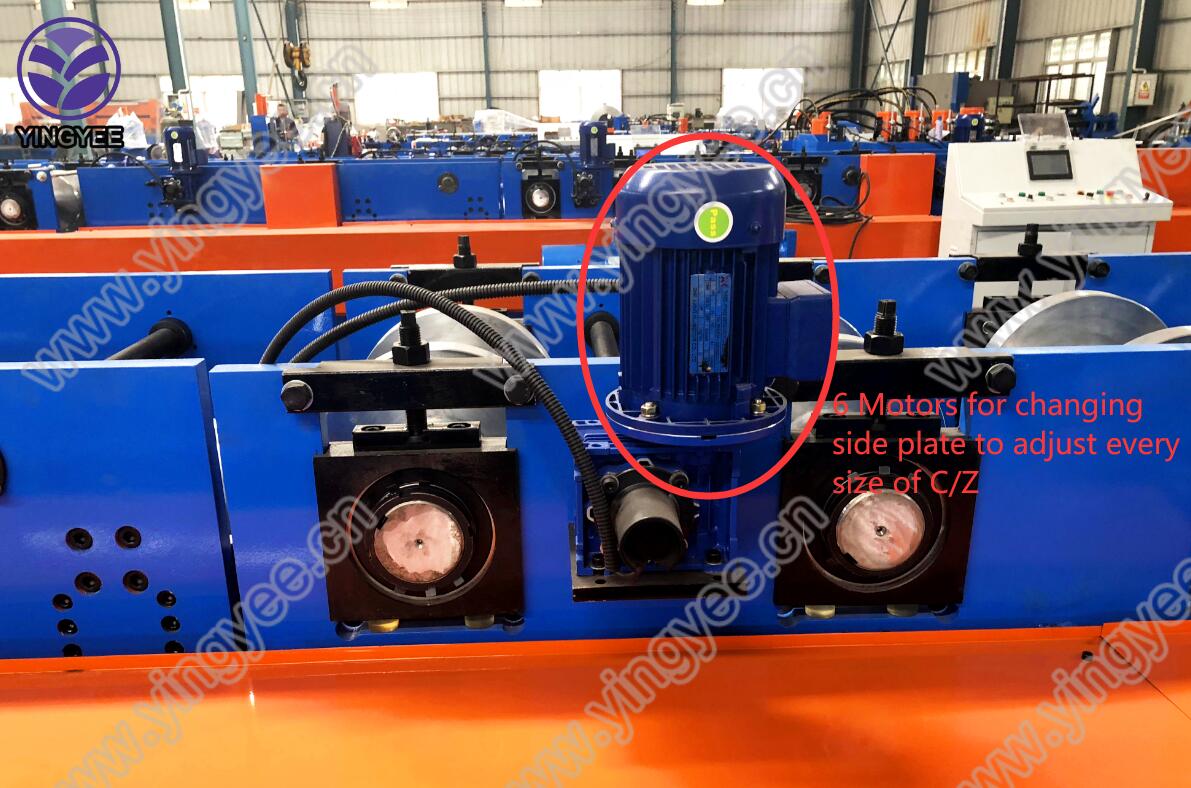

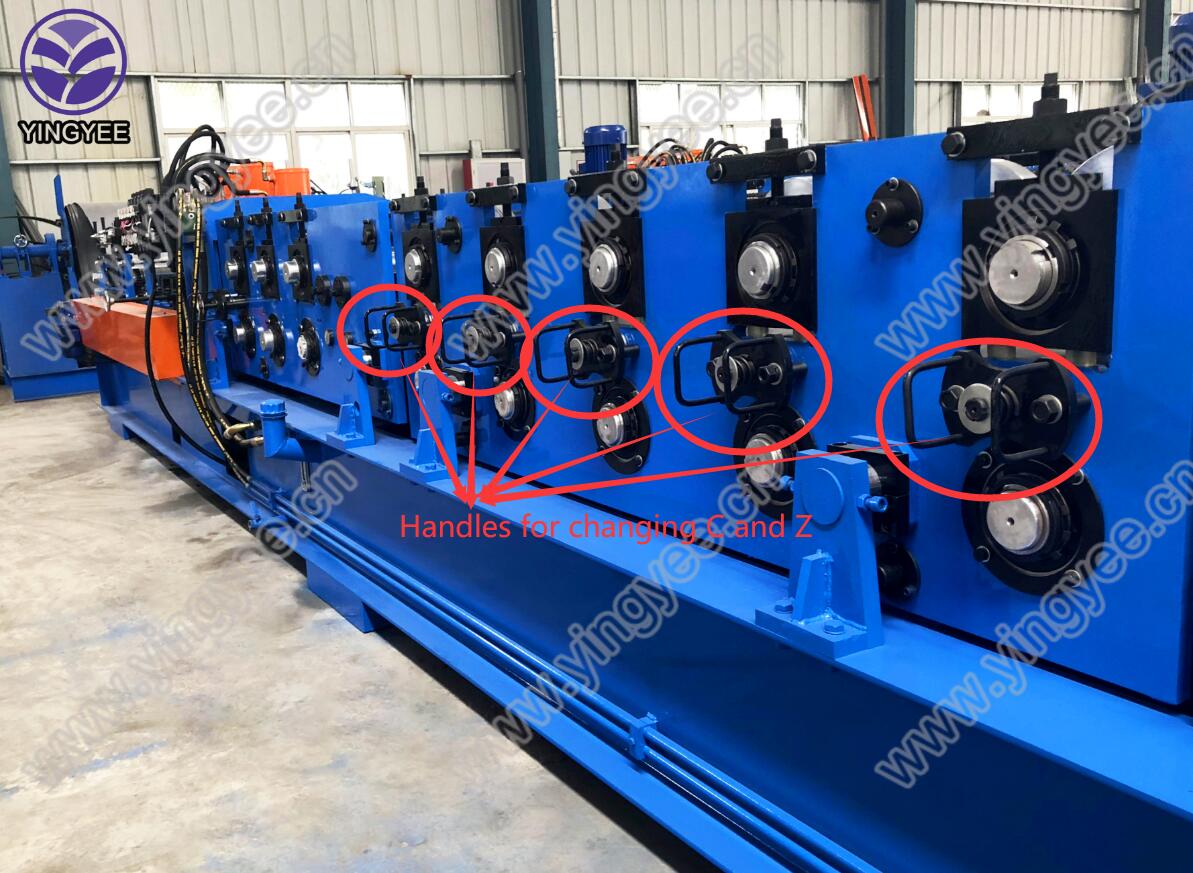

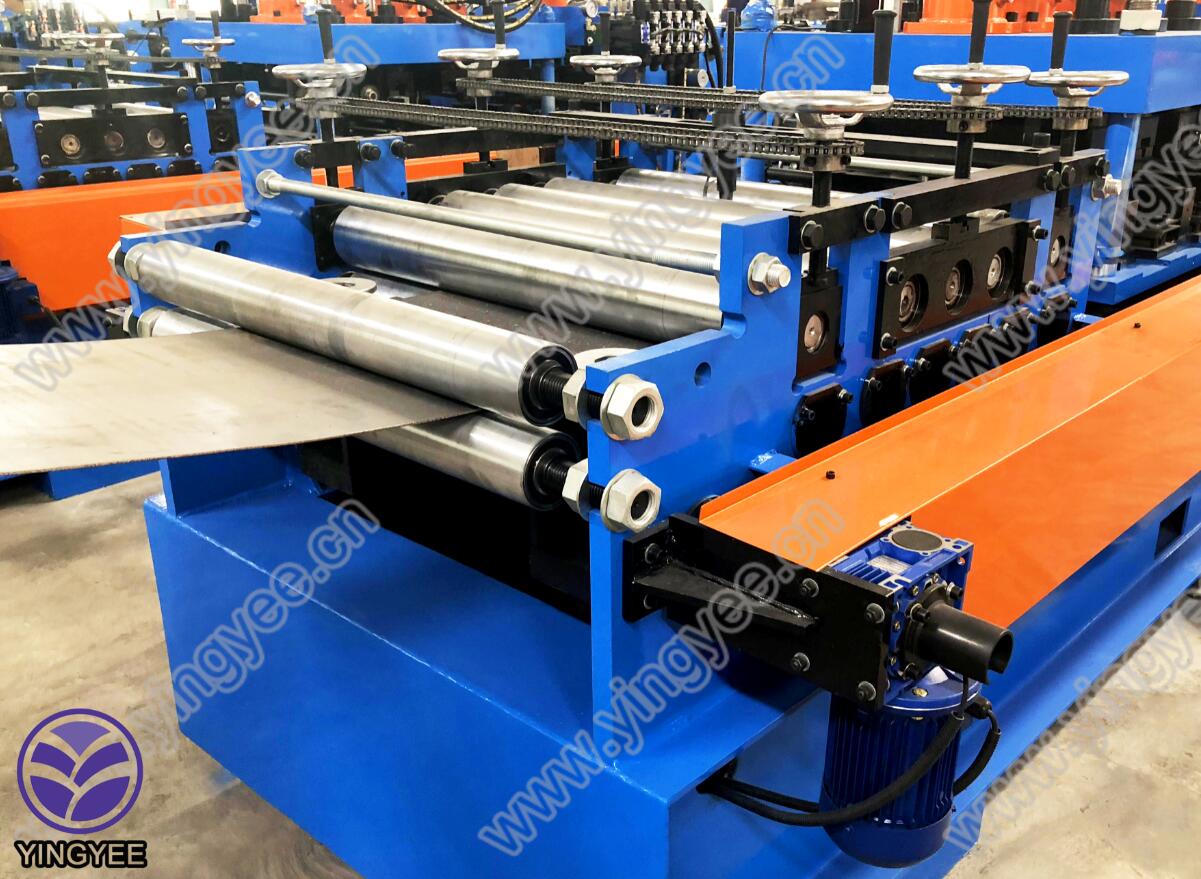

    C/Z purlin roll forming machine C/Z purlin roll forming machine

    C/Z purlin roll forming machine C/Z purlin roll forming machine

    C/Z purlin roll forming machine C/Z purlin roll forming machine

    purlin purlin

    purlin purlin

    C/Z purlin roll forming machine

    C/Z purlin roll forming machine



    Company information:


    YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

    • Roof roll forming machine
    • Roller Shutter Door Roll Forming Machine
    • C and Z purlin roll forming machine
    • Downpipe Roll Forming Machine
    • Light Keel Roll Forming Machine
    • Shearing Machine
    • Hydraulic decoiler
    • Bending machine
    • Slitting machine



    Training and Installation :
    1. We offer installation service local in paid, reasonable charge.
    2. QT test is welcome and professional.
    3. manual and using guide is optional if no visiting and no installation.

    Certification and after service:

    1. Match the technology standard, ISO producing certification
    2. CE certification
    3. 12 months warranty since the delivery. Board.

    Our advantage:

    1. Short delivery period
    2. Effective communication
    3. Interface customized.


    Looking for ideal Automatic C/Z/U Purlin Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Switch Easily C/Z Purlin Forming Machine are quality guaranteed. We are China Origin Factory of Cost Savings C/Z Purlin Making Machine. If you have any question, please feel free to contact us.

    Product Categories : C/Z/U Purlin Changeable Roll Forming Machine
