Storage rack beam machine

Basic Info Type:
inquire now

Product Detail

Basic Info

Type:Steel Frame & Purlin Machine

Warranty:12 Months

Delivery Time:30 Days

Material:GI, PPGI, Aluminum Doils

Speed:25-30m/min(excluding Punching And Cutting Time)

Control System:PLC

Way Of Driven:Chain Transmission

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

After Service:Engineers Available To Service Machinery Overseas

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

Product Description

Storage rack beam machine

With the production advantage of the Rack Beam roll forming machine, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:

Raw material	Colored steel, Galvanized steel
Material thickness range	1.5-3.0mm
Rollers	18-24 rows(according to drawings and size)
Material of rollers	45# steel with chromed
Shaft diameter and material	80mm, material is 40Cr
Material of cutting blade	Cr12 mould steel with quenched treatment
Forming speed	15-20m/min(excluding cutting time)
Way of driven	Chain transmission or Gear box
Controlling system	Siemens PLC
Total power	8KW
Voltage	380V/3Phase/50Hz or at buyer’s request

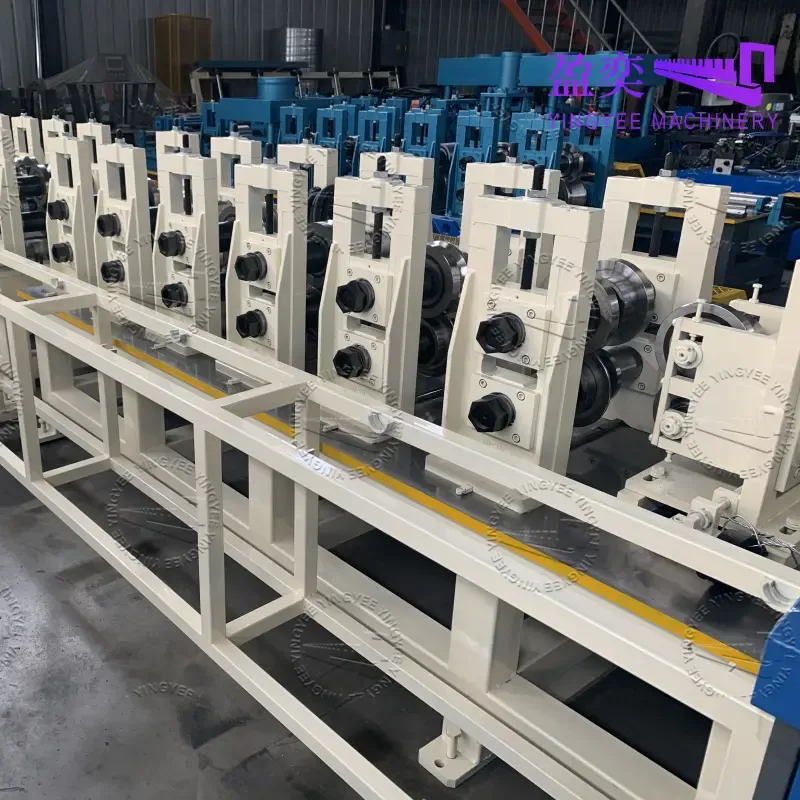

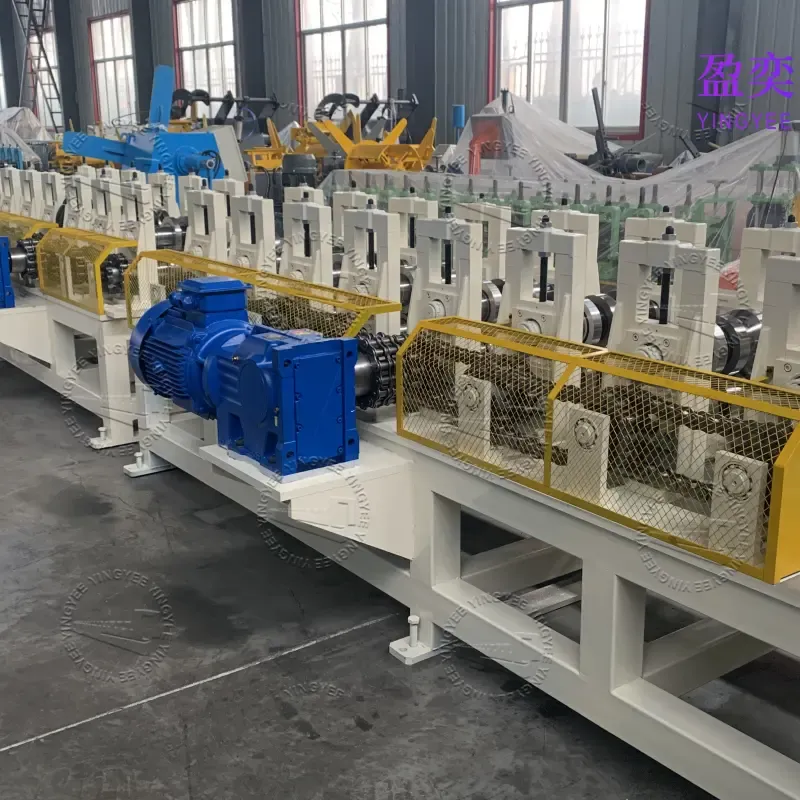

Pictures of machine:

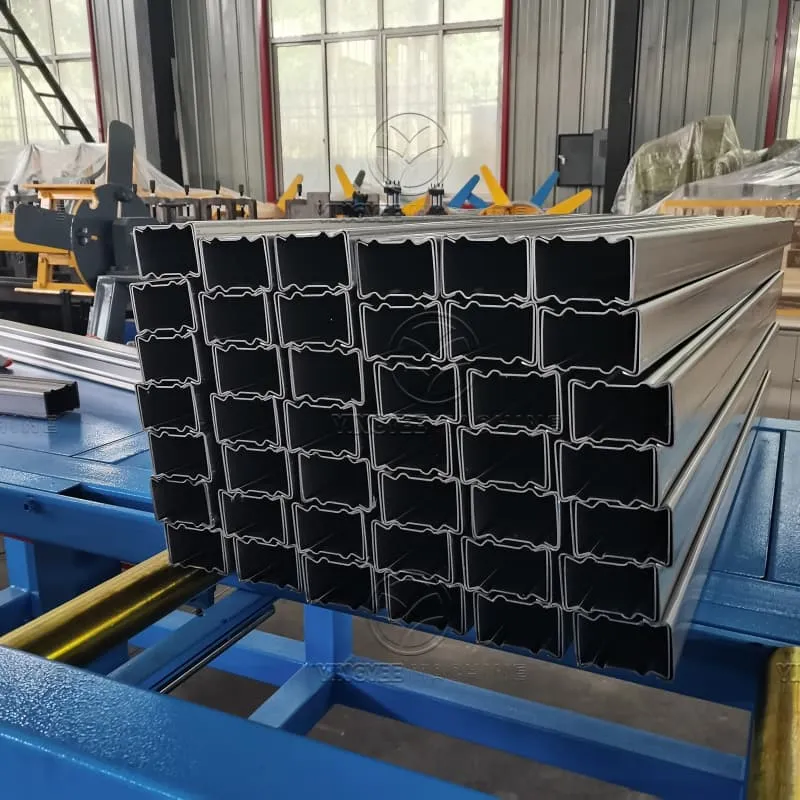

Beam

Related Products
Full automatic storage box beam roll forming machine

Automatic size changing

Automatic folding

automatic transfer and combining

Line speed: 20m/min

Only need one worker to operate.

Automatic size changing storage beam roll forming machine with auto folding and combine system

One machine can do different size of beam, save space, save worker, save money, full automatic.

Automatic size change storage racking roll forming machine

1. 10m/min or 20m/min different speed can be choose. 2. Automatic size changing or Change cassette optional. 3. Gear box driven optional, much stable, big power and long life 4. Hydraulic track moving cut, no speed loss. 5. with automatic stacker machine, one people can operate the hole line.

Storage racking roll forming machine with good effect

The storage rack forming machine is a full-automatic production line, which can do heavy rack with a maximum thickness of 3mm.
