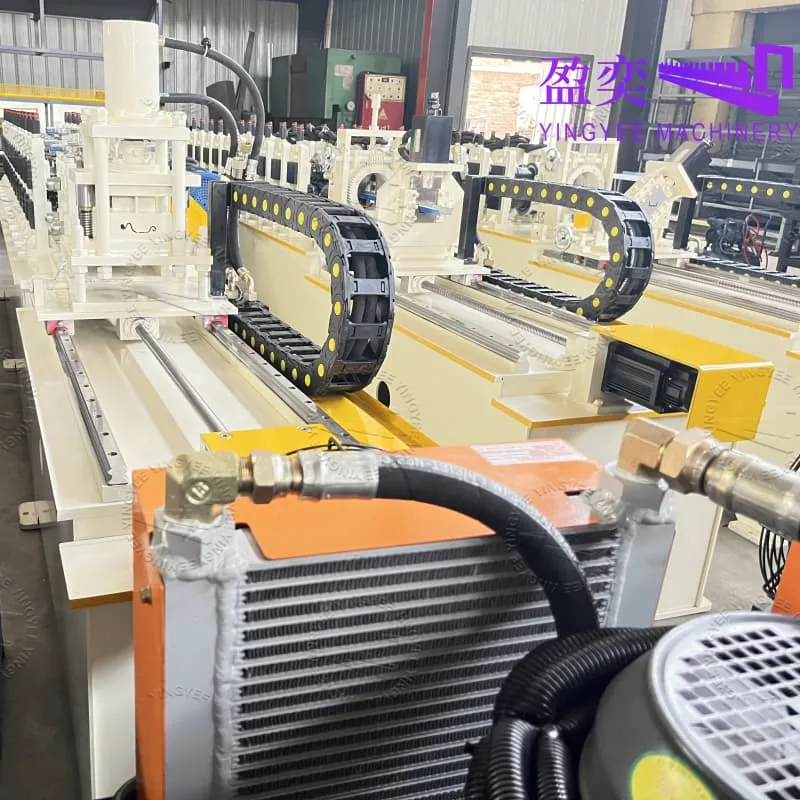

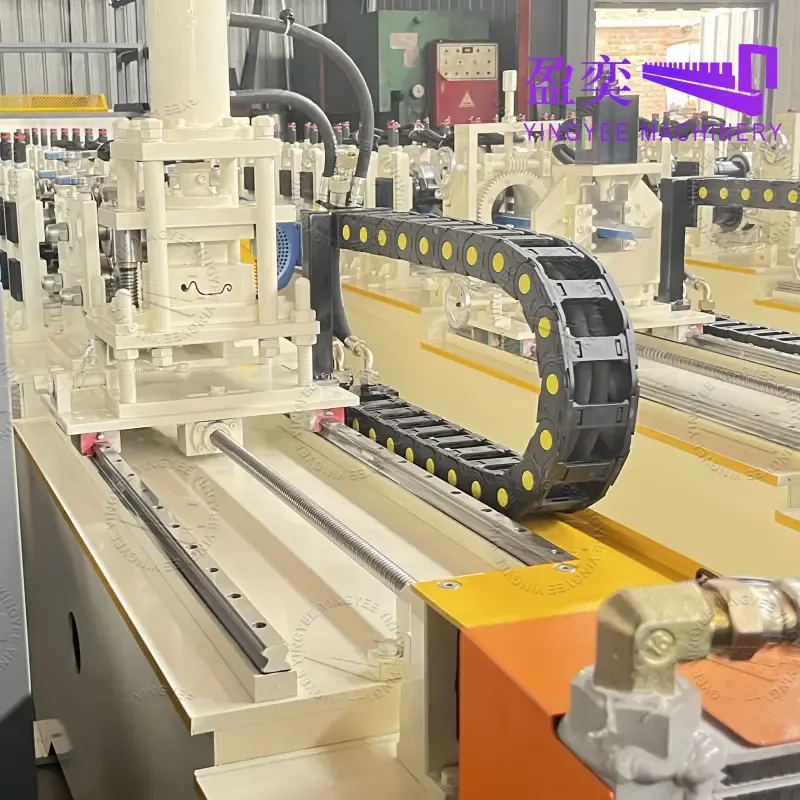

For this machine, torrist structure, the forming roller has high machining accuracy, and the roller's material is Cr12 with high precision work ，heat treatment, uselife is longer

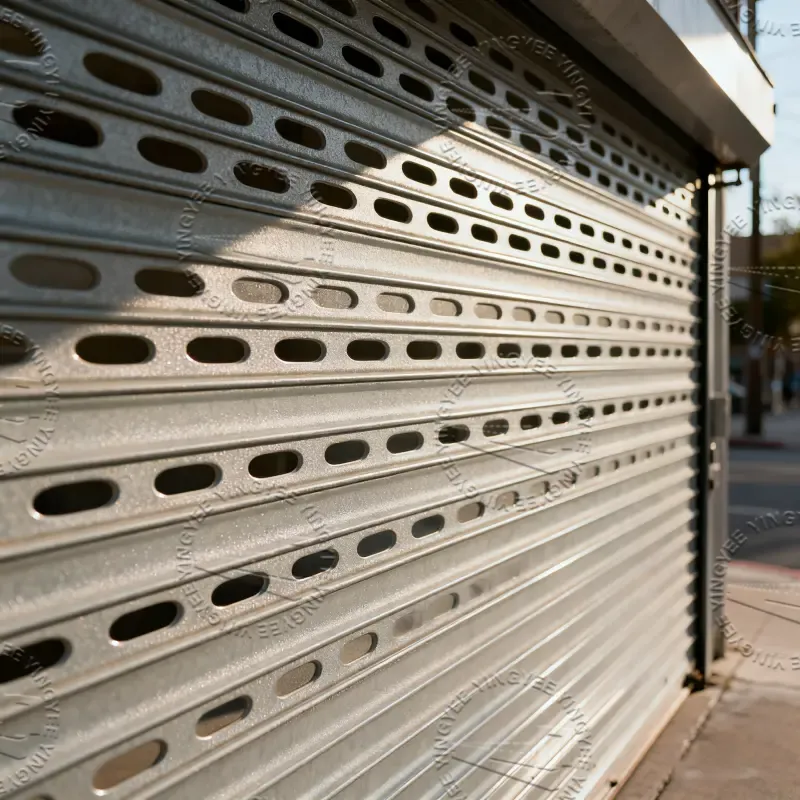

Special design of oval hole , 3 stations of punching, edging and flanging at the same time, accurate hole size (152 * 25MM), accurate punching position, no half hole, flanging does not hurt finger.
Enwere ike ịtọ ogologo slat ahụ n'amaghị ama (ma ọ bụrụhaala na ngụkọta ogologo dabara na ọnụ ọgụgụ oghere)
Jiri gia + yinye, 11kw + 5.5kW moto okpukpu abụọ, yana ọdụ hydraulic nwere tank nchekwa ike.
Ebipụ nsochi, ọsọ nwere oghere 5m / min, ọsọ na-enweghị oghere 9m / min
We supply PLC adjust guide and video, and we have experienced engineers they know how to deal with installation and other issues.
Nnwale igwe tupu mbupu, nye vidiyo na slat ikpeazụ maka nkwenye.
Nke a bụ akụkụ igwe:
|
3 tọn akwụkwọ ntuziaka de-coiler
|
Inner dia: Ø440mm– Ø560mm Max input feeding: 600mm Capacity: 3Tons
|
|
Nri na nduzi ihe
|
Usoro nduzi nwere ọtụtụ rollers, na obosara n'etiti ha nwere ike ijikwa rollers ntuziaka.
|
|
Akpụ akụkụ
|
1. Matching material: color plate，Galvanized steel
2. Material thickness range: 0.65mm-1.0mm
3. Main motor power: 11kw
4. Hydraulic power: 5.5 kw，servo motor:2.3kw
5. Quantity of stands: 12 rollers
6. Shaft Material and diameter: ￠50mm, 45# steel .
7. Product:any length with oval hole
8..Tolerance: 3mm+/-1.0mm
9.oval oghere nha: 152*25mm
10.Controlling system: PLC system
11.Material nke akpụ rollers: CR12
12.speed na oghere 5m / min, ọsọ na-enweghị oghere 9m / min
13.Hydraulic ọdụ na ike nchekwa tank
14.servo moto maka ịkpụ
15.okpokoro nnata
16.transfer method:Sprocket drive
17. accumulator 208v 60Hz 3 nkebiokwu
|
|
Sistemụ hydraulic
|
A na-achịkwa ya site na mgbapụta mmanụ mmanụ gia. Mgbe emejuchara mmanụ hydraulic n'ime tank mmanụ hydraulic, mgbapụta ahụ na-ebugharị igwe cutter ka ịmalite ọrụ ịkpụ.
Ngwa egwuregwu ： Usoro na-agụnye set nke hydraulic tank , otu set nke hydraulic mmanụ mgbapụta, abụọ hydraulic pipes.and abụọ setịpụ electromagnetism valves.
Ike nke mgbapụta mmanụ: 3kw mmanụ hydraulic: 40 #
|
|
PLC njikwa
|
Ntụ ogologo akpaaka akpaka ọnụọgụ ọnụọgụ
Kọmputa eji ejikwa ogologo & ọnụọgụ. Igwe
ga-egbutu ogologo oge na-akpaghị aka ma kwụsị mgbe a na-enweta ọnụọgụ achọrọ
|
|
Ịcha hydraulic
|
(1) Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.
(2) Material of blade: CR12with heat treatment
(3) Length measuring: Automatic length measuring
|
